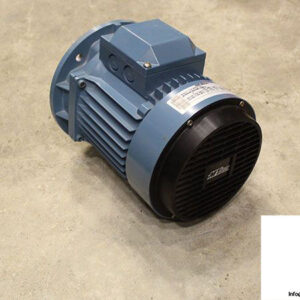

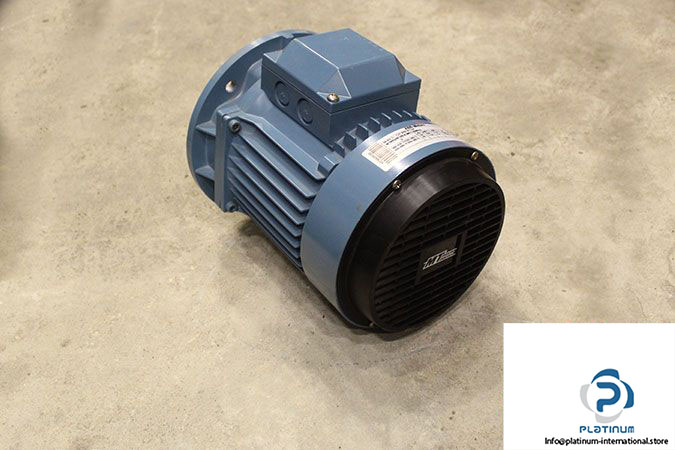

ABB MT90S24F165-6 MK110069-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

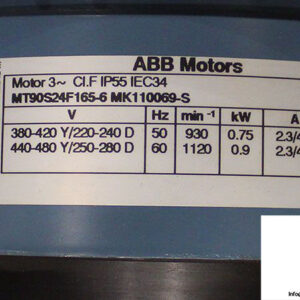

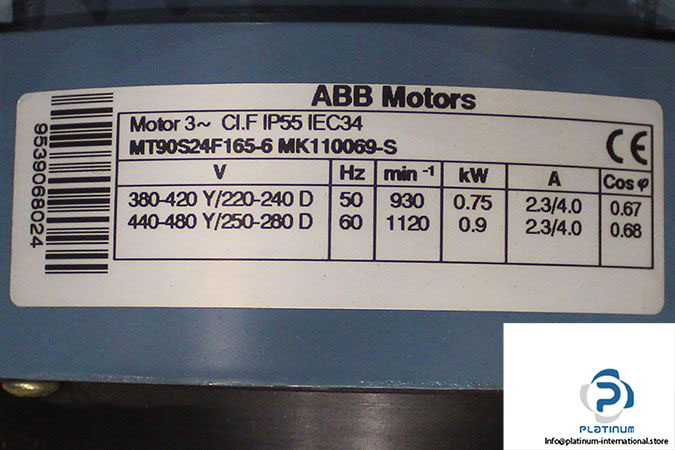

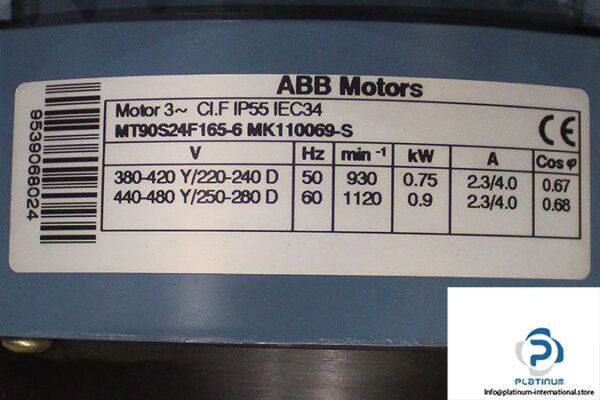

Model: MT90S24F165-6MK110069-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 930 min^-1

Rated Power: 0.75 kW

Power Factor: 0.67

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1120 min^-1

Rated Power: 0.45 kW

Power Factor: 0.68

Rated Current (Star): 2.3 A

Rated Current (Delta): 4.0 A

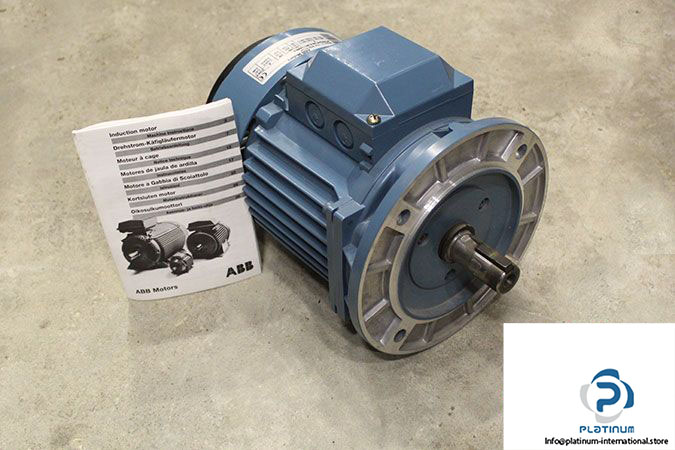

Flange Diameter: 200 mm

Shaft Diameter: 24 mm

Flange Diameter: 200 mm

Number of Poles: 6

Motor Size: 90S

Protection Class: IP55

Insulation Class: F

Weight: 12.22 kg
