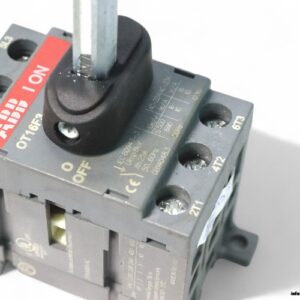

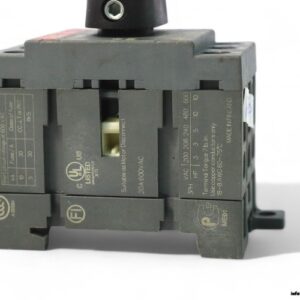

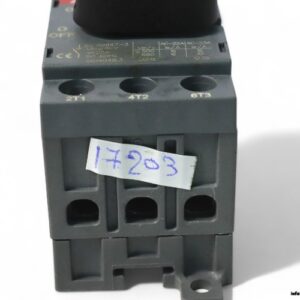

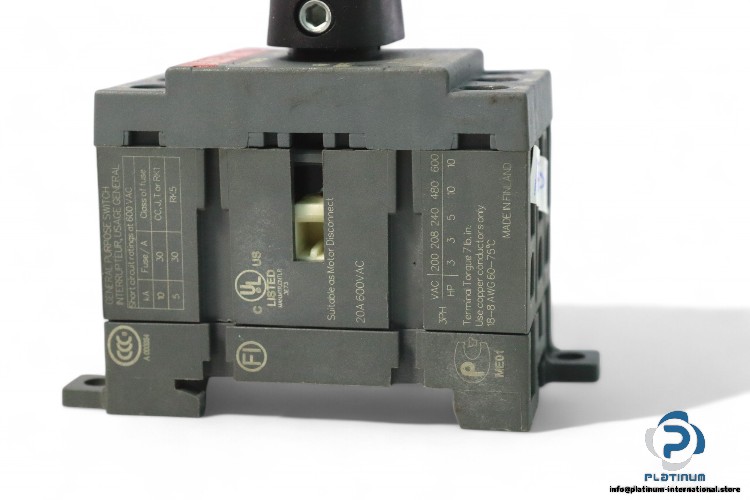

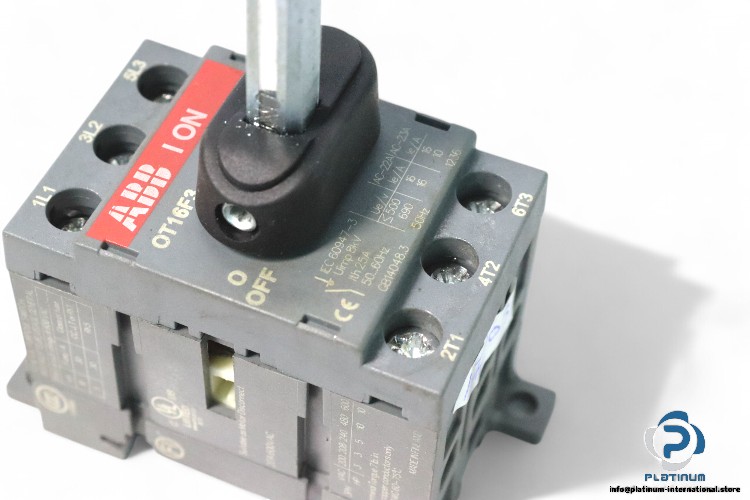

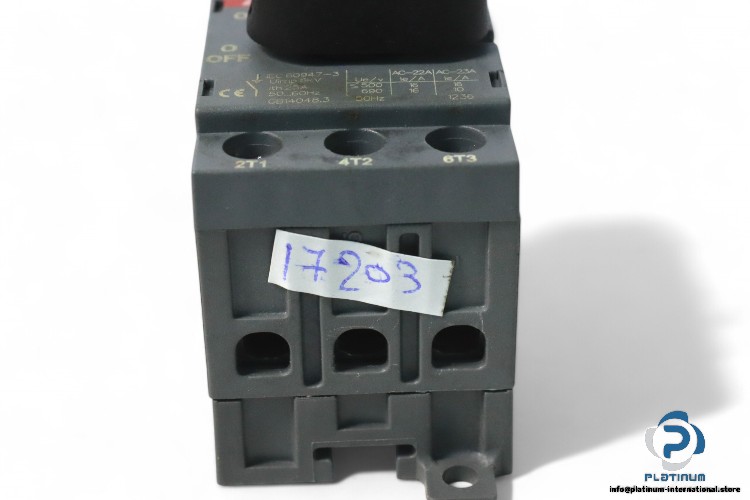

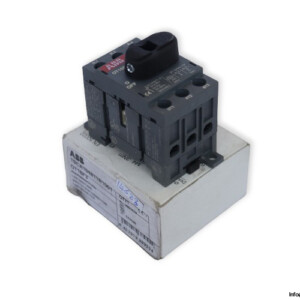

ABB OT16F3 Switch Disconnector

ABB Switch Disconnector (Model: OT16F3)

The ABB Switch Disconnector (Model: OT16F3) is designed to ensure reliable switching and disconnection of electrical circuits. It features a rated operational voltage of 750 V and a thermal current of 25 A. This switch disconnector is UL/CSA rated for 20 A at 600 VAC and offers different operational current ratings depending on the application, including 16 A at 500 V and 10 A at 690 V. The device provides strong protection with a rated impulse withstand voltage of 8 kV and a rated short-circuit making capacity of 0.71 kA at 690 V. It is also equipped with a rated conditional short-circuit current of 50 kA, making it suitable for demanding environments. The switch operates at a service frequency of 50 to 60 Hz and conforms to IEC 60947-3 standards. With a 3-pole design and an IP20 protection degree, the OT16F3 offers a compact solution with dimensions of 35 x 68 x 56 mm.

• Manufacturer: ABB
• Type: Switch Disconnector
• Model: OT16F3
• Order Code: 1SCA104811R1001
• Rated Operational Voltage Main Circuit: 750 V
• Thermal Current Ith: 25 A
• Ampere Rating UL/CSA: 20 A, 600 VAC
• Rated Operational Current AC-22A: 16 A at 500/690 V
• Rated Operational Current AC-23A: 16 A at 500 V, 10 A at 690 V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Rated Short-Circuit Making Capacity (Icm): 0.71 kA at 690 V
• Rated Conditional Short-Circuit Current (Inc): 50 kA
• Rated Short-Time Withstand Current (Icw): 0.5 kA for 1 s
• Service Frequency: 50 / 60 Hz
• Standards: IEC 60947-3
• No. of Poles: 3 Poles

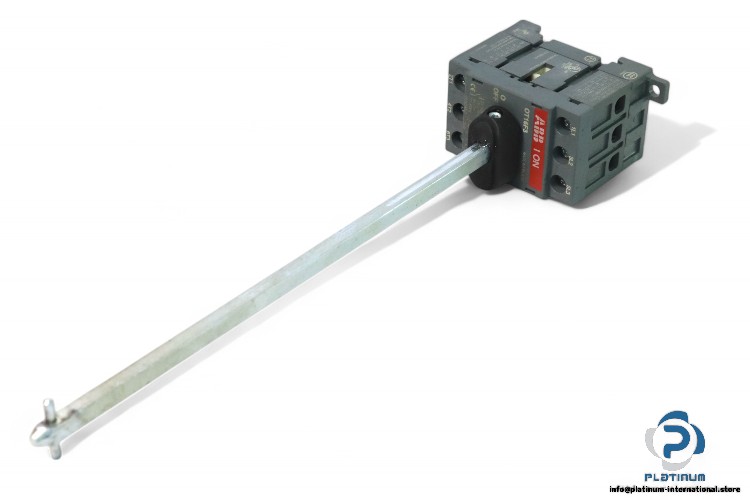

• Handle Type: Knob (handle and shaft not included)
• Protection Degree: IP20
• Dimensions (W x D x H): 35 x 68 x 56 mm
