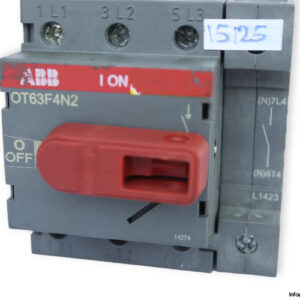

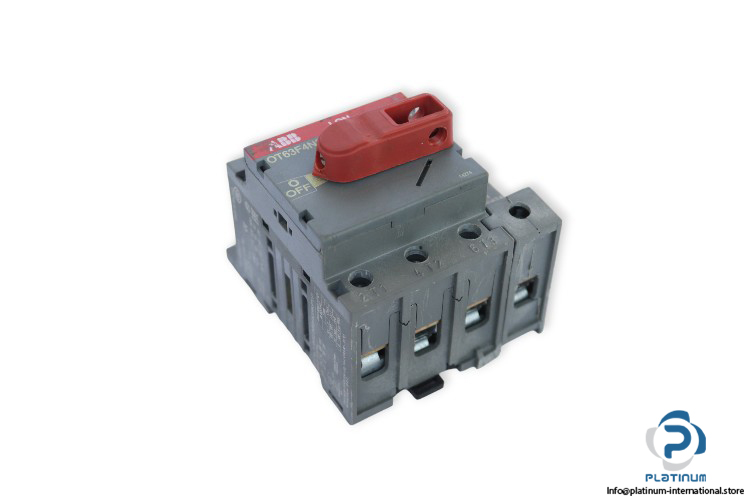

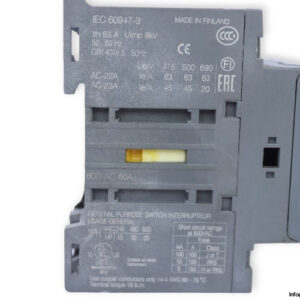

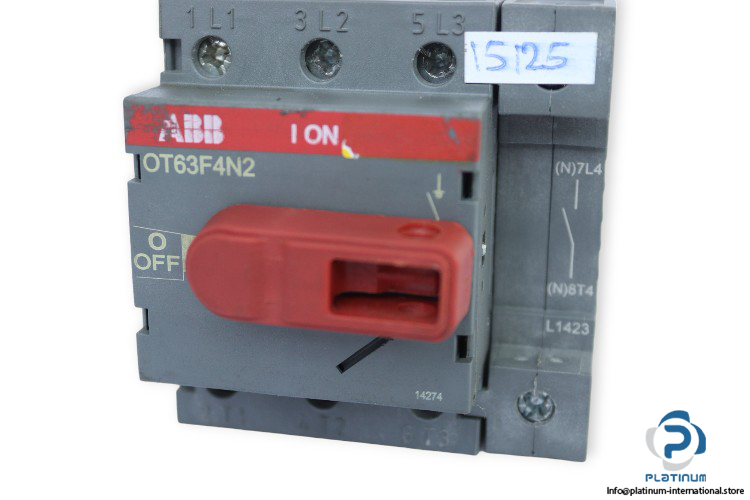

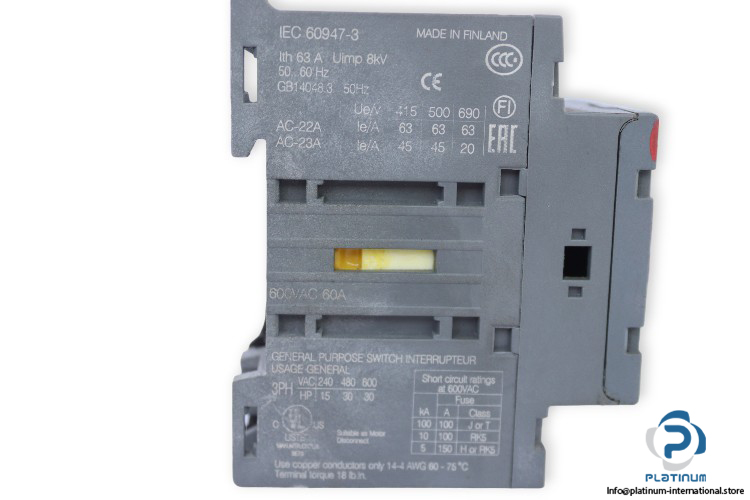

ABB OT63F4N2 Switch-Disconnector
Manufacturer: ABB
Type: Switch-Disconnector
Model: OT63F4N2
Rated Operational Current AC-22A (Ie): 63 A (415 … 690 V)
Rated Operational Current AC-23A (Ie): 45 A (415 … 500 V)
Rated Operational Current AC-23A (Ie): 20 A (690 V)
Rated Operational Power AC-23A (Pe):
(220 … 240 V) 11 kW
(400 … 415 V) 22 Kw
Frequency: 50/60 Hz
Standard: IEC 60947-3
General use: 600 V AC,60 A
Conventional Free-air Thermal Current (Ith): 63 A
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 750 V
Rated Short-Circuit Making Capacity (Icm): 2.1 kA (690 V)
Rated Short-time Withstand Current Low Voltage (Icw): 1.5 kA for 1 s
Power Loss: 2.8 W
Pollution Degree: 3
Handle Type: Knob
Fourth Pole Position: Right Side
Mounting Type: Base mounting
Terminal Type: Screw Terminals
Tightening Torque: 2 N·m
Number of Poles: 4
Degree of Protection: Front IP20
Dimensions: 70 x 91.5 x 72.5 mm
