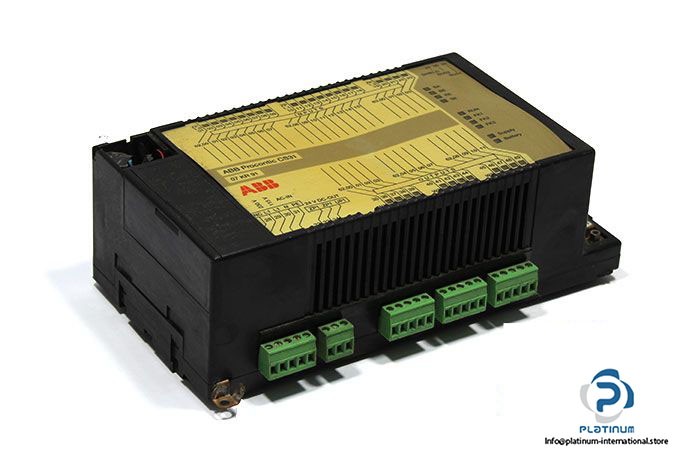

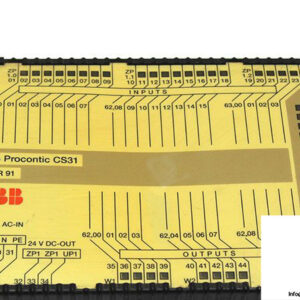

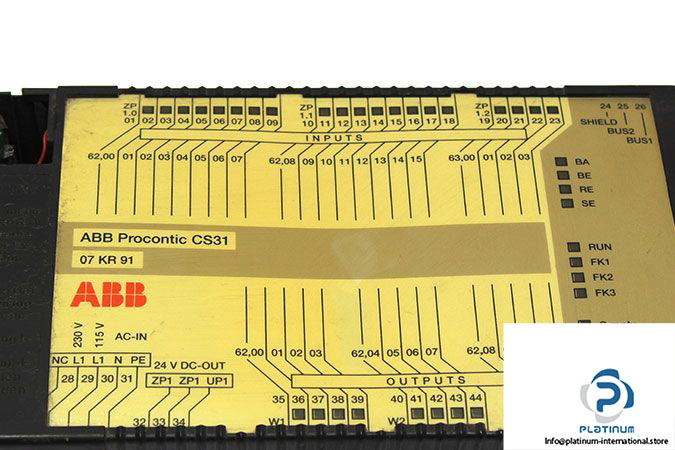

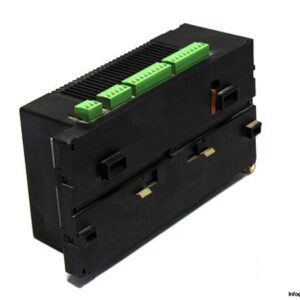

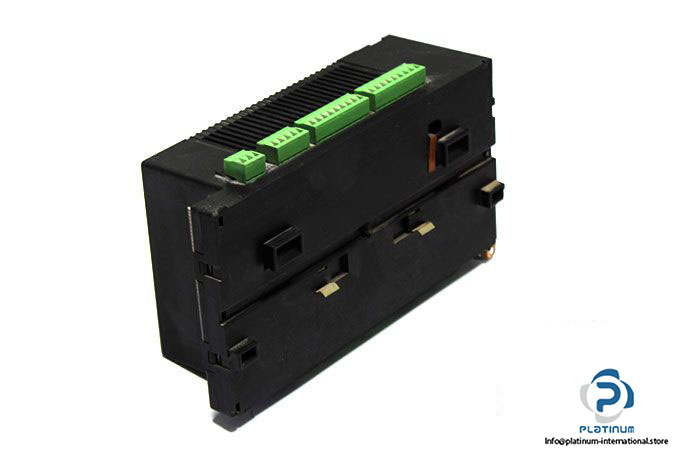

ABB Procontic CS31 07KR91 Intelligent Decentralized Automation System

Manufacturer: ABB

Type: Intelligent Decentralized Automation System

Model: PROCONTIC CS 31

Central Unit: 07 KR 91

Input Voltage: 115…230 V AC

Output Voltage: 24 VDC

Current Consumption: max. 0.4 A

Power Dissipation: max. 20 W

Number of Binary Inputs: 20

Number of Binary Relay Outputs: 12

Number of Channels Per Module: 20

Integrated Memory: Flash EPROM 32 kB / RAM 256 kB

Resolution of The Integrated Real-Time Clock: 1 Second

Counting Frequency: max. 10 kHz

Number of Bit Flags: 4096

Number of Word Flags: 4096

Number of Double Word Flags: 512

Operating Temperature: 0…55 °C

Protection Class: IP20

Dimensions: 240 x 140 x 85 mm

Weight: 1.30 kg
