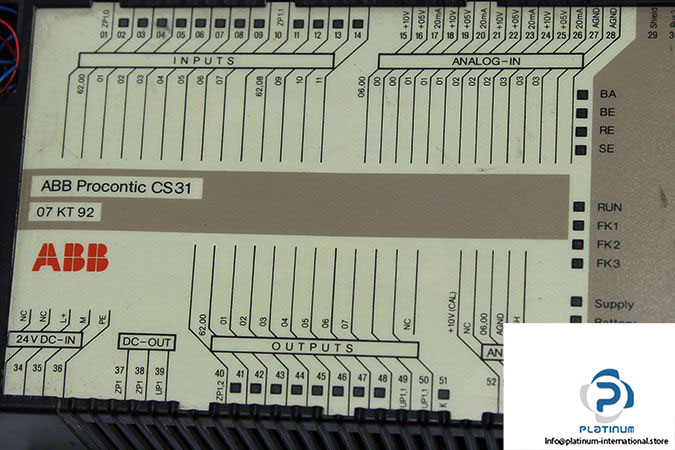

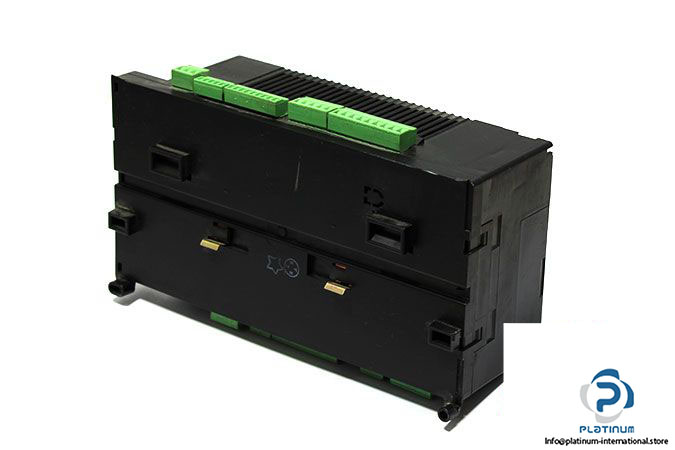

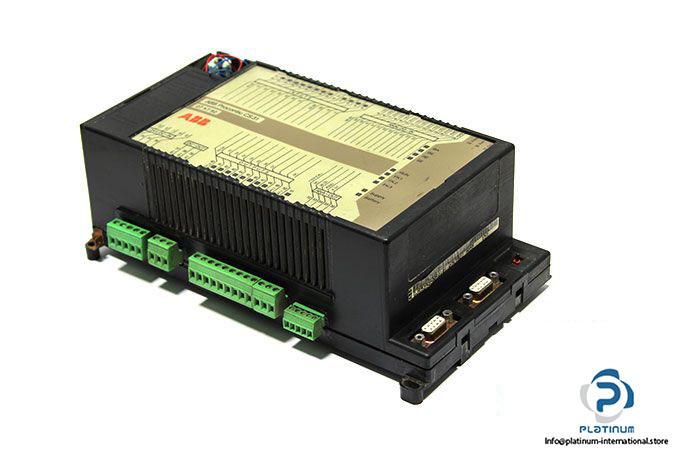

ABB Procontic CS31 07KT92 Intelligent Decentralized Automation System

Manufacturer: ABB

Type: Intelligent Decentralized Automation System

Model: PROCONTIC CS 31

Central Unit: 07 KT 92

Rated Supply Voltage: 24 VDC

Current Consumption: max. 0.3 A / 0.35 A

Number of Binary Inputs: 12

Number of Binary Transistor Outputs: 8

Number of Analog Inputs: 4

Number of Analog Outputs: 1

Integrated Memory: Flash EPROM 128 kB (60 kB program + 60 kB user data) / RAM 256 kB (30 kB program with online programming or 60 kB program without online programming)

Resolution of The Integrated Real-Time Clock: 1 Second

Counting Frequency: max. 50 kHz

Number of Bit Flags: 4096

Number of Word Flags: 4096

Number of Double Word Flags: 512

Operating Temperature: 0…55 °C

Protection Class: IP20

Dimensions: 240 x 140 x 85 mm

Weight: 0.76 kg
