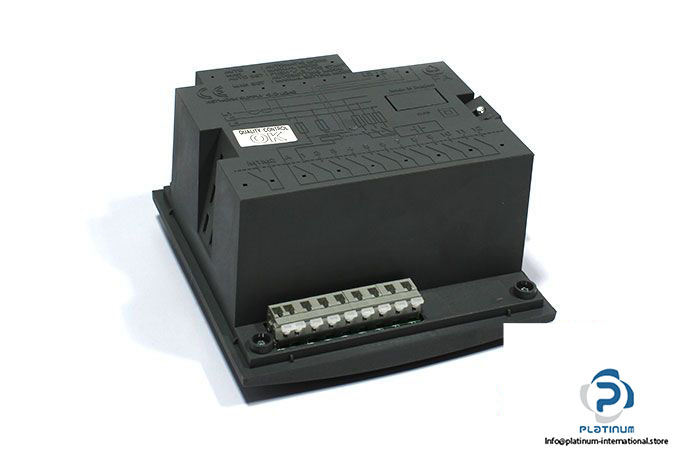

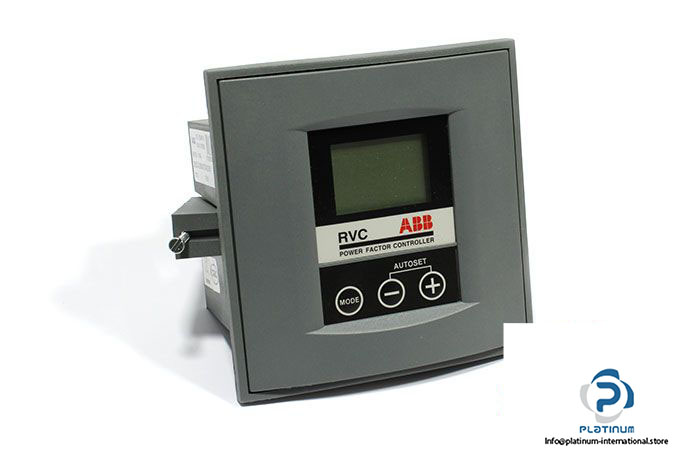

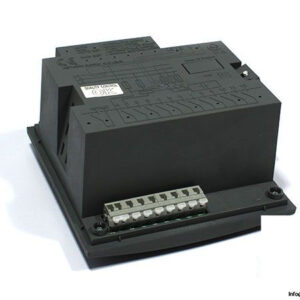

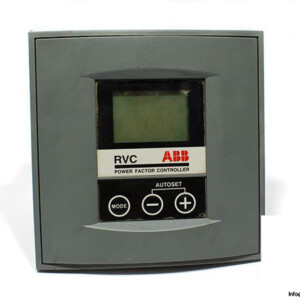

ABB RVC6 – 1/5A Power Factor Controller

Manufacturer: ABB

Type: Power Factor Controller

Model: RVC6-1/5A

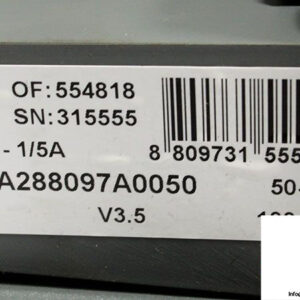

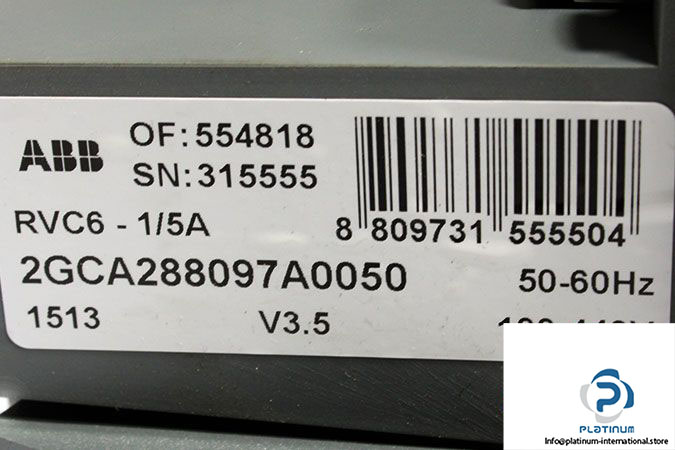

MRN: 2GCA288097A0050

Measuring system: Micro-Processor System for Balanced Three Phase Networks or Single-Phase Networks

Operating voltage: 100…240 V AC

Frequency range: 50/60 Hz

Current input: 1A/5A (RMS)

Current input impedance: <0.1 Ohm

Output Contact Rating

• Continuous Current: 1.5A.
• Peak Current: 5A.
• voltage: 440 Vac.
• Terminal A Is Rated for A Continuous Current of 16A.

Consumption: 15 VA max.

Power Outage Reset Delay Time: 40s.

Power Factor Setting: From 0.7 Inductive to 0.7 Capacitive

Operating Temperature: -10…70° C.

Version: V3.5

Contacts: 2 Normally Closed

Number of Outputs: RVC 6: 6

Front Plate Protection: IP40

Connector: WAGO.

Dimensions: 144 x 144 x 80 mm
