ABB S 204M-C50 Miniature Circuit Breaker
ABB S204M-C50 Miniature Circuit Breaker Reliable 4-pole miniature circuit breaker (MCB) with 50A rated current. Designed for industrial use, offering high breaking capacity and compliance with international safety standards.
ABB S204M-C50 Miniature Circuit Breaker
The ABB S204M-C50 is a high-performance Miniature Circuit Breaker (MCB) designed for industrial and commercial electrical protection applications. It offers superior short-circuit and overload protection, ensuring reliable operation in demanding environments.
Key Details:
Manufacturer: ABB
Type: Miniature Circuit Breaker
Model: S204M-C50

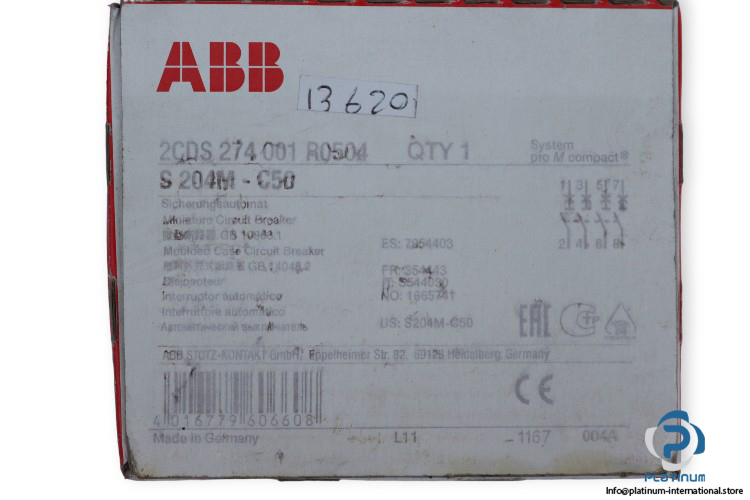

ID No.: 2CDS 274001 R0504
EAN No.: 4016779606608
Designed for reliability, safety, and efficiency, the ABB S204M-C50 ensures electrical circuit protection for industrial applications, meeting global standards.
| Rated Operational Voltage | 400/440 V AC, 12 V AC/DC, 125 V DC |
| Rated Current (In) | 50 A |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Dielectric Test Voltage | 50/60 Hz, 1 min: 2 kV |
| Rated Short-Circuit Capacity | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 15 kA |
| Rated Conditional Short-Circuit Current (Inc) | (400 V) 20 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 7.5 kA |
| Rated Frequency | 50 / 60 Hz |
| Power Loss | 13 W |
| Number of Poles | 4 |
| Tightening Torque | 2.8 N·m |
| Terminal Type | Screw Terminals |
| Standards | IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077 |
| Pollution Degree | 3 |
| Ambient Air Temperature Operation | -25 to +55 °C |
| Dimensions | 70 x 88 x 69 mm |
