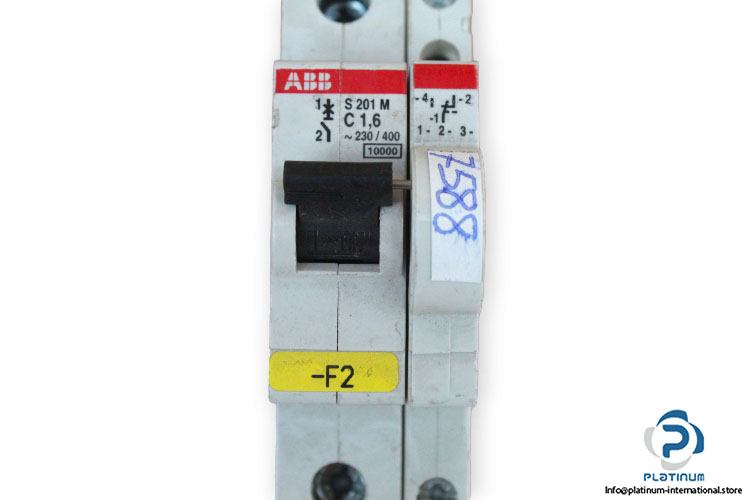

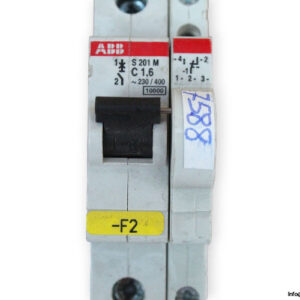

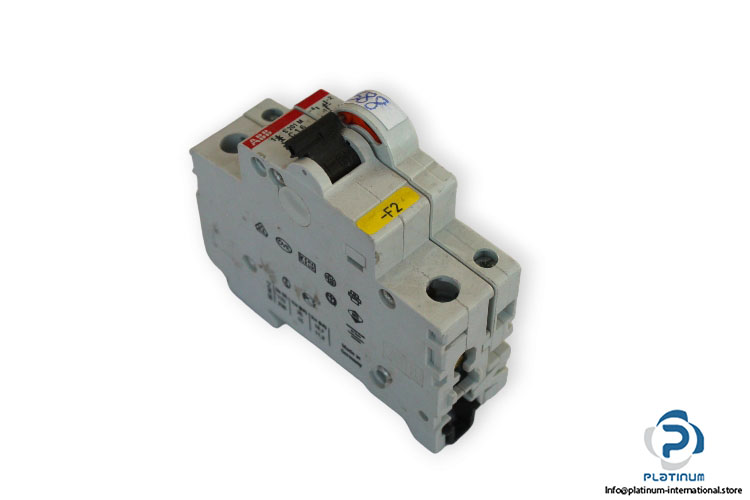

ABB S201M-C1.6 Miniature Circuit Breaker

Manufacturer: ABB
Type: Miniature Circuit Breaker
Model: S201MC16

Function: Protection and Control of the Circuits Against Overloads and Short-Circuits; Protection for Resistive and Inductive Loads with Low Inrush Current.
Rated Voltage: 230 / 400 V AC
Rated Current: 1.6 A
Rated Insulation Voltage: 440 V AC
Frequency: 50 … 60 Hz
Rated Impulse Voltage: 4 kV
Number of Poles: 1-Pole
Rated Short-Circuit Capacity: 10 kA
Rated Short-Circuit Breaking Capacity: 25 kA
Rated Service Short-Circuit Breaking Capacity: 18.8 / 7.5 kA
Protection Class: IP40
Temperature: -25 … 55 °C
Dimensions: 17.5 x 88 x 69 mm
