ABB S202L-C32 Circuit Breaker
Used
In stock1 unitReady to ship
Circuit Breaker
A high-quality double-pole circuit breaker engineered to deliver reliable short-circuit and overload protection with long service life in electrical installations.32AABBBreakerCCircuitCurveDeviceDoubleElectricalEquipmentIndustrialPoleProtectionS200S202L-C32Series
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

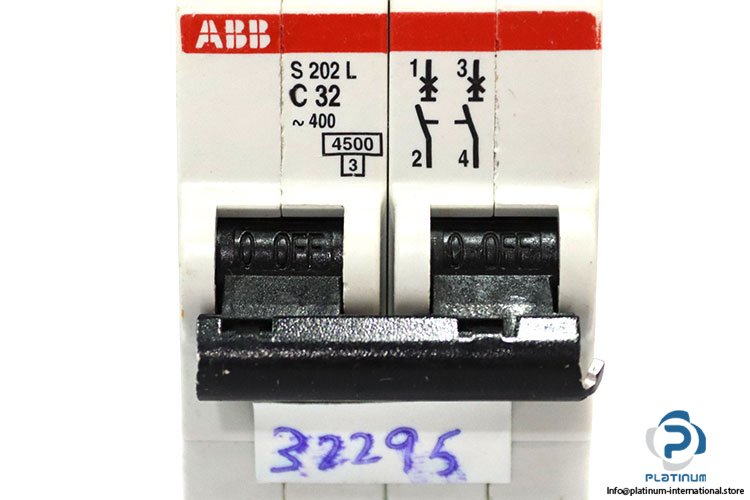

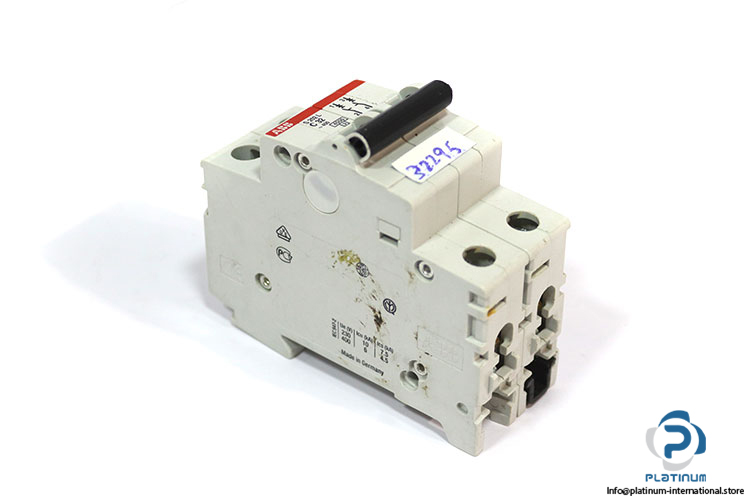

ABB S202L-C32 Circuit Breaker
A high-performance double-pole circuit breaker engineered for reliable protection, safety, and stable operation in residential, commercial, and industrial electrical systems. Designed for consistent overload and short-circuit protection with long mechanical endurance. Manufacturer: ABB
Type: Circuit Breaker
Model: S202L-C32
Series: S200 Series

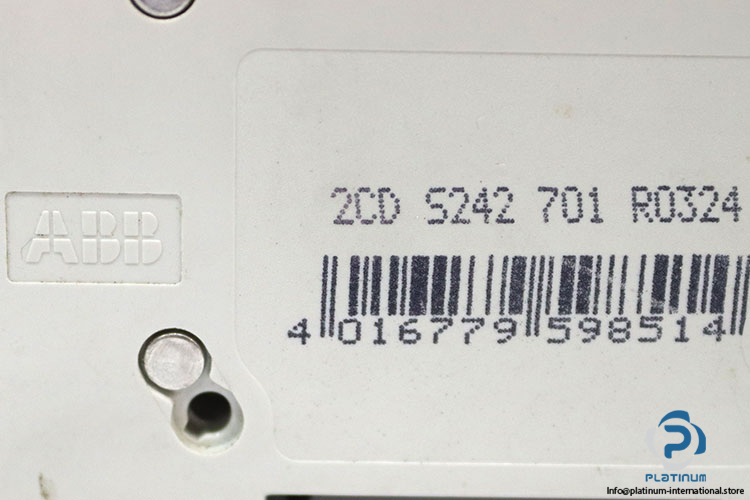

CODE: 2CDS242701R0324
SN: 4016779598514
| Rated Voltage (Ue) | 400 V AC |
| Rated Current | 32 A |
| Characteristic Curve | C-Curve |
| Poles | 2P (Double Pole) |
| Dielectric Test Voltage | 50/60 Hz “ 1 min 2 kV |

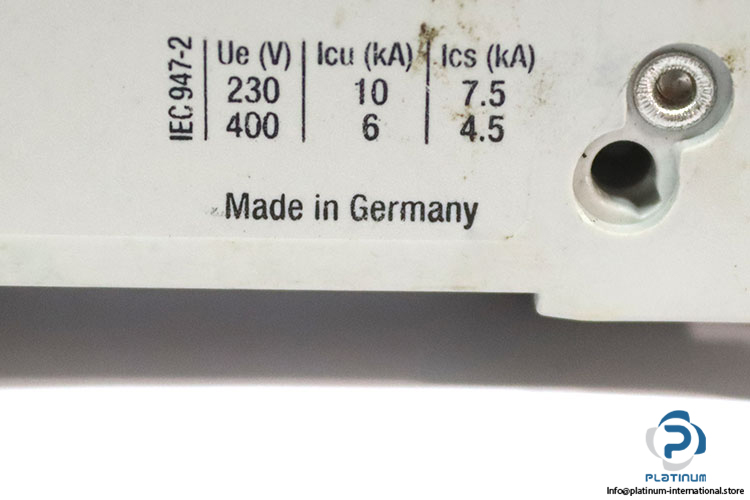

| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA (230 V AC), 6 kA (400 V AC) |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA (230 V AC), 4.5 kA (400 V AC) |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | ON / OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 2.8 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Installation Size | DIN 43880 (1 Module) |
| Wire Stripping Length | 12.5 mm |
| Terminal Type | Screw Terminals |
