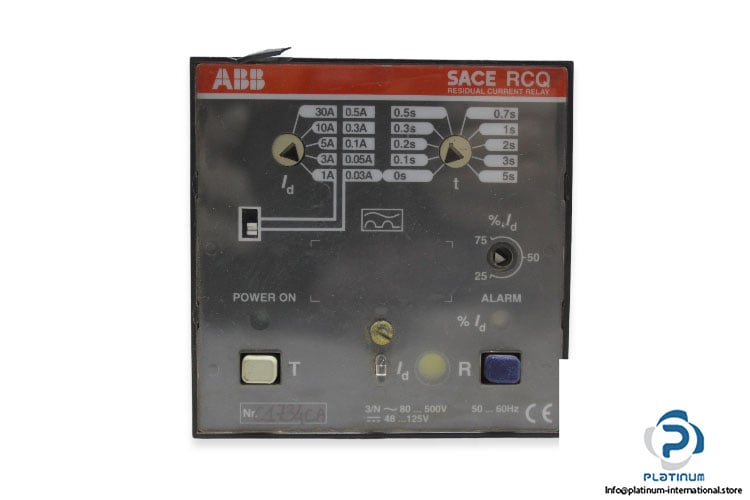

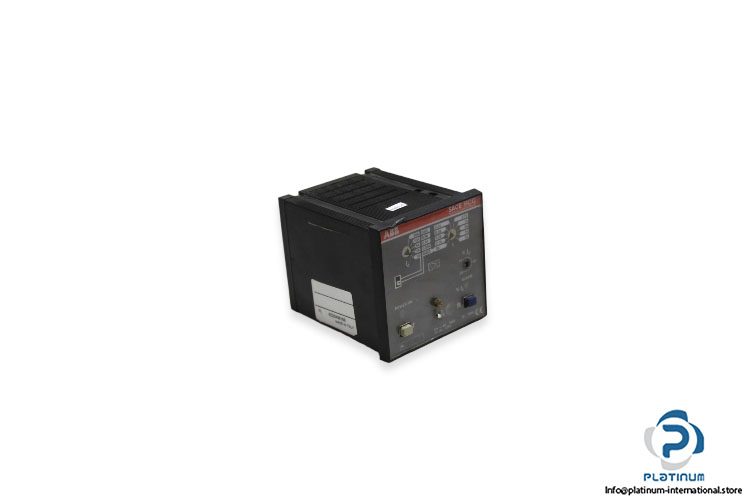

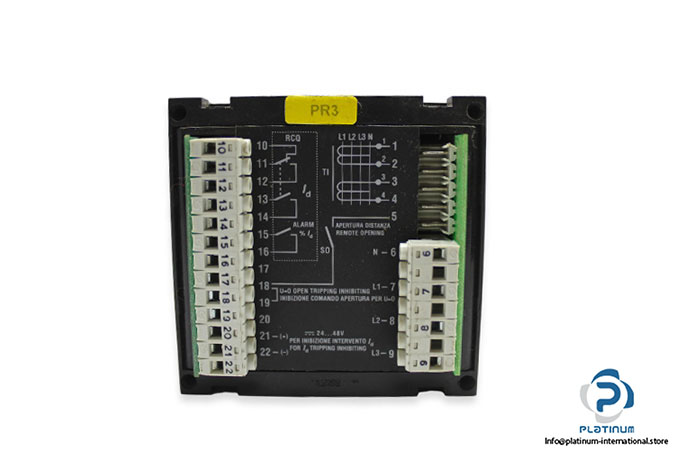

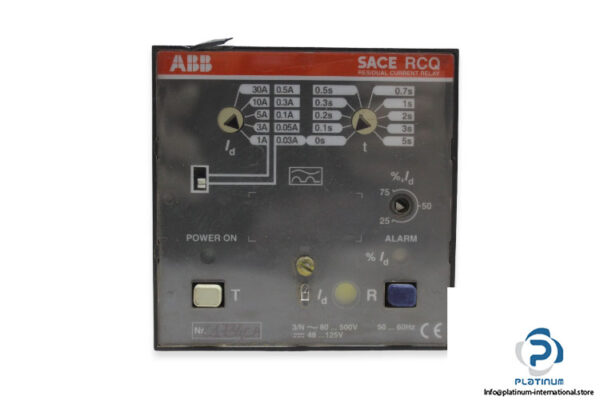

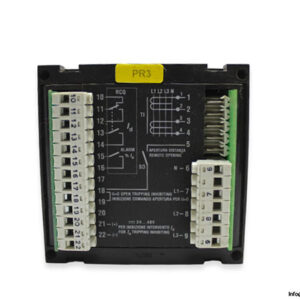

ABB Sace RCQ Residual Current Relay
Manufacturer: ABB
Type: Residual Current Relay
Model: SACE RCQ
Power Supply Voltage: 80 … 500 V AC, 48 … 125 V DC
Signalling for alarm pre-threshold: Yellow flashing LED 1 (N.O) change-over contact 6 A/250 V AC
Residual current relay trip signalling: Yellow magnetic flag change-over contacts (N.O. N.C. N.O) 6 A/250 V AC
Remote opening control: (N.O) contact
Trip time: 15 ms
Frequency: 50 … 60 Hz
Dimensions: 96 x 96 x 131.5 mm
