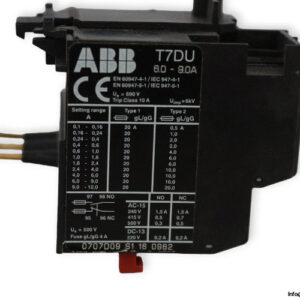

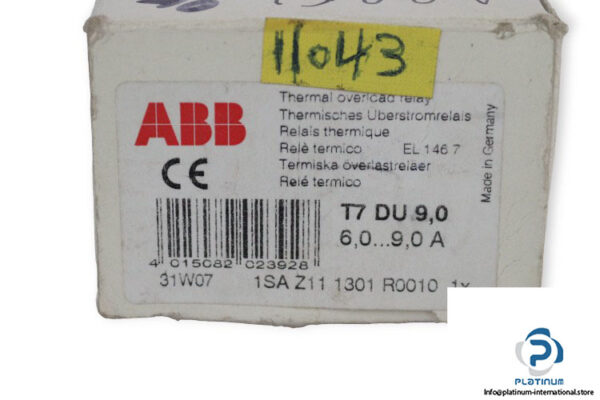

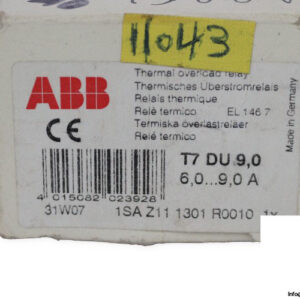

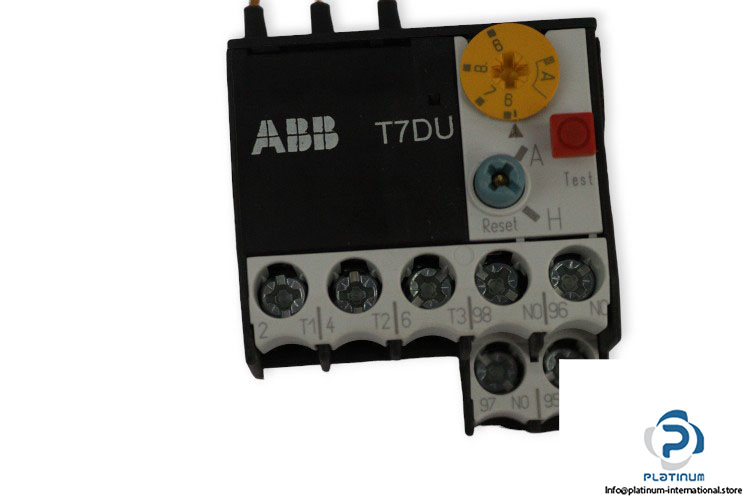

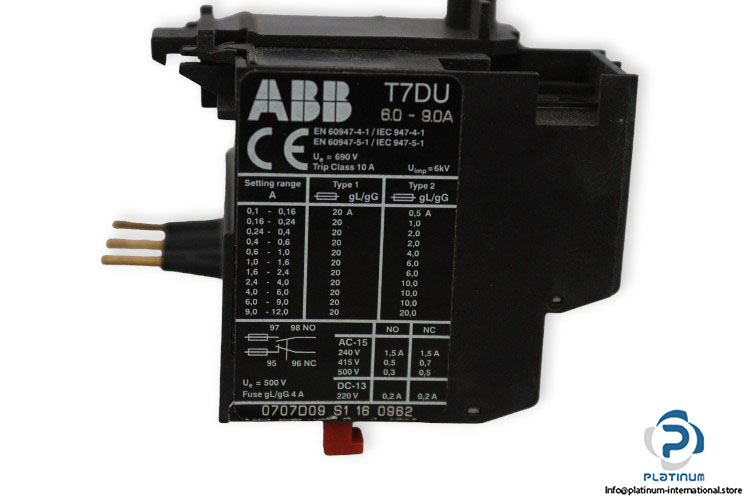

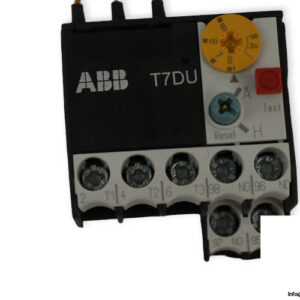

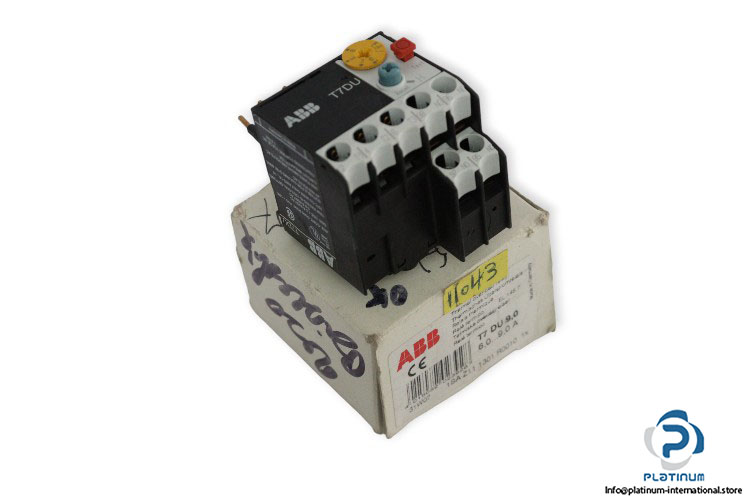

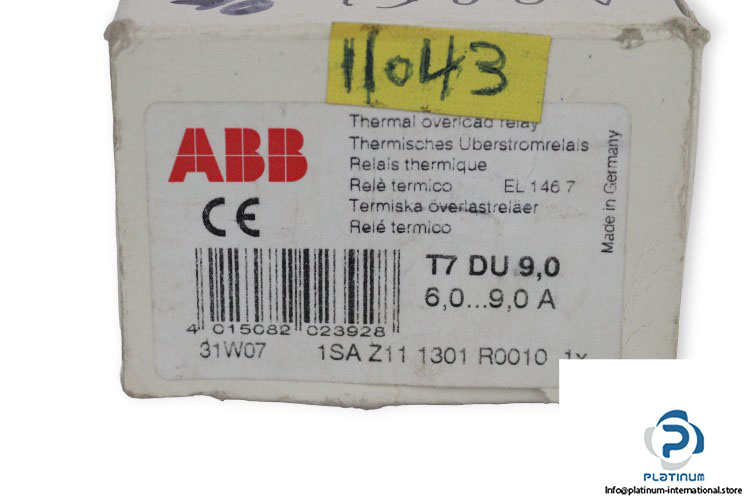

ABB T7 DU 9,0 Thermal Overload Relay

Manufacture: Abb
Type: Thermal Overload Relay
Model: T7 DU 9,0
Product No.: 1SA Z11 1301 R0010

Setting Range: 6 … 9 A
Rated operational voltage (Ue): 690 V
Rated insulation voltage (Ui): 690 V
Rated Impulse Withstand Voltage (Uimp): 6 KV
Rated Operational Current AC-15 (Ie):
(240 V) NC 1.5 A
(240 V) NO 1.5 A
(415 V) NC 0.7 A
(415 V) NO 0.5 A
(500 V) NC 0.5 A
(500 V) NO 0.3 A
Rated Operational Current DC-13 (Ie):
(220 V) NC 0.2 A
(220 V) NO 0.2 A
Number of Poles: 3
Auxiliary Contacts: 1 Normally open, 1 Normally closed
Standards: EN/IEC 60947-4-1/-5-1
Trip Class: 10A
Ambient Air Temperature Operation: -25 … +55 °C
