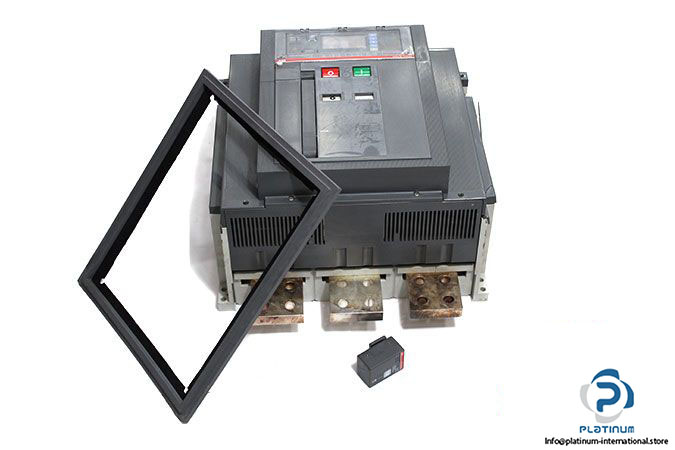

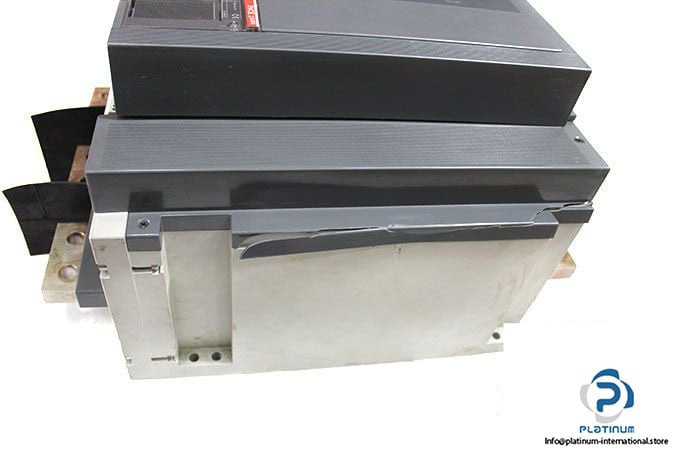

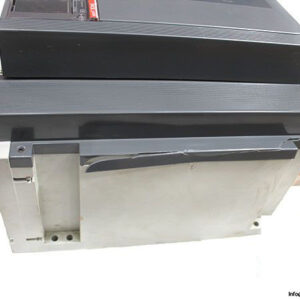

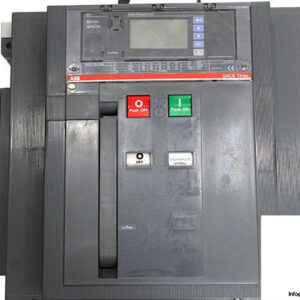

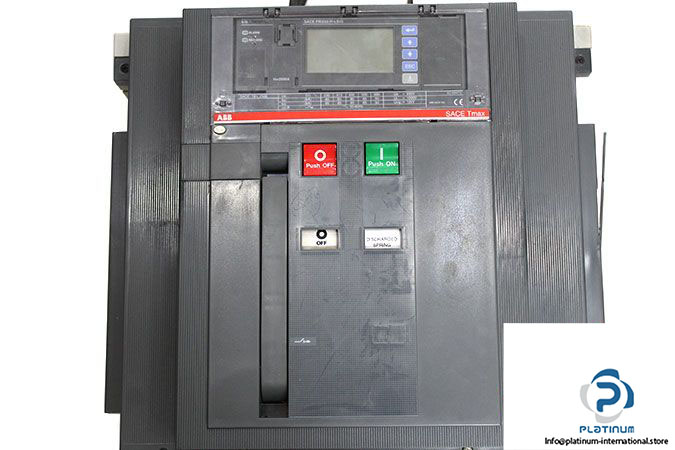

ABB Tmax T8L 2500 Moulded Case Circuit Breaker
Manufacturer: ABB
Type: Moulded Case Circuit Breaker
Series: SACE Tmax
Model: TMAX T8L 2500

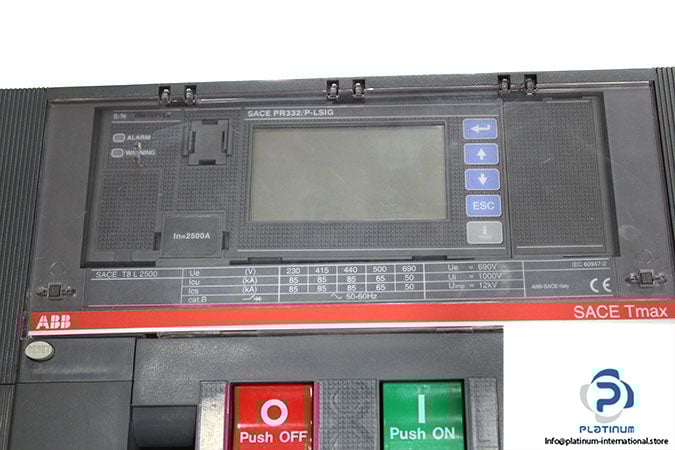

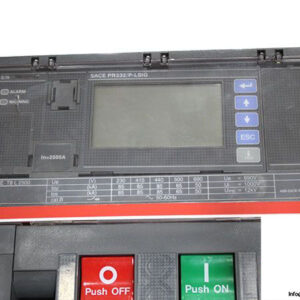

Extended Model: T8L 2500 PR332/P LSIG In=2500A 3p F F
Product ID: 1SDA065762R1
Number of Poles: 3
Release: EL
Version: F

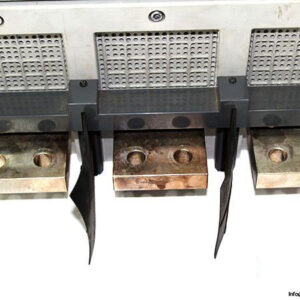

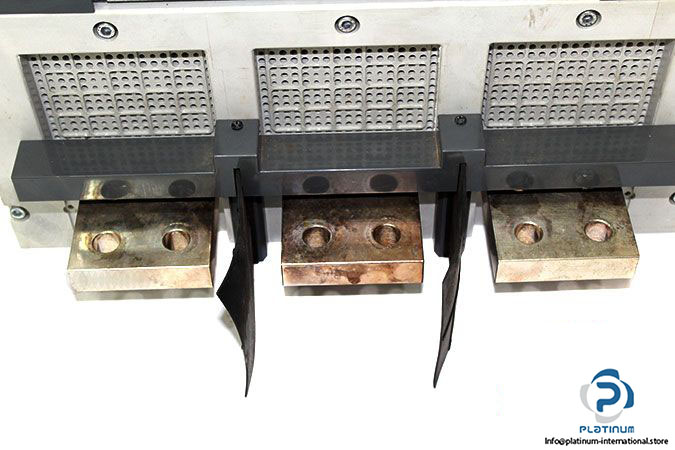

Terminals: Fixed Front Terminals
Rated Uninterrupted Current (In): 2500 A
Rated Operational Voltage (Ue): 690 V AC
Rated Insulation Voltage (Ui): 1000 V
Rated Impulse Voltage (Uimp): 8 kV
Breaking Capacity (Icu):
85 kA (220…440 V AC)
50 kA (690 V AC)
Service Frequency: 50 … 60 Hz
Standards: IEC 60947
Dimensions (W x D x H): 427 x 282 x 382 mm
Accessories:

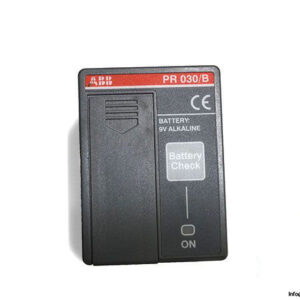

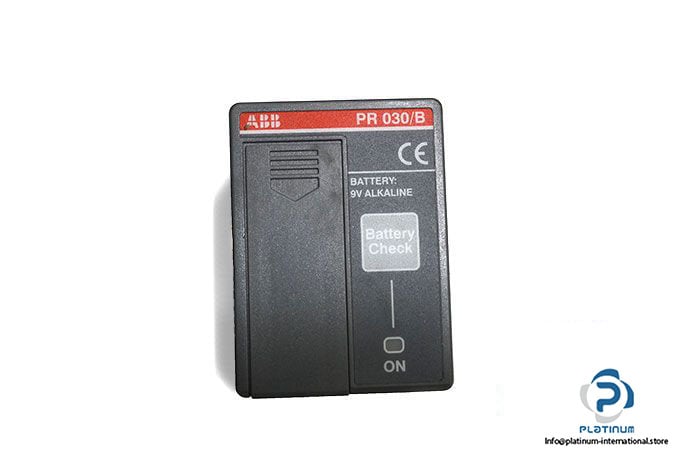

ABB PR030/B BATTERY UNIT
Extended Model: PR030/B Battery Unit E1/6-T7-T7M-X1-T8
Product ID: 1SDA058258R1
Long Description: PR030/B Battery Unit For PR121-PR122-PR123-PR232-PR33x E1/6-T7-T7M-X1-T8
ABB Emax-Tmax T8
Product ID: 1SDH000460R0628
Flange For Switchboard Compartment Door
Gross Weight: 83.6 kg
