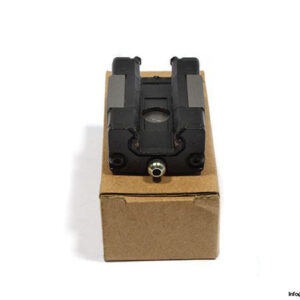

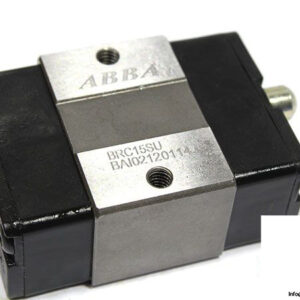

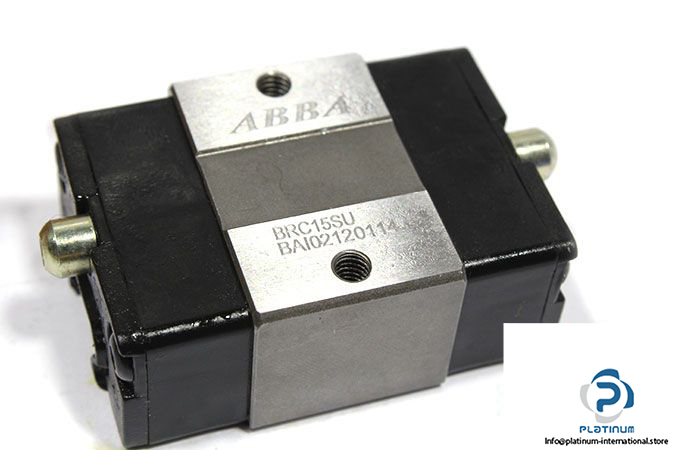

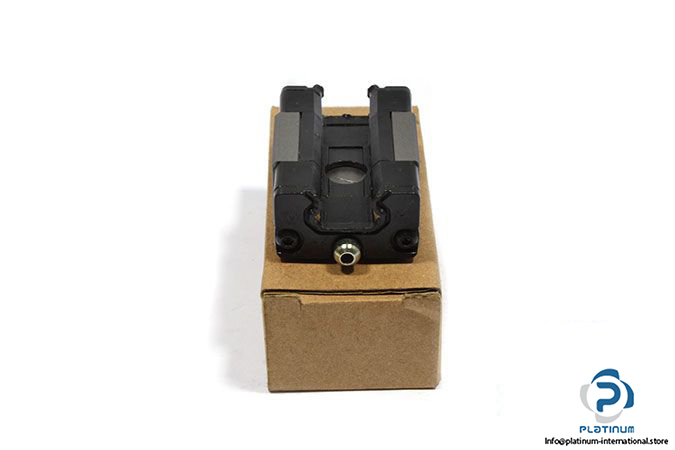

Abba BRC15SU Linear Guideway Block
Manufacturer: ABBA
Type: Linear Guideway Block BRC
Model: BRC 15 SU
Size: 15 mm
Block Type: Slim-line block, Short length, Standard height
Preload class: Z1, Light preload
Accuracy class: N
End Cap Type: End cap with Self-lubricant part
Basic Load Ratings:
Dynamic C: 520 kgf
Static C0: 680 kgf

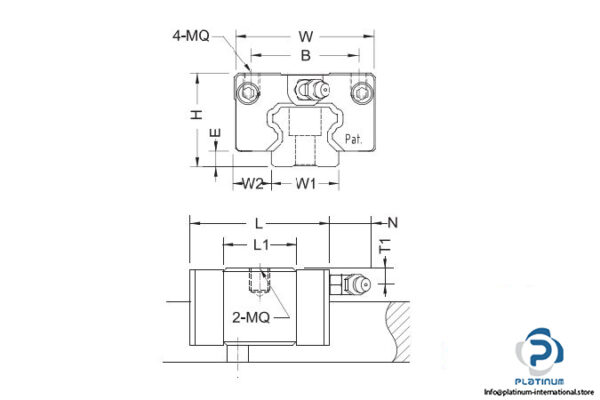

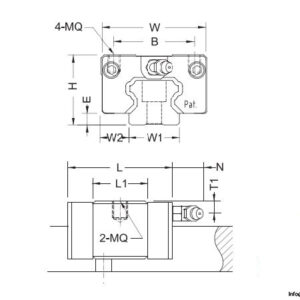

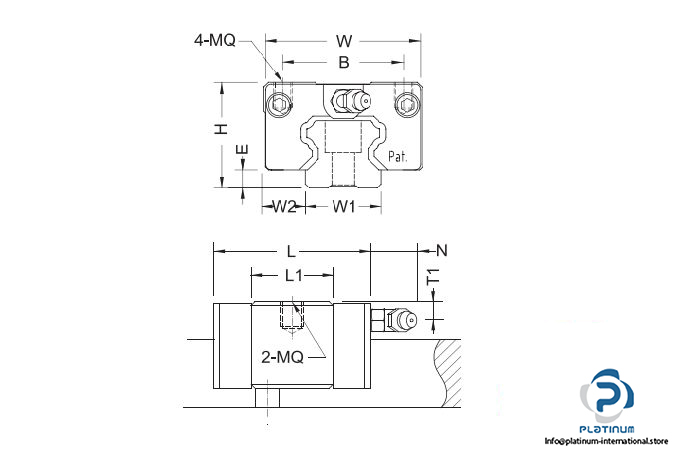

Dimensions
Total Height H: 24 mm
Block Width W: 34 mm
Block Length L: 47.6 mm
Weight: 0.1 kg
