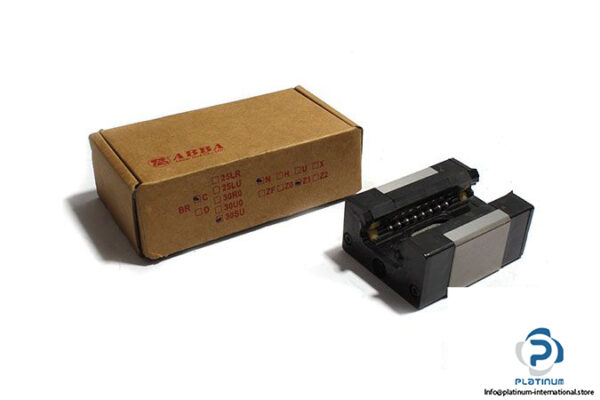

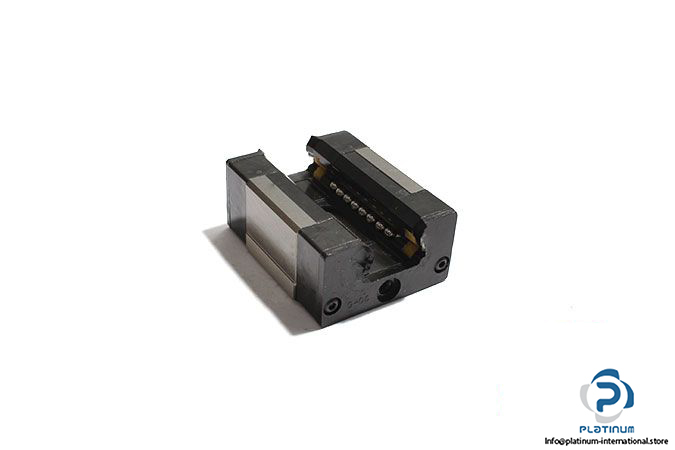

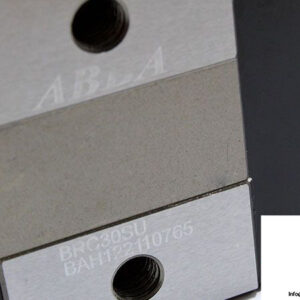

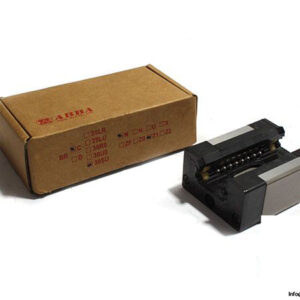

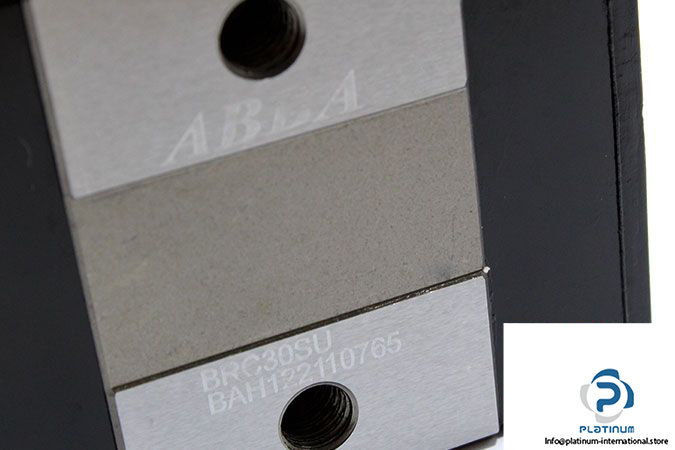

Abba BRC30SU Linear Guideway Block
Manufacturer: ABBA
Type: Linear Guideway Block BRC
Model: BRC 30 SU
Size: 30 mm
Block Type: Slim-line block, Short length, Standard height
Preload class: Z1, Light preload
Accuracy class: N
End Cap Type: End cap with Self-lubricant part
Basic Load Ratings:
Dynamic C: 1750 kgf
Static C0: 2400 kgf

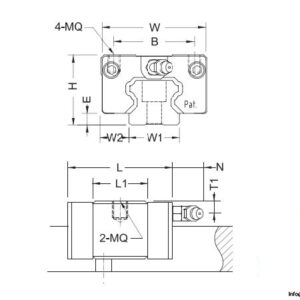

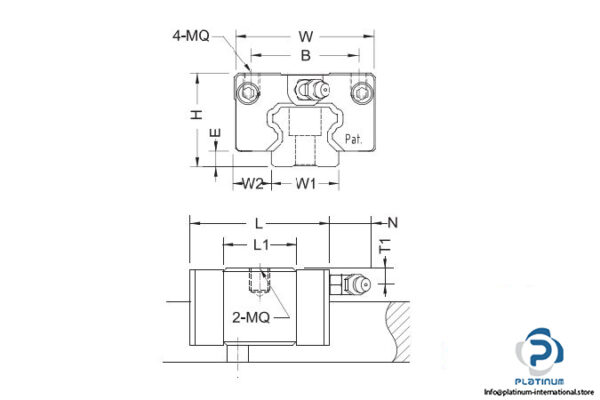

Dimensions
Total Height H: 42 mm
Block Width W: 60 mm
Block Length L: 75.6 mm
Weight: 0.5 kg
