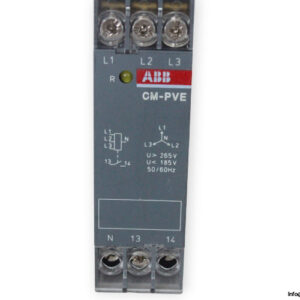

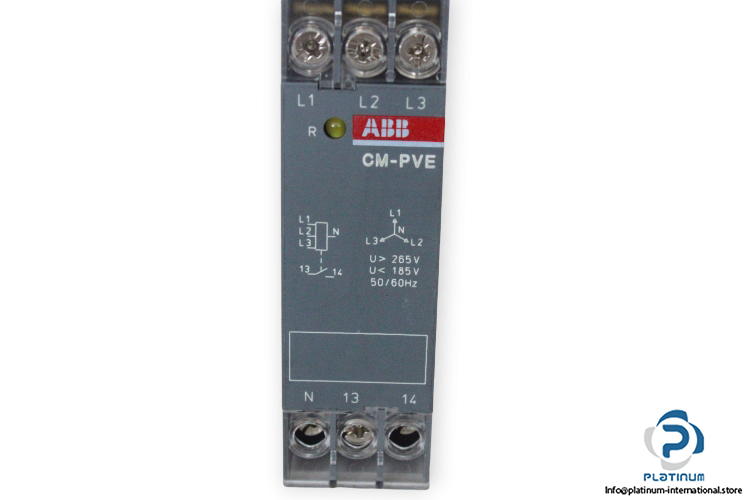

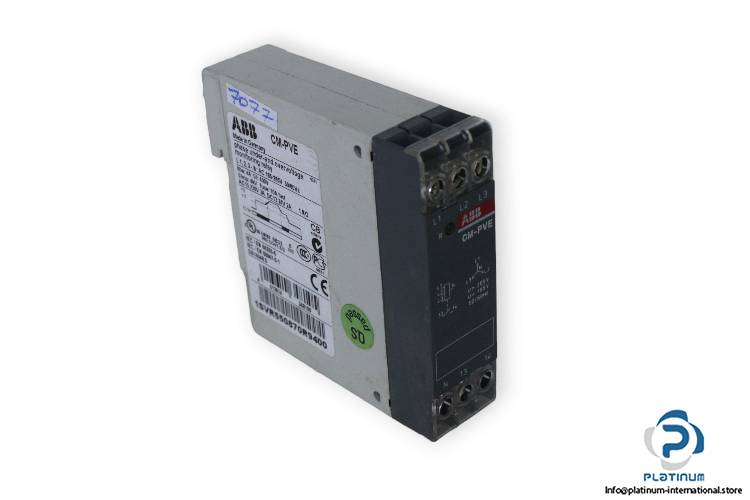

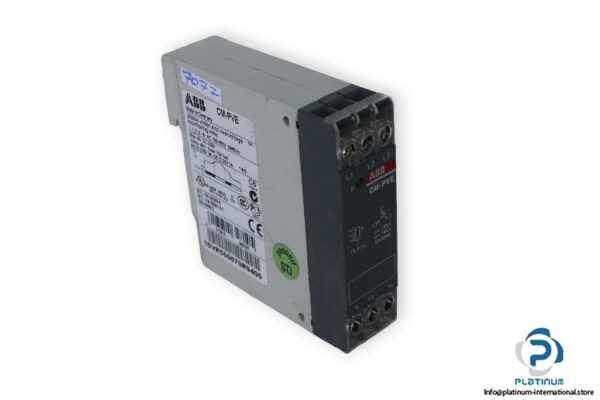

Abb Cm-PVE Safety Relay
Manufacturer: ABB
Type: Safety Relay
Model: CM-PVE

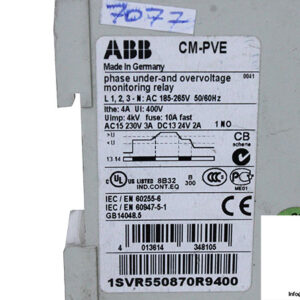

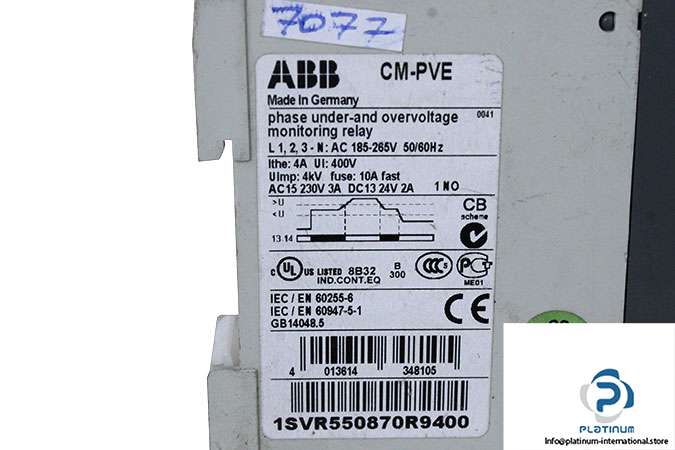

Part no.: 1SVR550870R9400
Measuring Range:
(L-L) 320 … 460 V AC
(L-N) 185 … 265 V AC
Time Range:
500 ms start-up delay
500 ms tripping delay
Rated Control Supply Voltage (Us):
(L-L) 320 … 460 V AC
(L-N) 185 … 265 V AC
Rated Frequency (f): Supply Circuit 50/60 Hz
Output: 1 n/o contact
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 4 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-12 (Ie): (24 V) 4 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Rated Impulse Withstand Voltage (Uimp): Input Circuit 4 kV
Rated Insulation Voltage (Ui): Input Circuit / Output Circuit 400 V
Degree of Protection:
Housing IP50
Terminals IP20
Overvoltage Category: III
Pollution Degree: 3
Tightening Torque: 0.6 … 0.8 N·m
Wire Stripping Length: 10 mm
Mounting Position: 1 … 6
