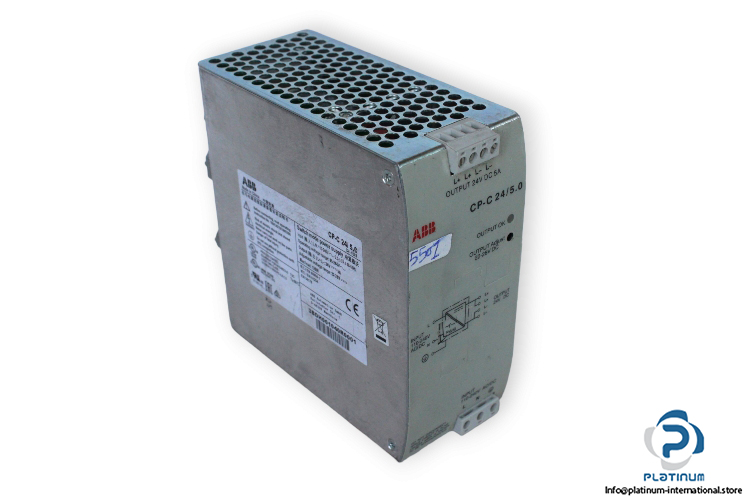

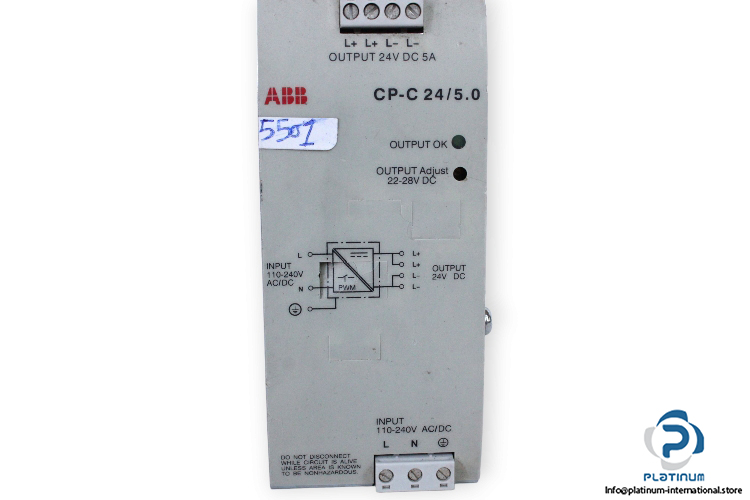

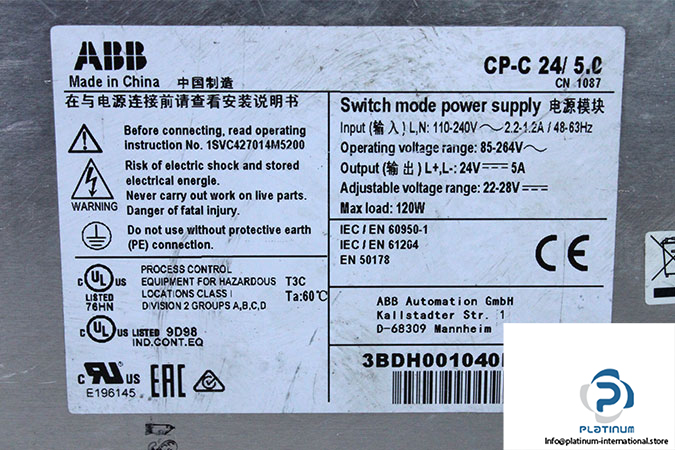

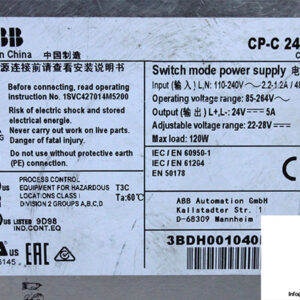

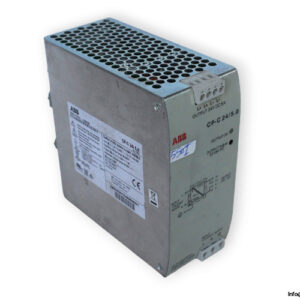

ABB CP-C24/5.0 Switch Mode Power Supply

Manufacturer: ABB
Type: Switch Mode Power Supply
Model: CP-C24/5.0
Order Code: 1SVR427024R0000

Input Voltage: 110 … 240 V AC/DC
Rated Output Voltage: 24 V DC
Operating Voltage: 85 … 264 V AC
Current: 2.2 … 1.2 A
Power Consumption: 135 W
Adjustable Voltage Range: 22 … 28 V AC/DC
Output Circuit voltage: 24 V DC
Output Circuit Current: 5 A
Output Circuit Power/Max. Load: 120 W
Tightening Torque: 0.4 Nm
Mounting Position: horizontally
Material of enclosure: Zinc‑Coated Sheet Steel Cover, Shell Aluminium Enclosure
Ambient Temperature: 60 °C
Operating Temperature: -25 … 70 °C
Degree of protection: IP20
Dimensions: 56.5 X 130 X 135.5 mm
