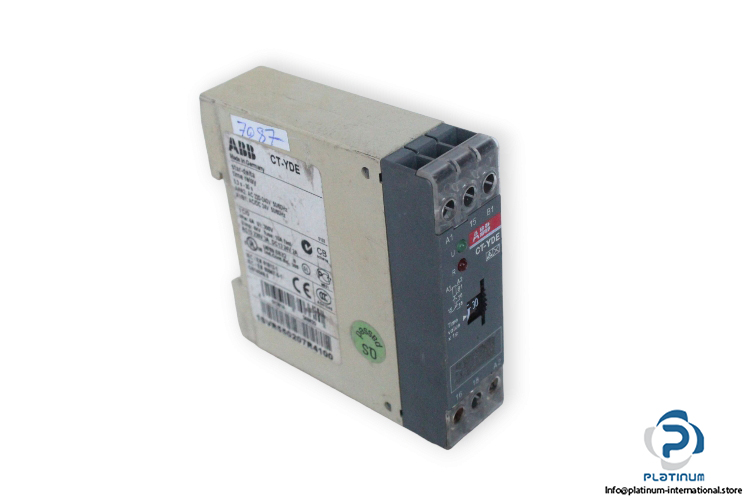

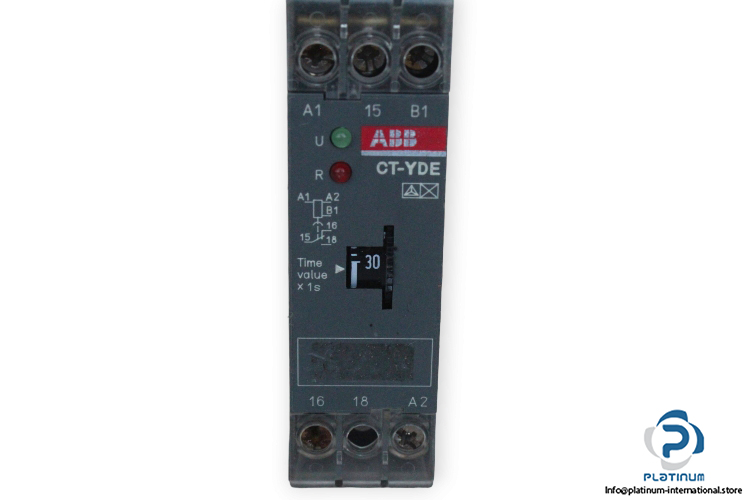

Abb Ct-YDE Electronic Timer

Manufacturer: ABB
Type: Electronic Timer
Model: CT-YDE
Order No: 1SVR550207R4100

Rated control supply voltage: 110 … 130 V AC
Frequency: 50/60 Hz
Time ranges: 0.3 s – 30 S
Contact: 1 C/O
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 4 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-12 (Ie): (24 V) 4 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Temperature Range: -25 … 60°C
Dimensions: 22.5 x 78 x 78.5 mm
