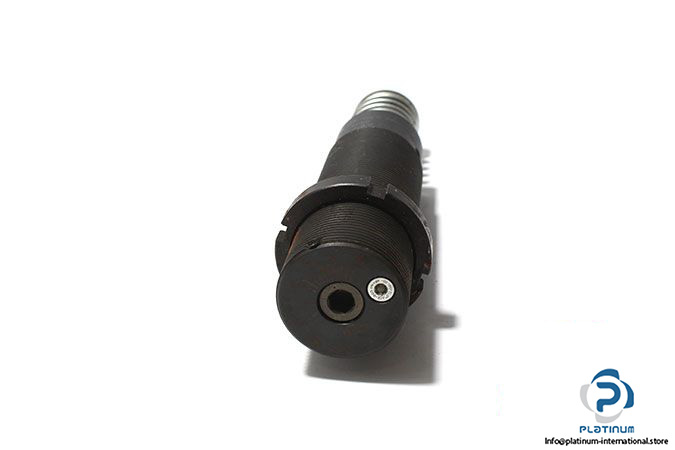

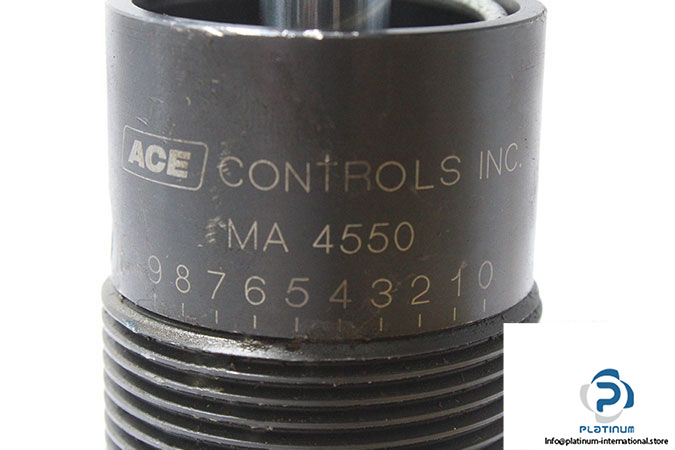

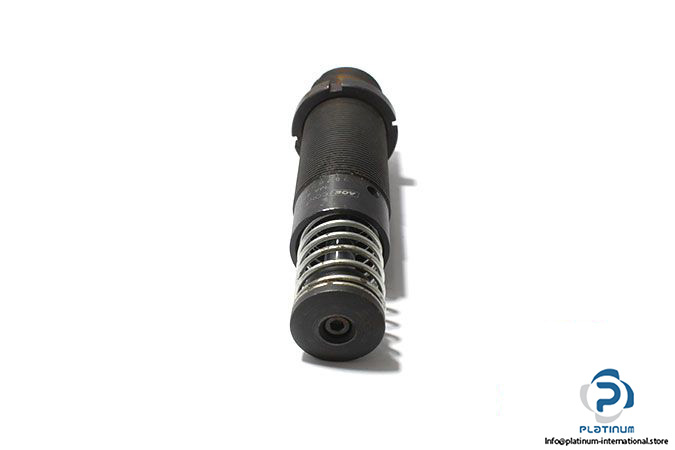

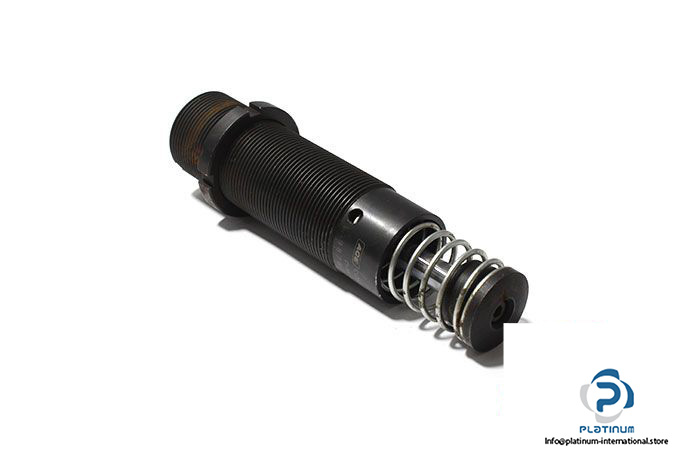

ACE Controls MA 4550 Shock Absorber
Used
In stock2 unitsReady to ship
New
In stock 150,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: ACE CONTROLS
Type: SHOCK ABSORBER
Model: MA4550
Type of installation: Threaded With Lock Nuts
Energy capacity: 1,000,000 in-lbs/h
min. Effective weight: 150 lbs
max. Effective weight: 32,000 lbs
max. Return Force: 32.2 lbs
min. Return Force: 15.1 lbs
Return Time: 0.08 s
Max. Side Load Angle: 3 °
Impact velocity range: 0.5 ft/sec … 16.5 ft/sec
Operating temperature range: 10 °F … 150 °F
Material
Outer body: Nitride hardened steel
Piston rod: Hard chrome plated steel
Rod end button: Hardened steel and corrosion-resistant
Rod Diameter: 13 mm
Piston Diameter: 35 mm
Total length: 195 mm
Diameter and Step for Threaded Surface: M44 X 1”
Temperature Range: -10 ….. 80 °C
