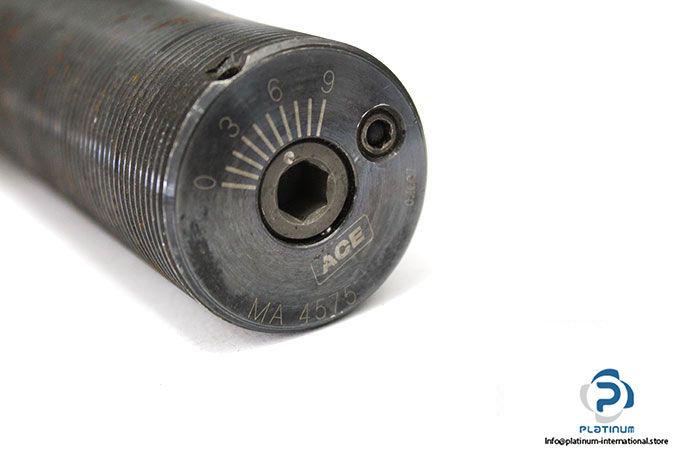

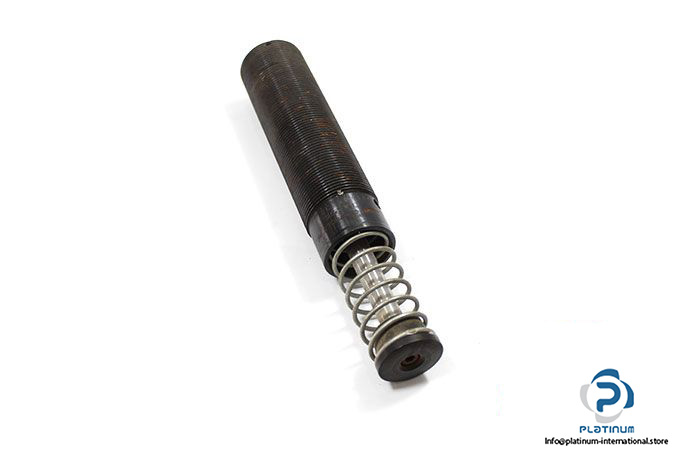

ACE Controls MA 4575 Shock Absorber With Spring

Manufacturer: ACE CONTROLS
Type: ADJUSTABLE SHOCK ABSORBER WITH SPRING
Model: MA 4575

Energy capacity per Cycle: 1,300 Nm/cycle
Energy capacity per hour: 146,000 Nm/h
Min. Effective weight: 70 kg
Max. Effective weight: 15,000 kg
Max. Return Force: 180 N
Min. Return Force: 50 N
Return Time: 0.11 s
Impact Velocity:  0.15 m/s … 5 m/s
Material
Outer Body: Nitride Hardened Steel
Piston Rod: Hard Chrome Plated Steel
Return Spring: Zinc Plated Or Plastic-Coated Steel
Stroke Length: 73.9 mm
Piston Diameter (d2): 35 mm
Length (L2): 145 mm
Diameter and Step for Threaded Surface: M45x1.5 mm
Temperature Range: -12 … 66 ^°C
