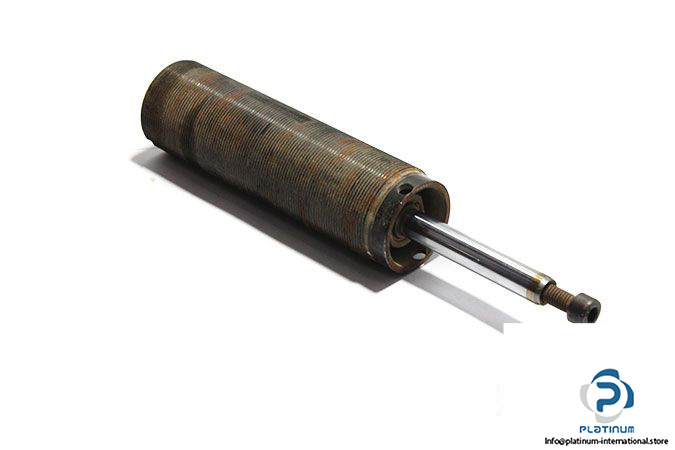

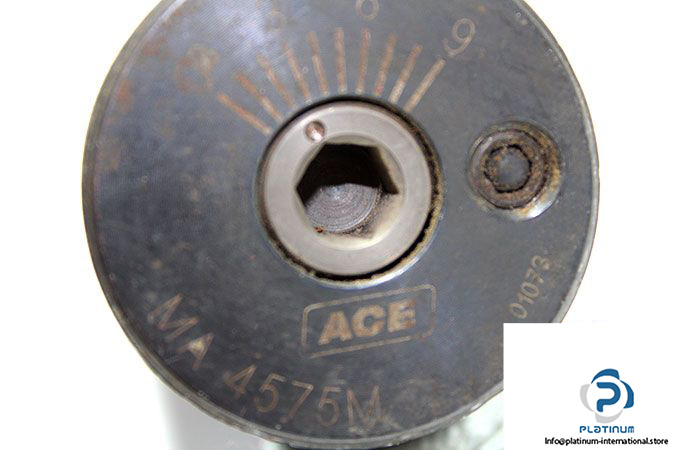

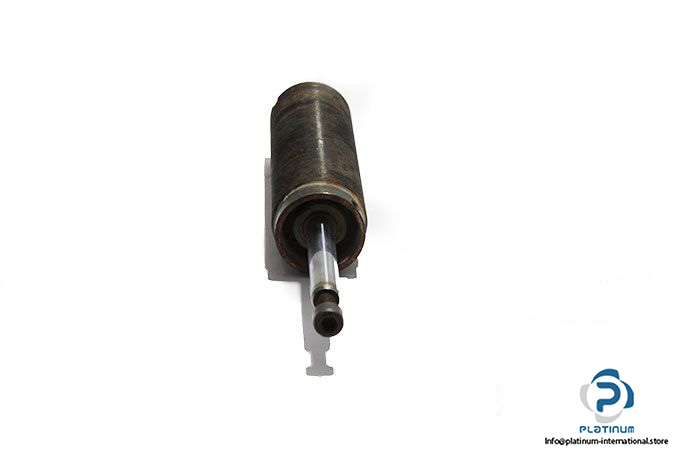

ACE Controls MA 4575M Shock Absorber

Manufacturer: Ace Controls
Type: SHOCK ABSORBER
Model: MA4575M

Materials
Body: nitride hardened steel
Piston rod: hard chrome plated steel
Type of installation: Threaded With Lock Nuts
Energy capacity: 11,506 in-lbs/cycle
Return Force: 11 … 40 N
Return Time: 0.11 s
Stroke Length: 73.9 mm
Rod Diameter: 12 mm
Piston Diameter: 42 mm
Total length: 250 mm
Shock Diameter: M45 X 1.5
Temperature Range: -10 ….. 80 ^°C
