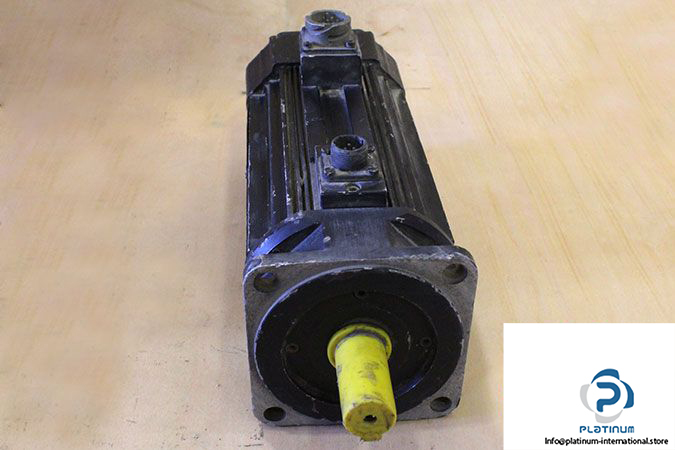

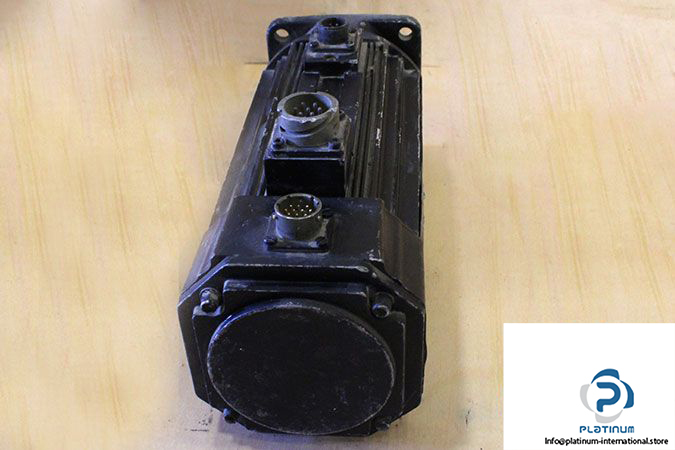

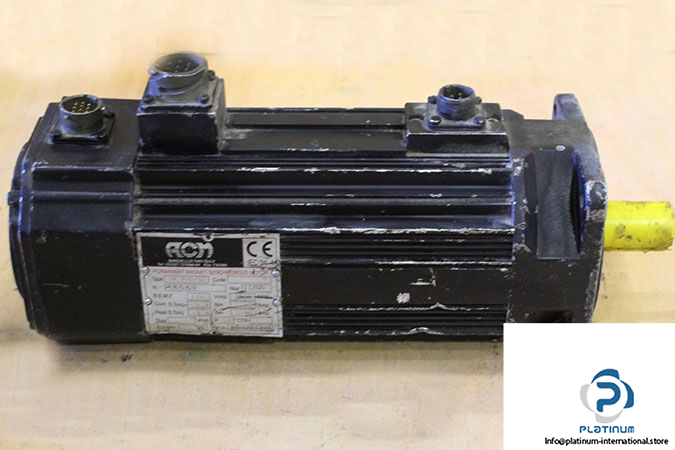

ACM BRL 908/4D Permanent Magnet Motor

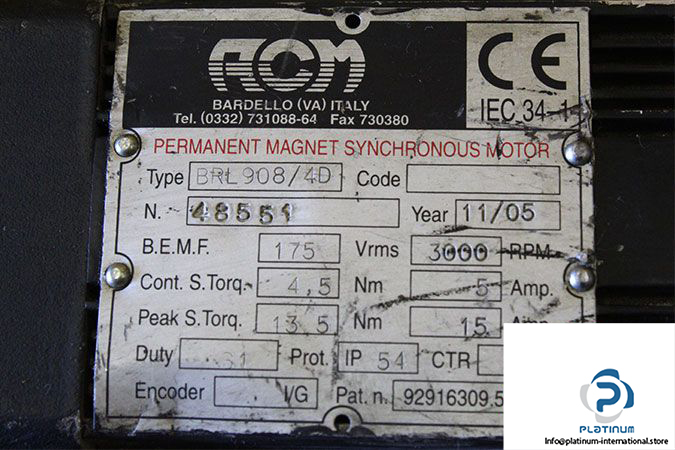

Manufacturer: ACM

Type: Permanent Magnet Synchronous Motor

Model: BRL 908/4D

Pat No: 92916309.5-2314

Size: 4D

Rated Voltage: 175 Vrms

Peak Current: 15 Amp

Stall Current: 5 Amp

Rated Speed: 3000 min^-1

Peak Torque: 13.5 Nm

Stall Torque: 4.5 Nm

Protection Class: IP54

Weight: 7.12 kg
