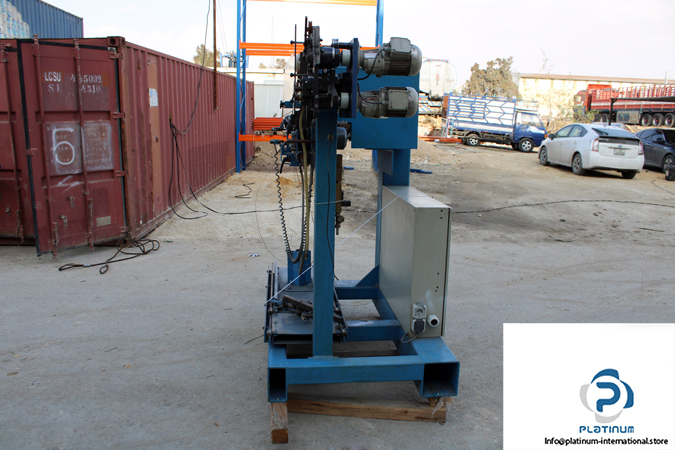

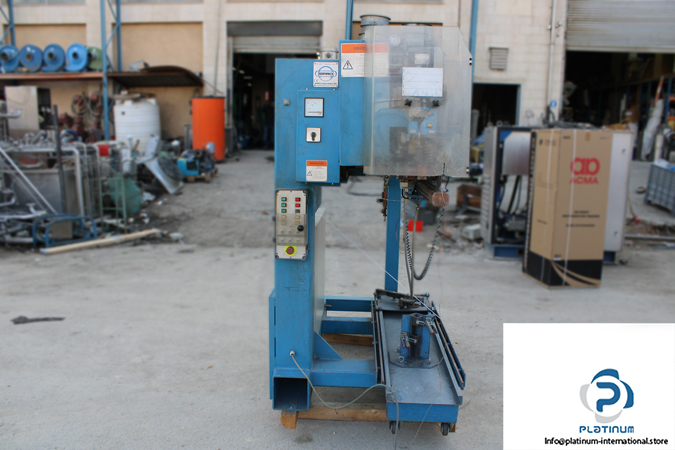

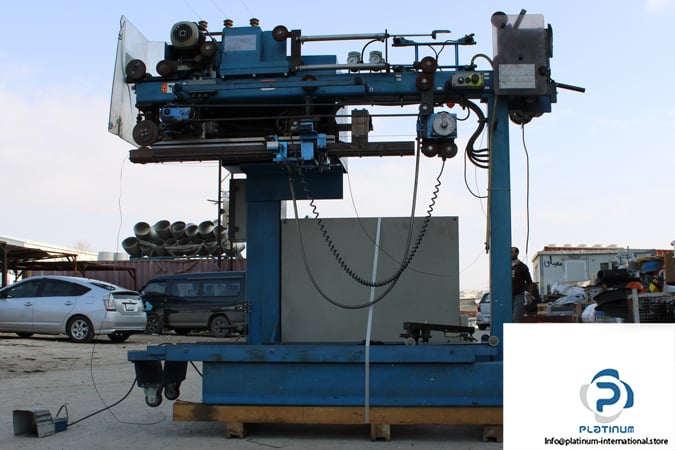

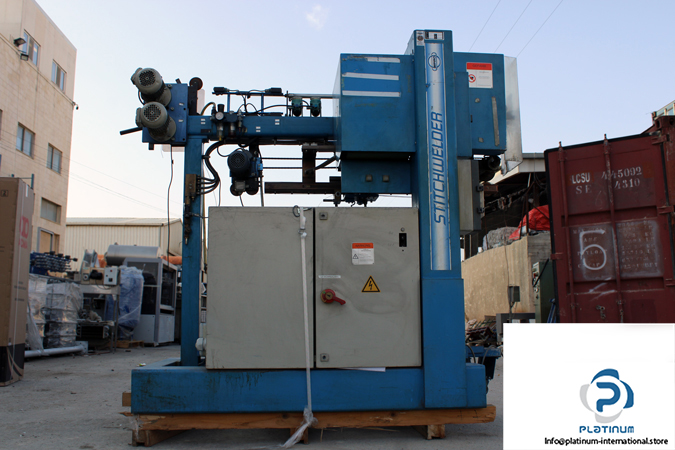

Spiro Stitchwelder CU-30 Wire Welding Machine

Manufacturer: SPIRO  STITCHWELDER

Type: Wire Welding Machine

Model: CU-30

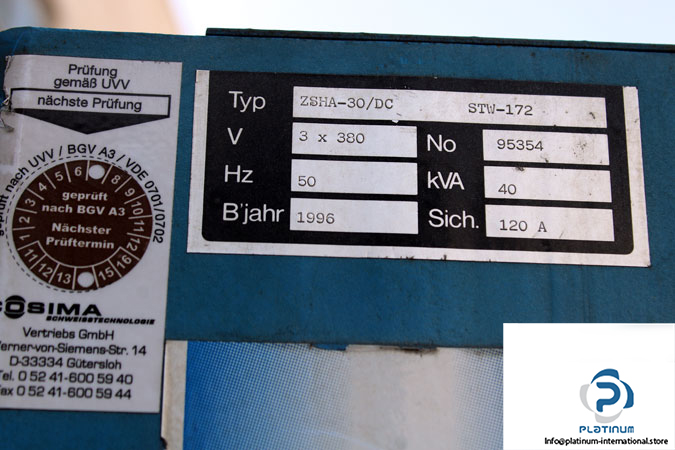

Attachments: ZSHA-30/DC STW-172

SIPRO STITCHWELDER CU-30 The most beautiful seam in the world made by SIPRO new revolutionary longitudinal seamwelder.  It produces a low heat welded seam which does not alter the quality of the welded material. (particularly interesting fact to stainless).

Voltage: 3~ 380 V

Frequency: 50Hz

Transformer Power: 30 kVA

Diameter Range: 100-500 mm

Thickness: 0.2-1.0 mm

Weld length: 80-500 mm

Material: Galvanized, cold rolled, aluminized & stainless steel, brass.

Air consumption: 4.3 Nm 3/h

Weight: approx. 1200 kg
