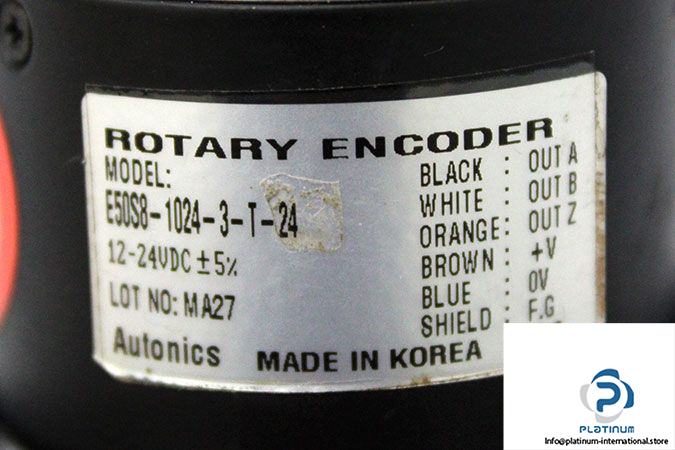

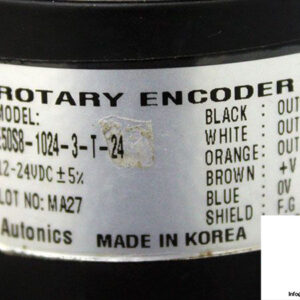

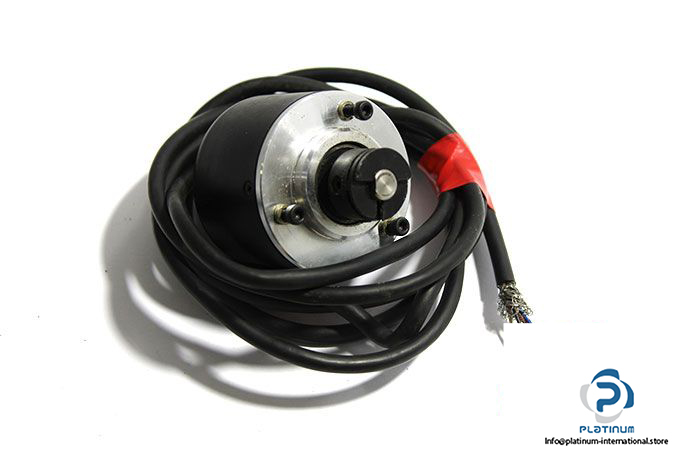

Autonics E50S8-1024-3-T-24 Incremental Encoder
Used
In stock1 unitReady to ship
INCREMENTAL ENCODER
Autonics E50S8-1024-3-T-24 is a 3-phase solid shaft incremental encoder with 1024 PPR and 300 kHz frequency response. It operates at 12“24 VDC and features a 1.8 m cable with 4-wire connection.102412-24V3AutonicsControlE50S8-1024-3-T-24EncoderIncrementalMotionOutputPhasePolePPRSensorshaftSolidTotem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
AUTONICS E50S8-1024-3-T-24 INCREMENTAL ENCODER
The E50S series by Autonics offers compact and high-precision incremental encoders suitable for industrial automation applications. The E50S8-1024-3-T-24 model is engineered with high response frequency and reliable solid shaft design, making it ideal for motion control and positioning systems.
Manufacturer: AUTONICS
Type: Incremental Encoder
Series: E50S
Model: E50S8-1024-3-T-24
Ref No.: MA27
Shaft Type: Solid Shaft
Technical Specifications
- Power Supply: 12“24 VDC
- Shaft Diameter: 8 mm
- Pulses Per Revolution (PPR): 1024
- Output Type: Totem Pole Output
- Output Phase: 3 Phase
- Response Frequency: 300 kHz
- Electrical Connection: 1.8 m Cable, 4 Wire
- Operating Temperature: -10 to 70 °C
