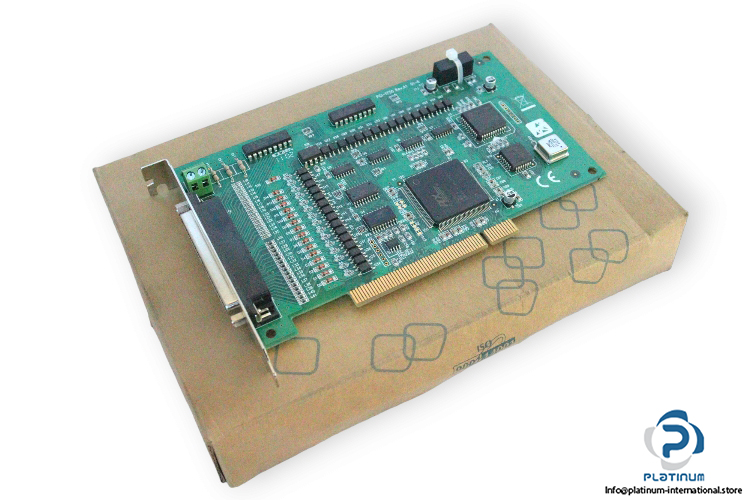

Advantech PCI-1750-AE Isolated Digital I/O Module
New
In stock2 unitsReady to ship

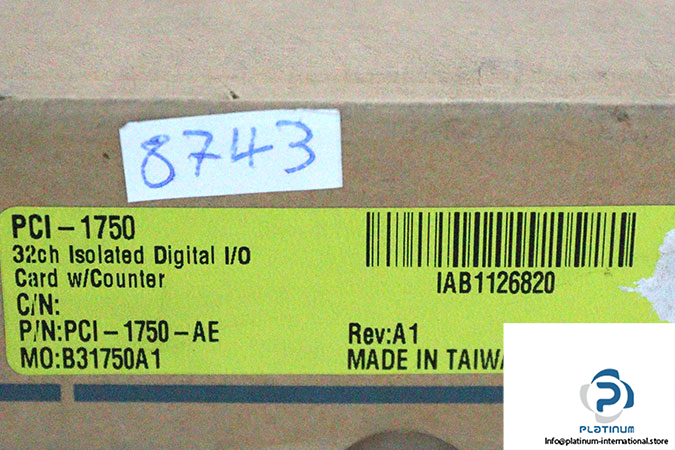

Manufacture: Advantech Type: Isolated Digital I/O Module Model: PCI-1750-AE Part No.: 1AB1126820 / B31750A1
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: Advantech
Type: Isolated Digital I/O Module

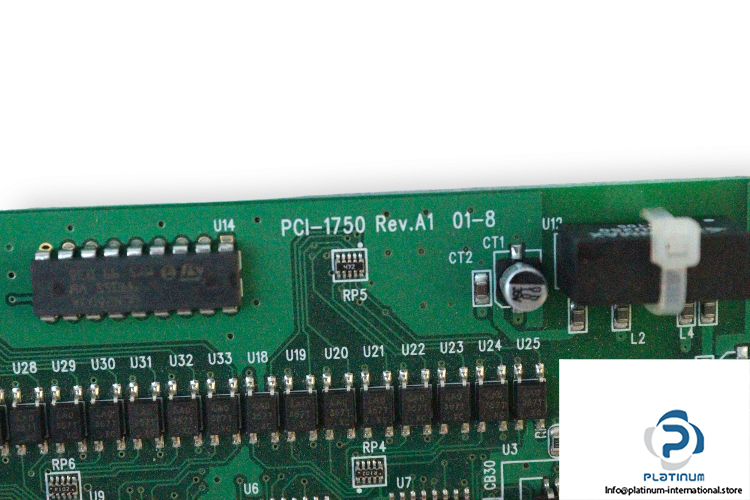

Model: PCI-1750-AE

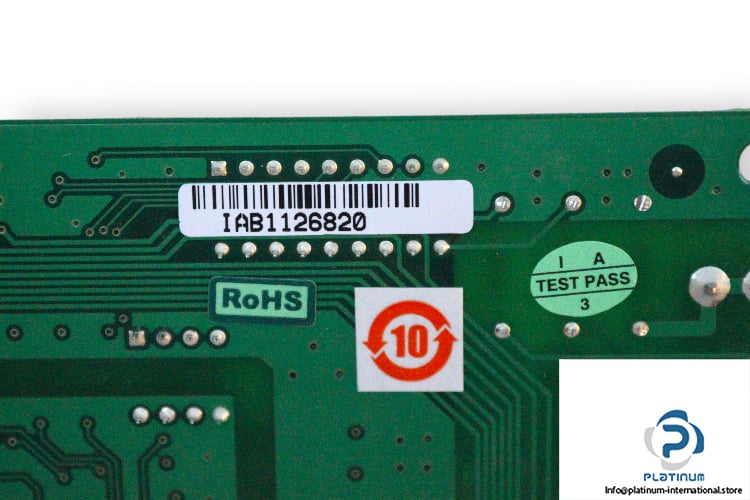

Part No.: 1AB1126820 / B31750A1
No. of channels: 32 (16 isolated DI and 16 isolated DO channels)
Input Voltage: Logic 0: 3 V max., Logic 1: 10 V min. (30 V max.)
Input Resistance: 3.37KΩ @ 1W
Input current: 3.4mA @ 12 VDC, 7.13mA @ 24 VDC
Power Consumption Typical: 3.3V @ 255mA, 12V @ 30mA, Max.: 3.3V @ 280mA, 12V @ 60mA
Operating Temperature: 0 … 60 °C
Dimensions (L x H): 168 x 100 mm
