Aeco SI 8-C1 PNP NO Inductive Proximity Sensor
New
In stock1 unitReady to ship
Inductive Proximity Sensor
AECO SI 8-C1 PNP NO inductive proximity sensor with 1.5 mm sensing range, PNP normally open output, stainless steel housing, and IP67 protection for industrial automation applications.1.5mm6-30VAecoAutomationdcInductiveIndustrialIP67M8NormallyOpenPNPProximitySensingSensorstainlessSteelSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

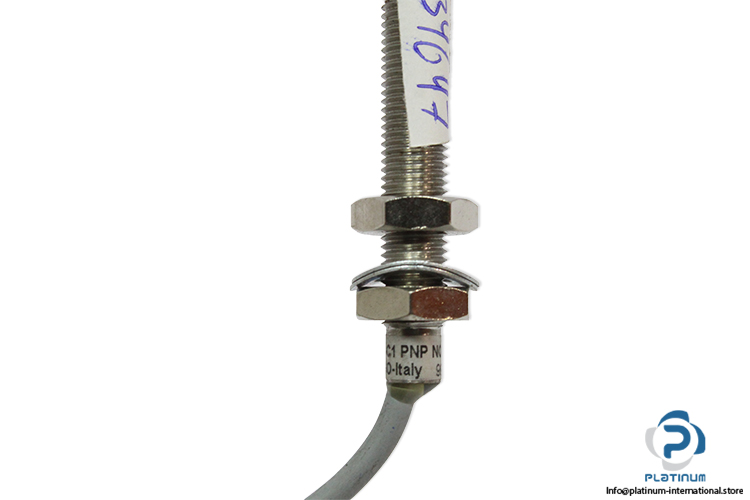

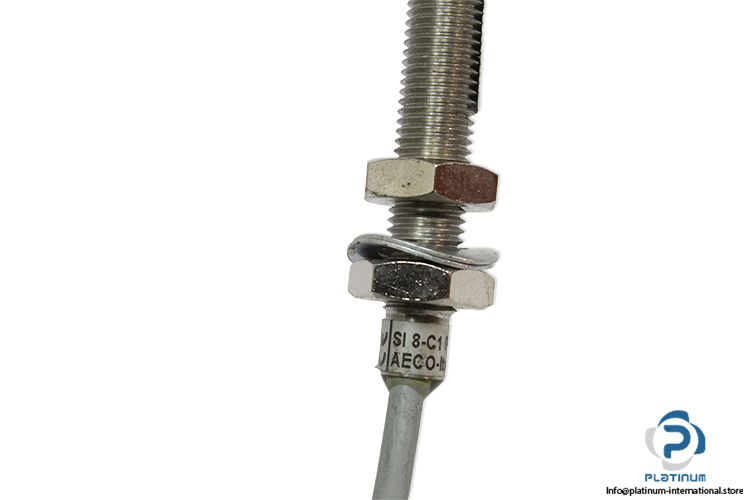

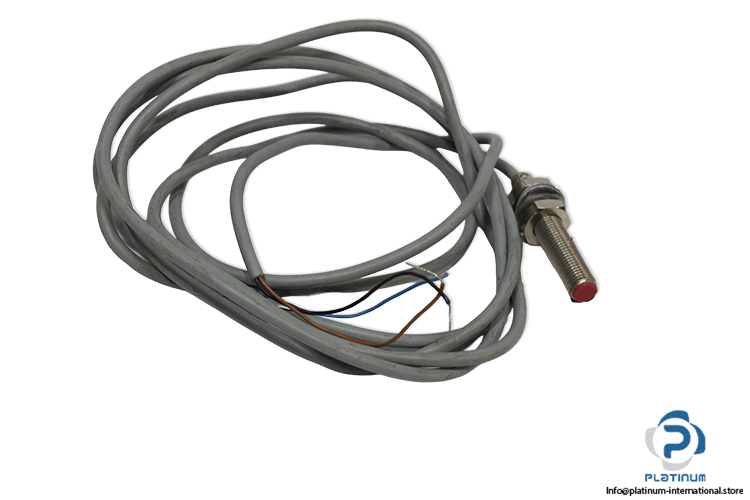

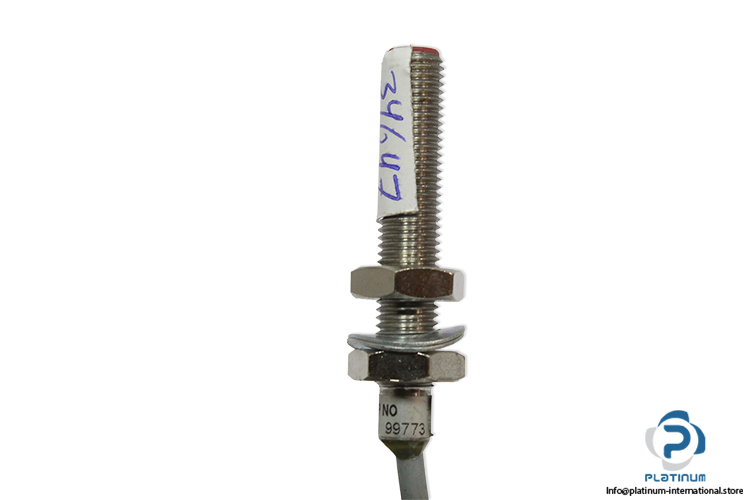

AECO SI 8-C1 PNP NO Inductive Proximity Sensor
The AECO SI 8-C1 PNP NO is a compact inductive proximity sensor designed for reliable object detection in industrial automation and control systems. Built with a durable stainless steel housing and IP67 protection, this sensor ensures stable performance in demanding environments.
Manufacturer: AECO
Type: Inductive Proximity Sensor
Model: SI 8-C1 PNP NO
Code: 99773
| Power Supply | Direct Current |
| Sensing Range | 1.5 mm |
| Operating Voltage | 6 / 30 V DC |
| Electrical Design | PNP |
| Switching Output | Normally Open |
| Connector Type | M8, 2 m Cable |
| Dimensions | M8, 50 mm |
| Hysteresis (%Sn) | 10% |
| Max Switching Frequency | 2000 Hz |
| Repeatability (%Sn) | 3 |
| Max Output Current | 200 mA |
| Absorption | 12 mA @ 24 VDC |
| Voltage Drop | 1.8 V |
| Housing Material | Stainless Steel |
| Operating Temperature | -25 / 70 °C |
| Protection Class | IP67 |
