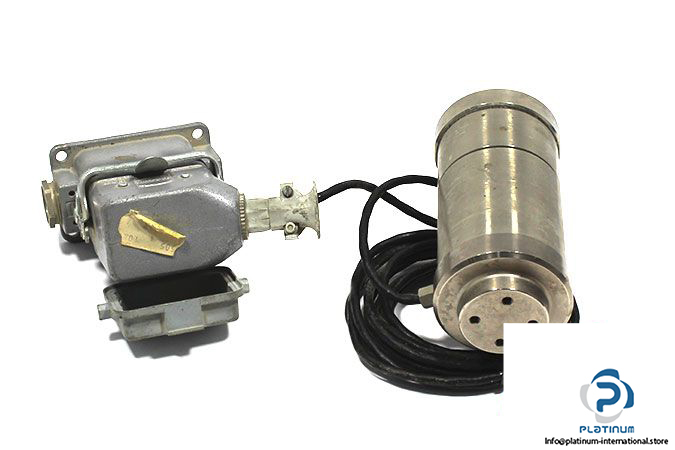

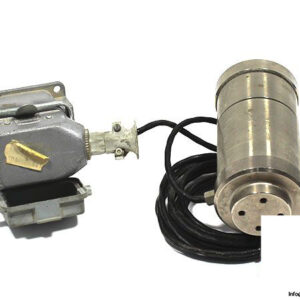

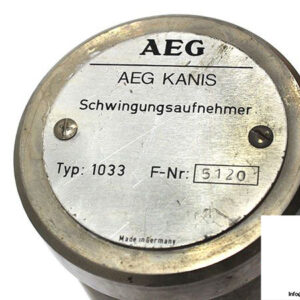

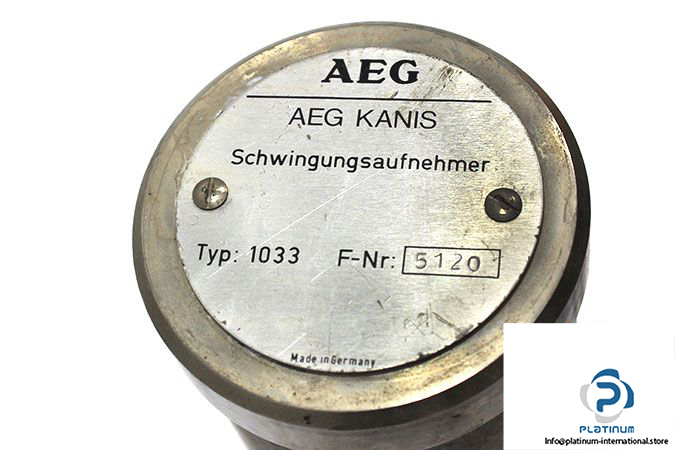

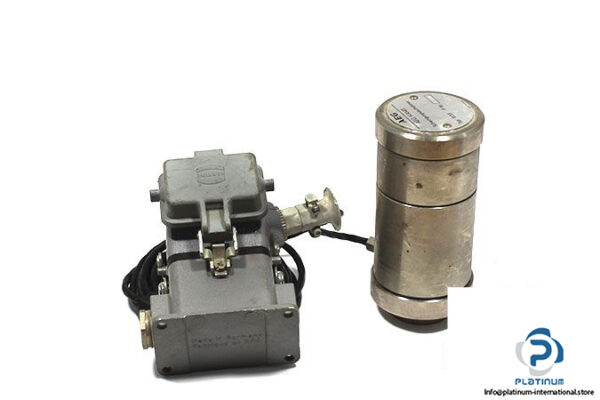

AEG Kanis 1033 Vibration Sensor

Manufacturer: AEG KANIS

Type: Vibration Sensor

Model: 1033

Alternative Model: PR 9268

Operation Direction

• Vertical: PR 9268/60: ± 60° ≤15 % deviation of specified data
• Horizontal: PR 9268/70: ± 30° ≤15 % deviation of specified data

Frequency Range: 10…1000 Hz

Vibration Amplitude

• Peak: 3000 µm
• Limit Stops At: ± 2000 µm

Effective Capacities: < 2.0 nF

Transversal Sensitivity: <0.1 (At 80 Hz)
Temp. Range Sensor Without Connector: -20…220 °C

Cable Length: 3 m

Protection Class: IP65

Material: Stainless Steel

Weight: 2.340 kg
