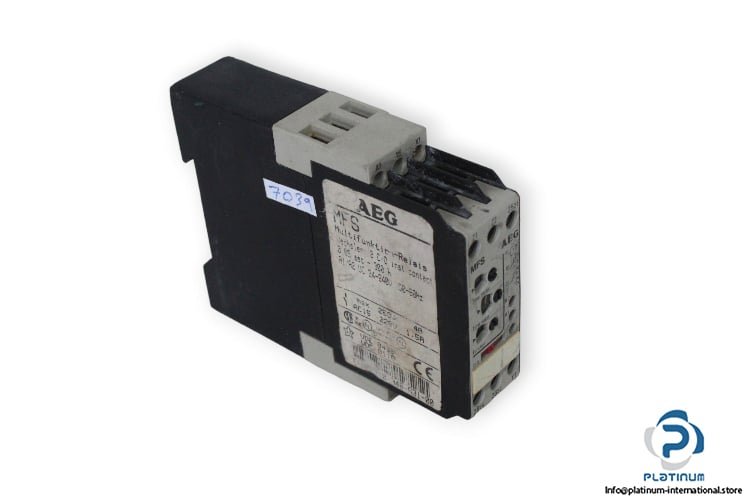

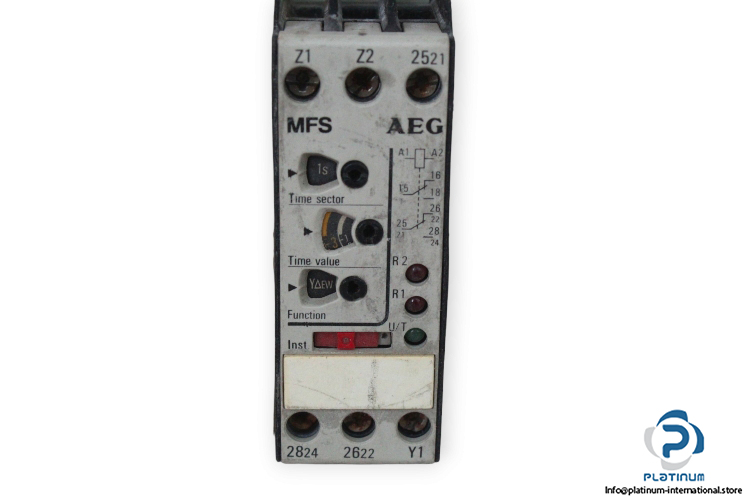

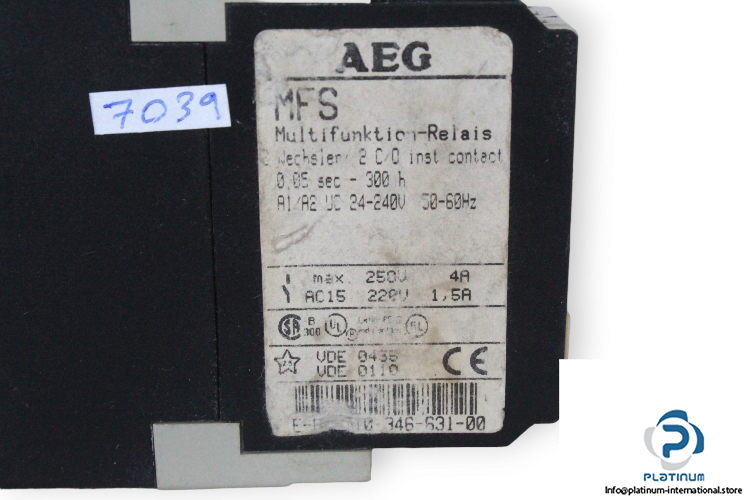

AEG MFS Multifunction Relay
Manufacturer: AEG
Type: Multifunction Relay
Model: MFS
Part No.: 243001002
Supply Voltage: 24 … 240 V AC/DC
Frequency: 50 … 60 Hz
Time Range: 0.05 s … 300 h
Contact Configuration: 2 Changeover (CO)
Contact Rating: 250 V max., 4 A/ 220 V AC, 1.5 A
Mounting: Snap-on Mounting/ Screw mounting by adapter
Operating Temperature: -25 … 65 °C
Dimensions: 22.5 X 78 X 100 mm
