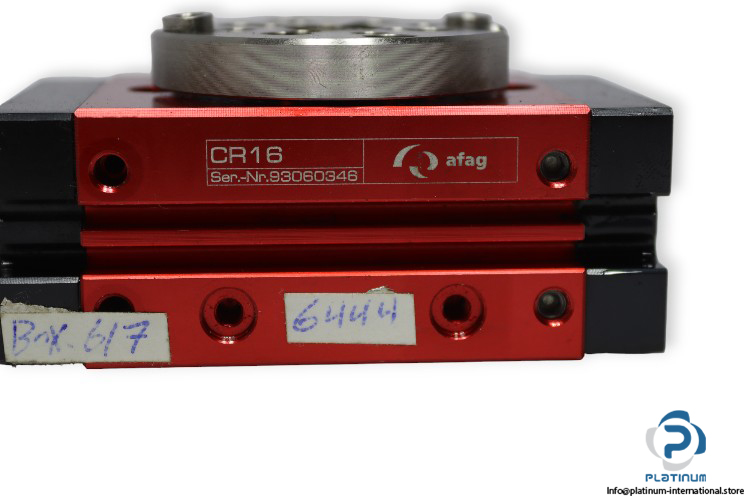

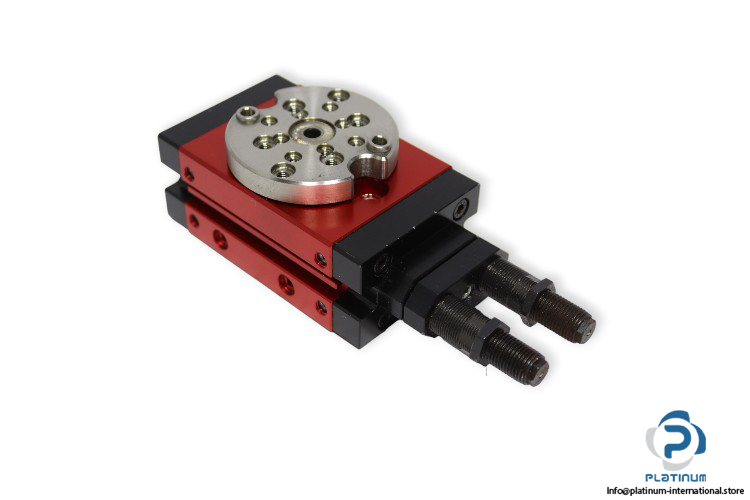

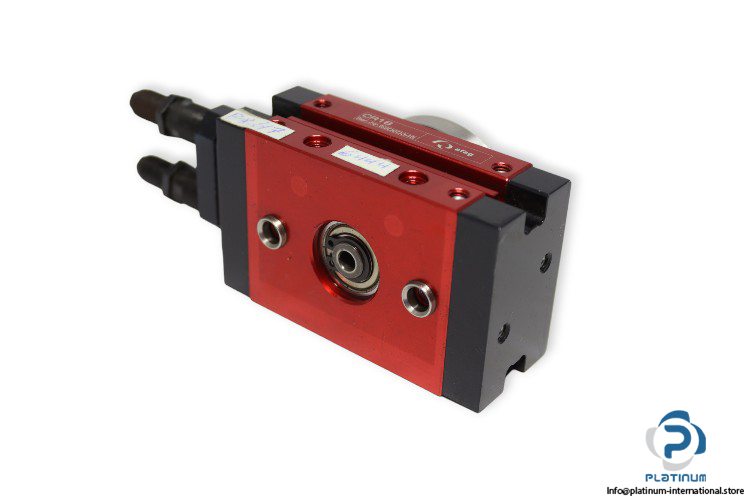

Afag CR16 Rotary Module
Manufacturer: AFAG
Type: Rotary Module
Model: CR16
Order No.: 50112941
Fluid: Compressed Air
Attachment grid: 48 mm
Attachment thread: M6
Working Pressure: 6 +/- 2 bar
Air consumption (180°): 0.0018 NL
Min. rotation time 180°: 0.27 s
Angle of Rotation: 0 … 180°C
Positions: 2
Pneumatic Connection: M5
Ambient Temperature Range: 0… 50°C
