AIR Torque FA AT401U S12 A Pneumatic Actuator
New
In stock1 unitReady to ship
Pneumatic Actuator
A quarter-turn pneumatic actuator supplied with an ATEX-certified explosion-proof limit switch box, designed for precise valve control in hazardous and industrial environments.5211ActuatorAirAtexAutomationENExplosionGuardboxIndustrialISOLimitPneumaticProofQuarterSwitchTorqueTurnValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

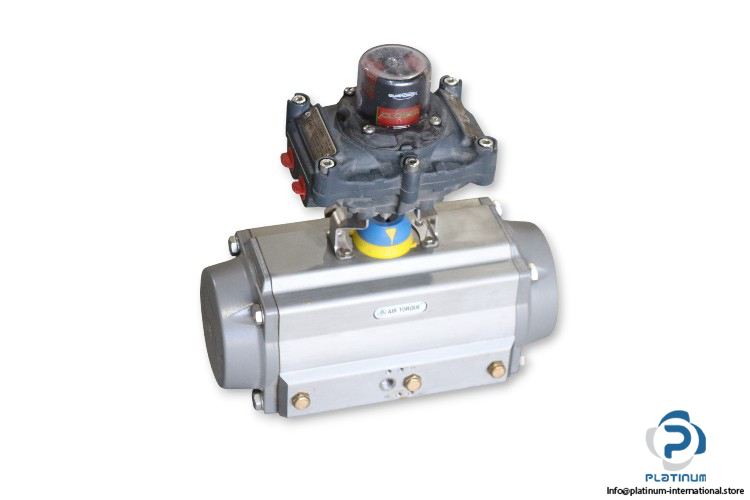

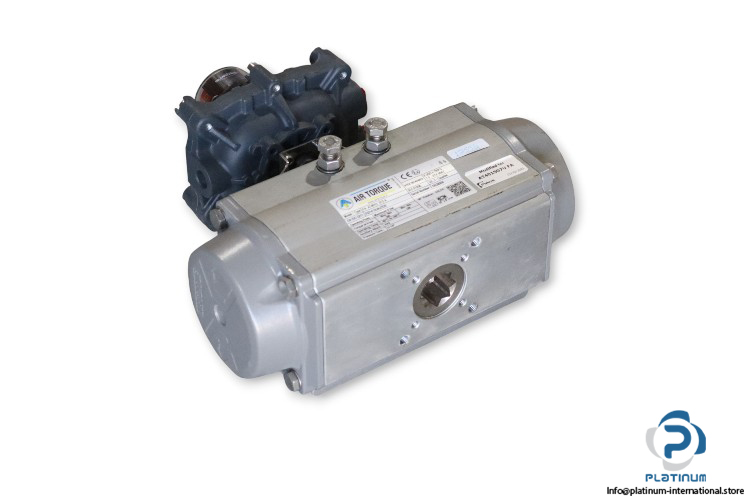

AIR TORQUE FAAT401US12A Pneumatic Actuator with Explosion-Proof Limit Switch Box
A heavy-duty pneumatic actuator designed for precise quarter-turn valve automation in industrial environments. This unit is supplied complete with an explosion-proof limit switch box, making it suitable for hazardous areas and critical process control applications. Manufacturer: AIR TORQUE
Type: Pneumatic Actuator

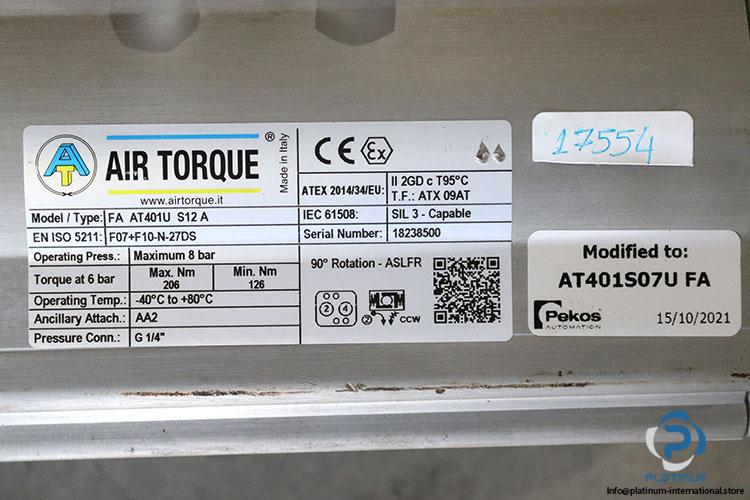

Model: FAAT401US12A
Part No.: F07+F10-N-27DS
Serial Number: 18238500
Modified To: AT401S07U FA
Torque @ 6 bar:
| Rotation Angle | 90° |
| Operating Pressure | Max. 8 bar |
| Maximum Torque | 206 Nm |
| Minimum Torque | 126 Nm |
| Temperature Range | -40°C to +80°C |
| Air Connection | G 1/4 |
| Standard | EN ISO 5211 |

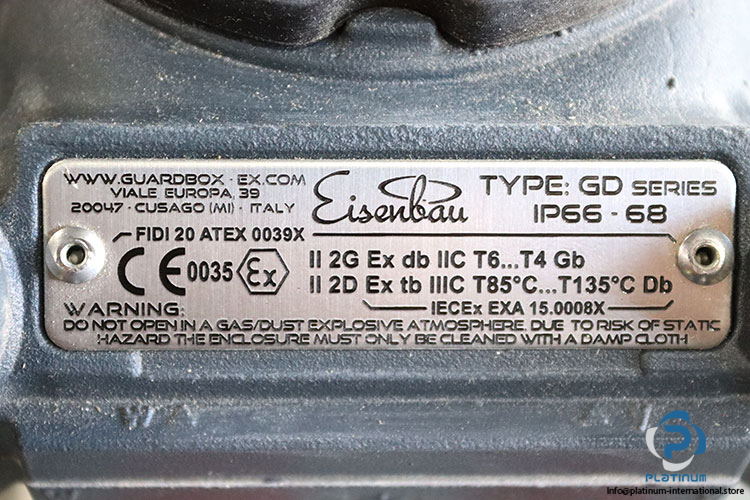

| Attached Limit Switch Box Manufacturer | Guardbox / Eisenbau |
| Series | GD Series |
| Code | 41344 |

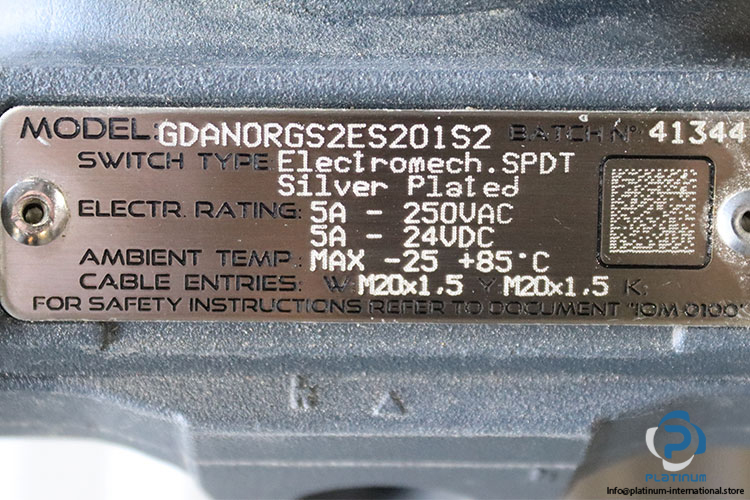

| Switch Type | Electromechanical SPDT (Silver Plated Contacts) |
| Electrical Rating | 5A @ 250VAC / 5A @ 24VDC |
| Ambient Temperature | -25°C to +85°C |
| Cable Entries | 2 × M20 × 1.5, 1 × M20 × 1.5 (Auxiliary) |
| Material | Aluminum |
| Enclosure Protection | IP66 “ IP68 |
| ATEX Certification | II 2G Ex db IIC T6 / T4 Gb |
