Alcatel ACT 200 T Turbo Pump Controller
Used
Available on request
999,99$
Alcatel Turbo Pump Controller ACT 200T with multiple control features including rotational speed, venting, auto start, and maintenance schedule. Offers RS 232/485 interfaces for PC/PLC controlled processes.
232485AdjustableAlcatelAutoControlControllerCurrentIndustrialInterfacesMaintenancemotorPc/PlcpumpRemoteRSScheduleStartTurboVenting
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Alcatel Turbo Pump Controller ACT 200T
Alcatel Turbo Pump Controller ACT 200T is a versatile and reliable pump controller, offering precise control over various pump operations. It is designed to manage rotational speed, venting, auto start, start delay, and maintenance schedules with ease. Below are the key technical specifications:
- Manufacturer: Alcatel
- Type: Turbo Pump Controller
- Model: ACT 200T

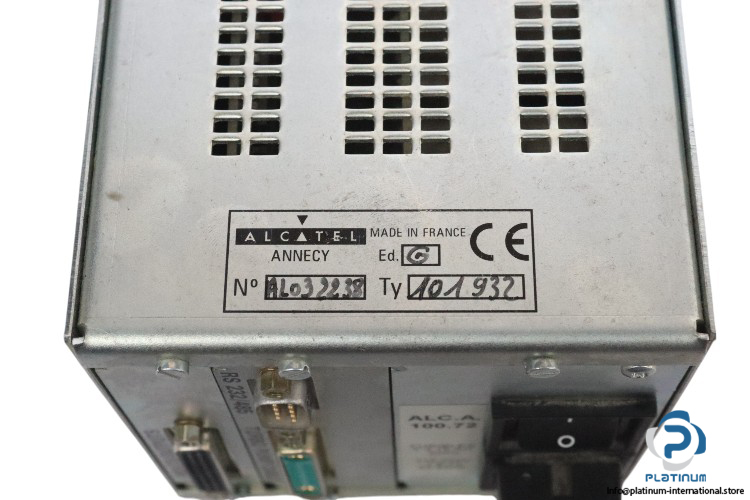

- Part No.: AL032238 / 101G32 / ALC.A.100.72
Technical Data:
- Nominal Voltage: 115 to 230 V
- Frequency: 48 to 63 Hz
- Current: 1.8 to 1 A
- Delayed Fuses: 3.15 A at 250V

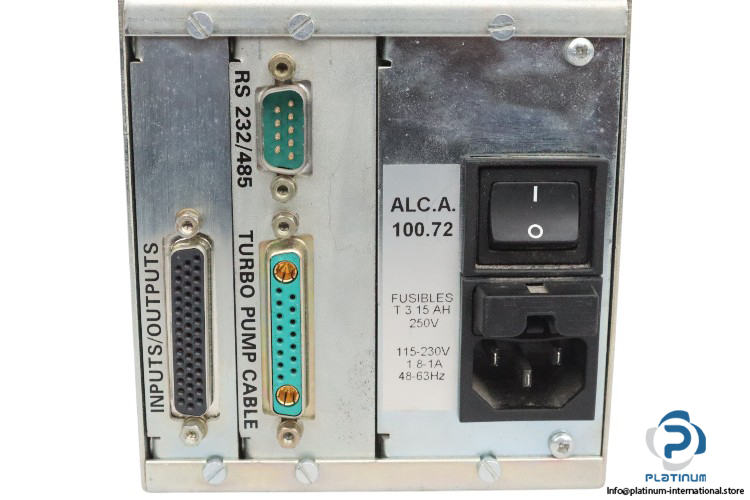

- Multiple Interfaces: PC/PLC controlled processes via RS 232/485 (configurable), Remote control
- Control of:
- Rotational speed
- Venting
- Auto start
- Start delay
- Maintenance schedule
- Inputs:
- Remote start/stop
- Remote stand-by
- Remote interlock
- Outputs:
- Pump starting
- Pump at speed
- Stand-by on
- Venting valve on/off
- Power supply of air cooling fan
- Selectable 0-10 volts output
- Ambient Operating Temperature: max. 50°C
- Dimensions: 217 x 107 x 128.4 mm
