Alfa ALFA1600APB Filter AND FAN Unit
New
In stock2 unitsReady to ship
Filter and Fan Unit
Alfa ALFA1600APB Filter and Fan Unit operates at 230 V AC with 22 W nominal output. Includes Sunon DP200A Axial Fan, providing 55 m³/h airflow and IP54 protection for industrial ventilation and filtration applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

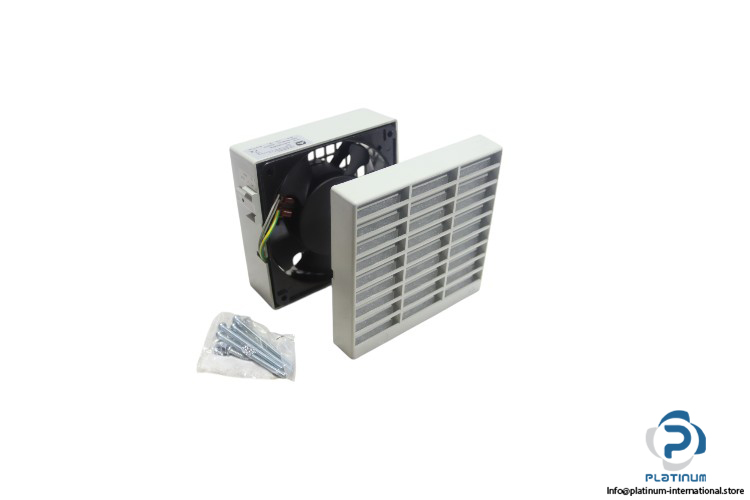

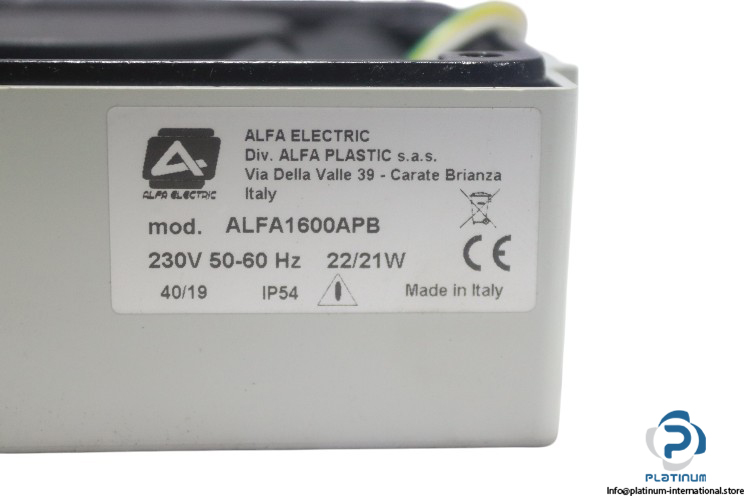

Alfa Filter and Fan Unit ALFA1600APB
The Alfa Filter and Fan Unit ALFA1600APB is designed to provide efficient air filtration and ventilation. With a compact design and reliable performance, it operates with a nominal output of 22 W at 230 V AC rated voltage.
Manufacturer: Alfa
Model: ALFA1600APB
Type: Filter and Fan Unit
Sunon DP200A Axial Fan
Technical Information:
| Rated Voltage | 230 V AC |
| Frequency | 50 to 60 Hz |
| Current | 0.12/ 0.10 A |
| Nominal Output | 22/21 W |
| Dimension | 130 x 130 mm |
| Attachment | SUNON DP200A AXIAL FAN |
| Frame Shape | Square Frame |
| Dimension | 120x120x38 mm |
| No. of Blades | 3 |
| Direction | Push |
| Bearing | Ball bearing |
| Rated Voltage | 220 to 240 V |
| Frequency | 50/60 Hz |
| Current | 0.12/0.14 A |
| Power | 22/21 W |
| Flow Rate | 55 m³/h |
| Inverter | Without |
| Blade Material/Fan Housing Material | Plastic/metal |
| IP Rate | IP54 |
| No. of Wires | 3 |
