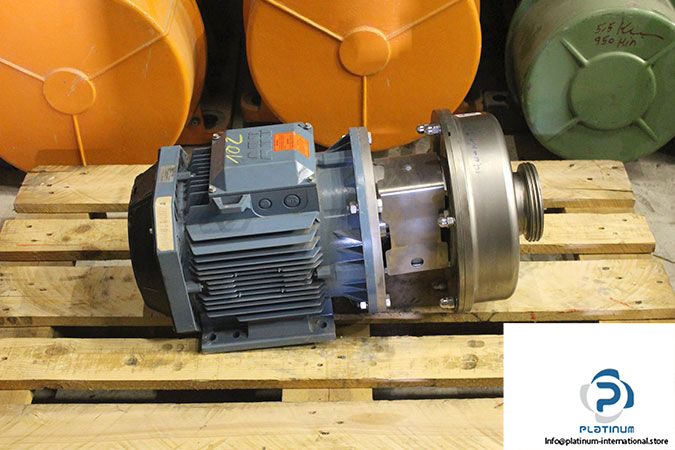

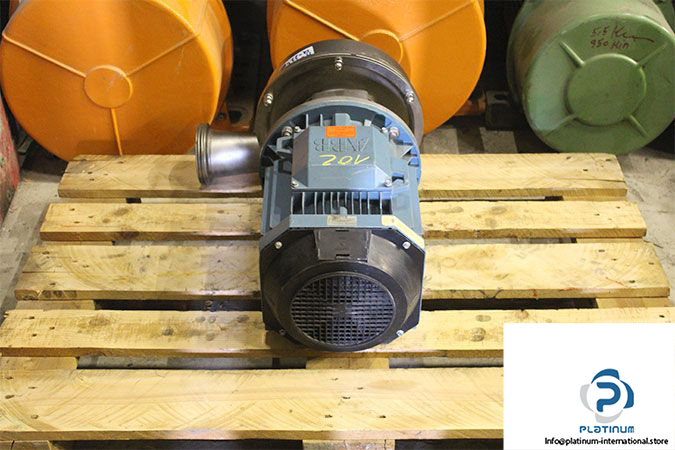

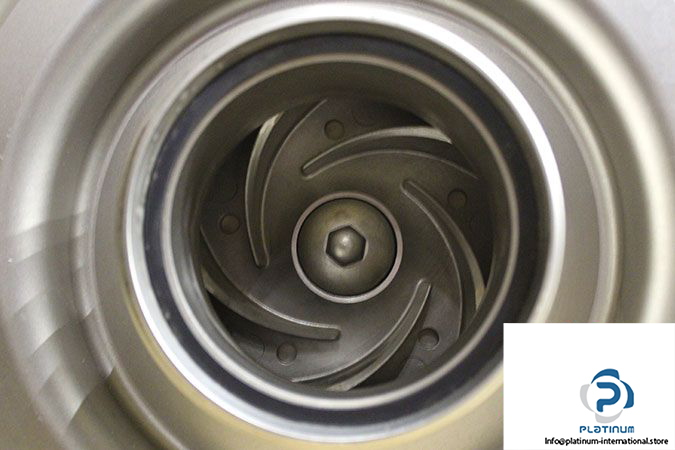

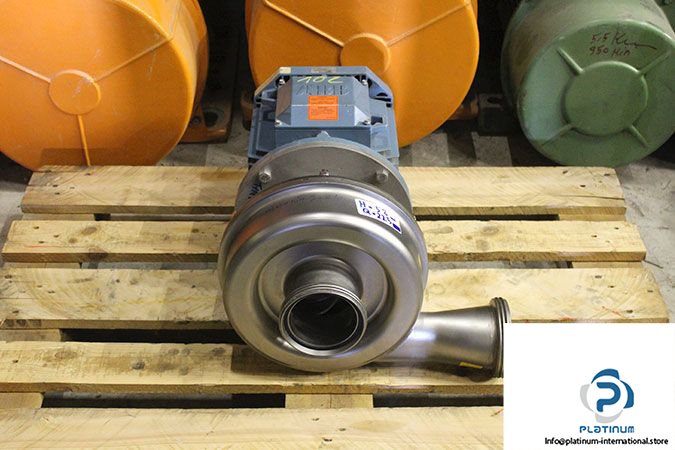

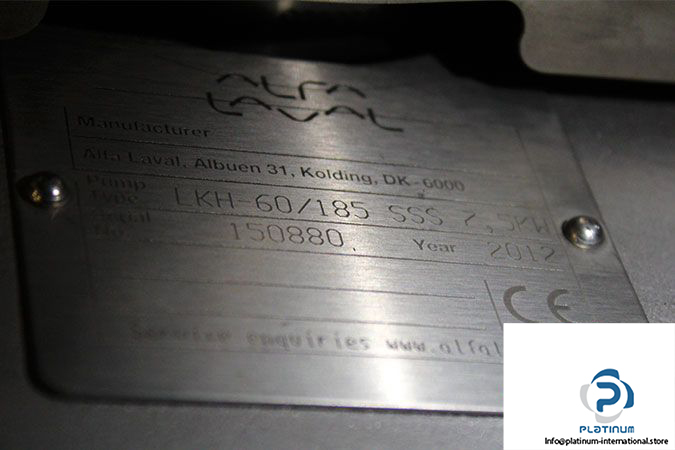

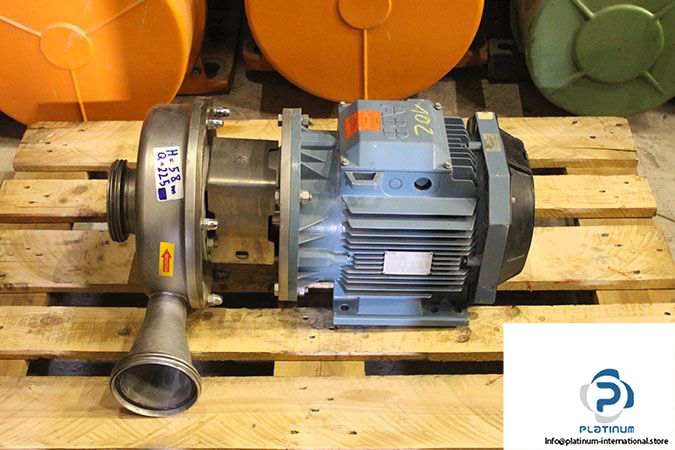

Alfa Laval LKH-60/185 SSS Centrifugal Pump

Manufacturer: Alfa Laval

Type: Centrifugal Pump

Model: LKH-60/185 SSS

Max Inlet Pressure [bar]: 10

Temperature Range [°C]: -10…+140

Rated Power [kW]: 2.5

Flow Rate [m³/h]: 225

Max. Head [m]: 58

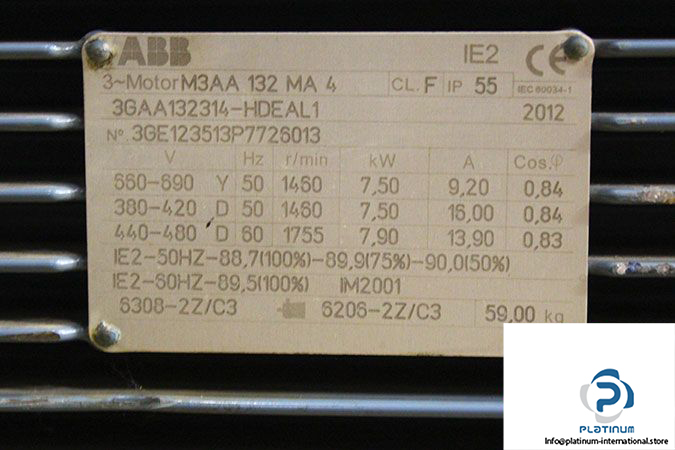

Attachment: ABB M3AA 132 MA 4 THREE PHASE E-MOTOR

Manufacturer: ABB

Type: Three Phase E-Motor

Model: M3AA132MA4

Rated Voltage [V]: 380-420/660-690 Delta/Star

Rated Current [A]: 16.0/9.2

Rated Power [kW]: 7.5/7.5

Rated Speed [rpm]: 1460/1460

Power Factor [%]: 0.84/0.84

Frequency [Hz]: 50

Rated Voltage [V]: 440-480 Delta

Rated Current [A]: 13.9

Rated Power [kW]: 7.9

Rated Speed [rpm]: 1755

Power Factor [%]: 0.83

Frequency [Hz]: 60

Protection Class [IP]: 55

Insulation Class: F
