Alldos 221-27-10013 Dosing Pump

Name: ALLDOS 221-27-10013 DOSING PUMP
SKU: 1090486
Availability: LimitedAvailability

New

In stock1 unitReady to ship

Electro Mechanical Dosing Pump

Alldos 221-27-10013 dosing pump with 27 L/hr flow rate and 10 bar pressure, supplied with Siemens 1LA7060 three-phase motor for reliable industrial dosing applications. Ideal for chemical dosing systems, water treatment, and precision fluid control installations.

Manufacturer

ALLDOS

SKU

1090486

Category

Others

Condition

New

1LA7060 221-27-10013 AC Alldos chemical Control Dosing Electro Fluid Industrial Mechanical motor Phase pump Siemens three

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

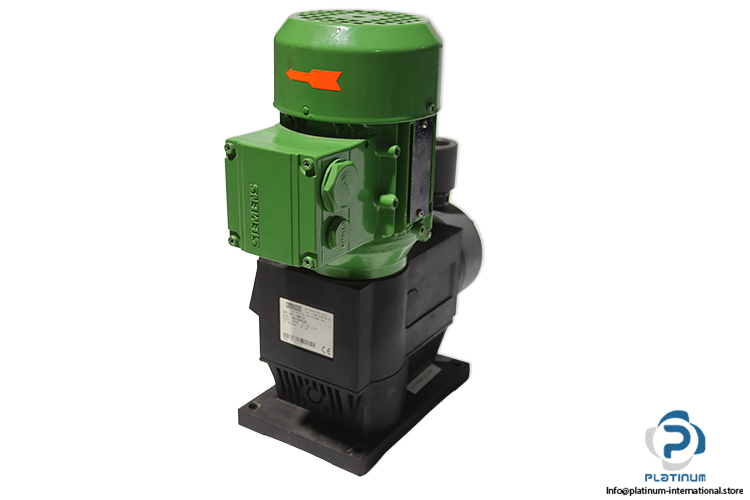

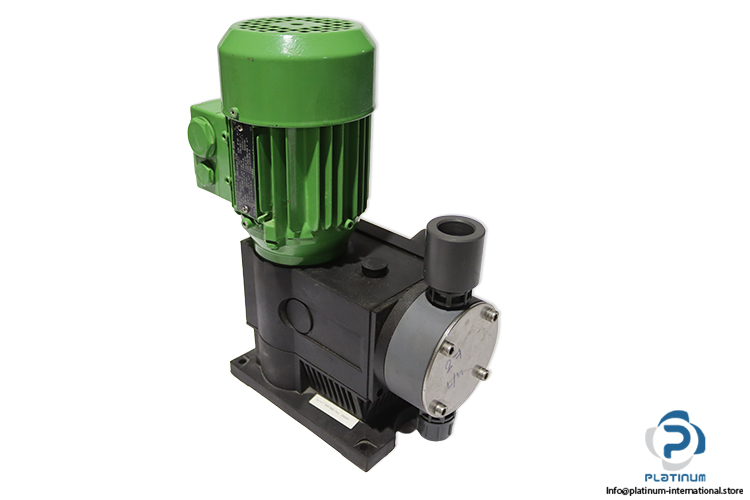

Alldos 221-27-10013 Electro Mechanical Dosing Pump

The Alldos 221-27-10013 is an electro mechanical dosing pump designed for precise and controlled fluid dosing in industrial applications. The unit is supplied with a Siemens three-phase AC motor for reliable and efficient operation.

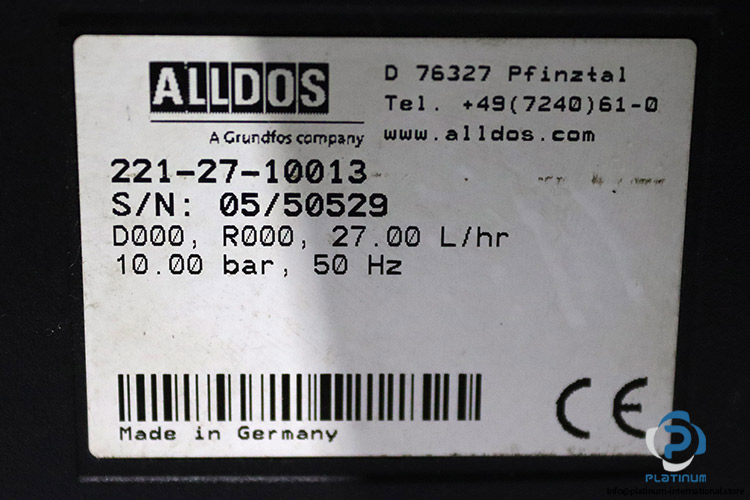

Manufacturer: Alldos

Type: Electro Mechanical Dosing Pump

Model: 221-27-10013

Serial No.: 05/50529

Code: 5047896 000007

Attachment

Electrical Data “ 50 Hz

Electrical Data “ 60 Hz

Motor Specifications

Frequency	50 Hz
Rated Flow Rate	27.00 L/hr
Maximum Pressure	10 bar
Additional Marking	D000, R000
CE Marking	Present
Motor Manufacturer	Siemens
Motor Type	Three-Phase AC Motor
MNR	1LA7060-4AB99-ZX30
Code	321411803 / 45.10105
Voltage	230/400 V DELTA/STAR
Power	0.09 kW
Current	0.64 / 0.37 A
Speed	1365 r/min
Power Factor (cos Ï†)	0.69
Voltage Range	220“240 / 380“420 V STAR/DELTA
Current Range	0.62“0.66 / 0.36“0.38 A
Voltage	230/400 V STAR/DELTA
Power	0.09 kW
Current	0.57 / 0.33 A
Speed	1640 r/min
Power Factor (cos Ï†)	0.72
Voltage Range	220“240 / 380“480 V STAR/DELTA
Maximum Current	0.57 / 0.35 A
Standard	IEC/EN 60034
Frame Size	63M
Protection Class	IP65
Insulation Class	F
Mounting	IM V18
