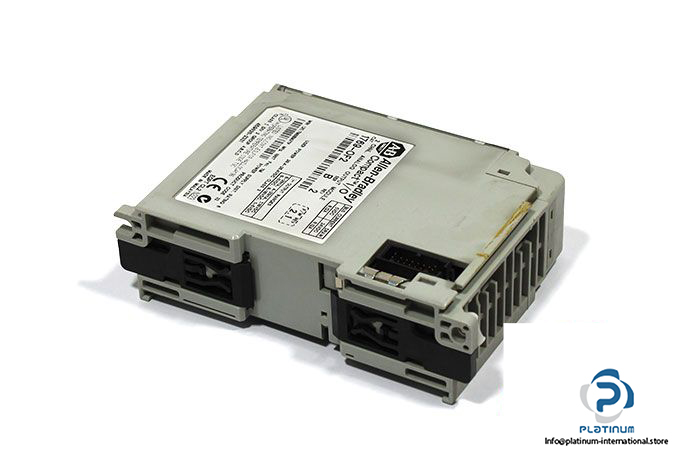

Allen-Bradley 1769-OF2 I/O Module

Manufacturer: Allen-Bradley

Type: I/O Module

Model: 1769-OF2

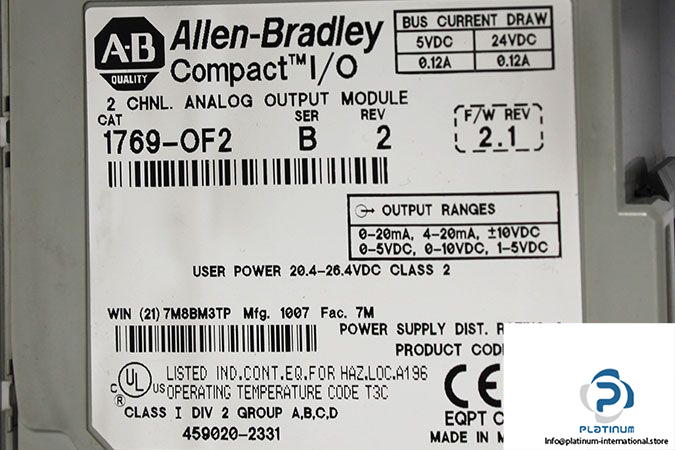

Part No: 459020-2331

Output Range: ±10V / 0…10V / 0…5V / 1…5V / 0…20 mA / 4…20 mA

Full Scale Range: ±10.5V / -0.5…10.5V / -0.5…5.25V / 0.5…5.25V / 0…21 mA / 3.2…21 mA

Rated Working Voltage: 30V AC/30V DC

No. of Output: 2 single-ended

Current Draw @ 5.1V: 120 mA

Current Draw @ 24V: 120 mA

Converter Type: Delta Sigma

Heat Dissipation, Max: 2.63 W

Conversion Rate (All Channels), Max: 2.5 ms

Step Response to 63%: 2.9 ms

Capacitive Load: 1 µF

Output Impedance: 15 Ω

Vibration: 10…500 Hz

Operating Temperature: 0…60 °C

Dimensions: 118 X 35 X 87 mm

Weight: 0.18 kg
