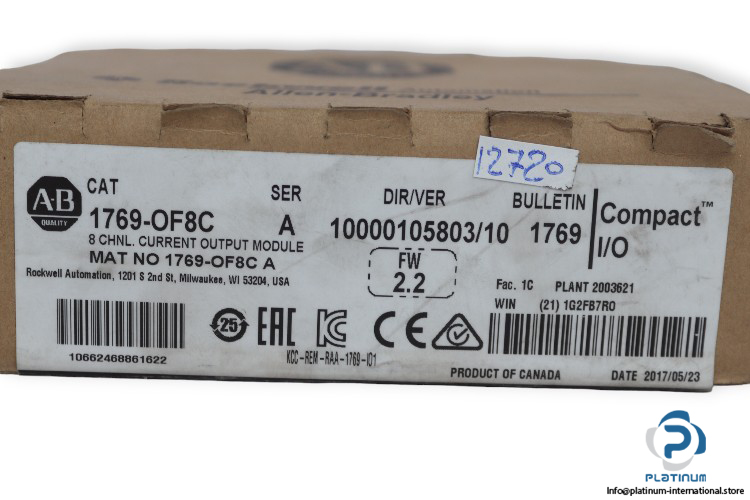

Allen Bradley 1769-OF8C Analog Output Module

Manufacture: Allen Bradley
Type: Analog output Module
Model: 1769OF8C
Part No: 10000105803/10
Series: A

Rated working voltage: 30 V AC/DC
No. of Analog Outputs (AO): 8 single-ended
Output range 0…20 mA, 4…20 mA
Full-scale range: 0…21 mA, 3.2…21 mA
Resolution: 16 bits (unipolar), 0…20 mA: 15.91 bits, 0.323 µA/bit, 4…20 mA: 15.59 bits, 0.323 µA/bit
Bus current draw: 5V DC, 145 mA/24V DC, 185 mA
Heat dissipation, max: 2.69 W
Conversion rate (all channels), max: 5 ms
Step response to 63%: < 2.9 ms
Resistive load on current output: 0…500 Ω (includes wire resistance)
Inductive load (current outputs), max: 0.1 mH
Short-circuit protection, max: 21 mA
Slot width: 1
Operating Temperature: 0 … 60 °C
Dimensions: 118 x 35 x 87 mm
