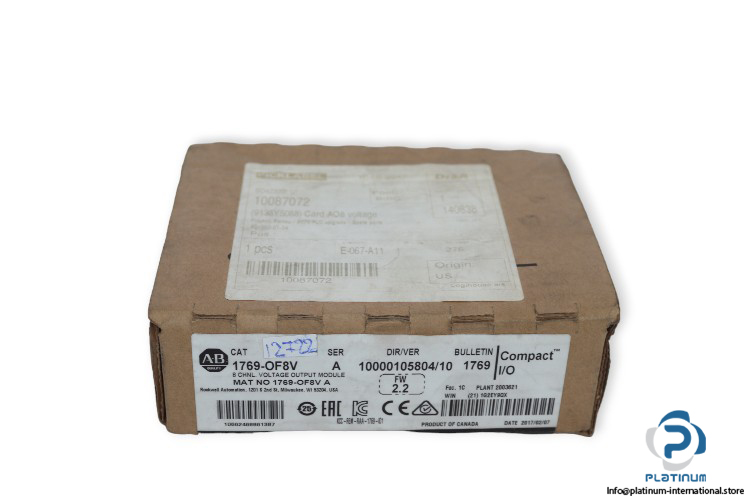

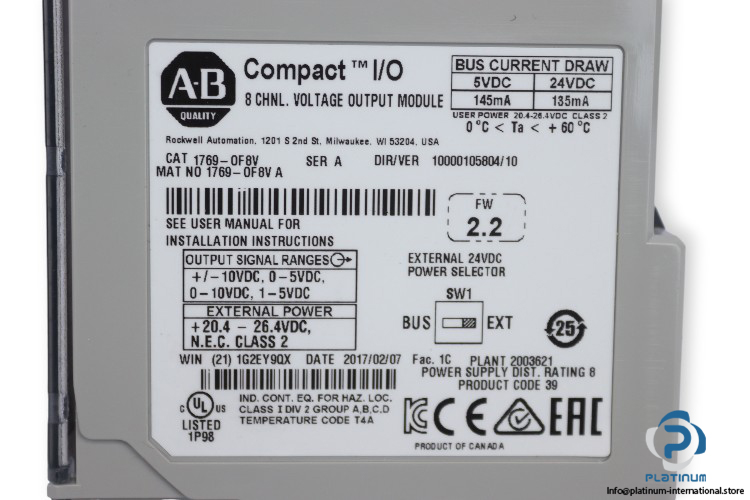

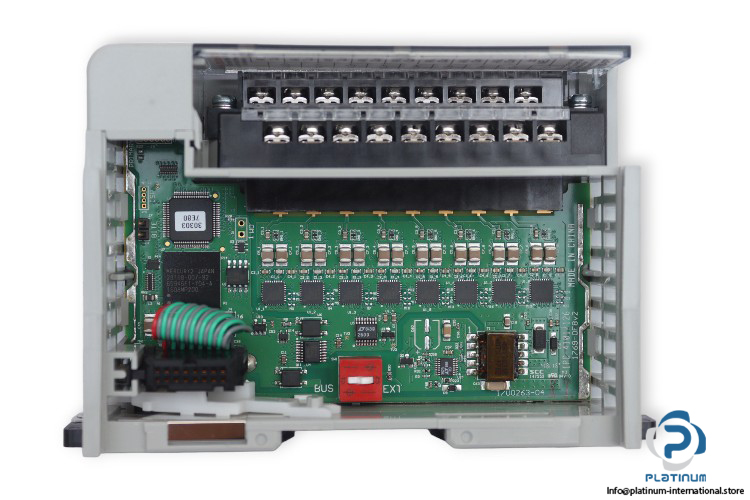

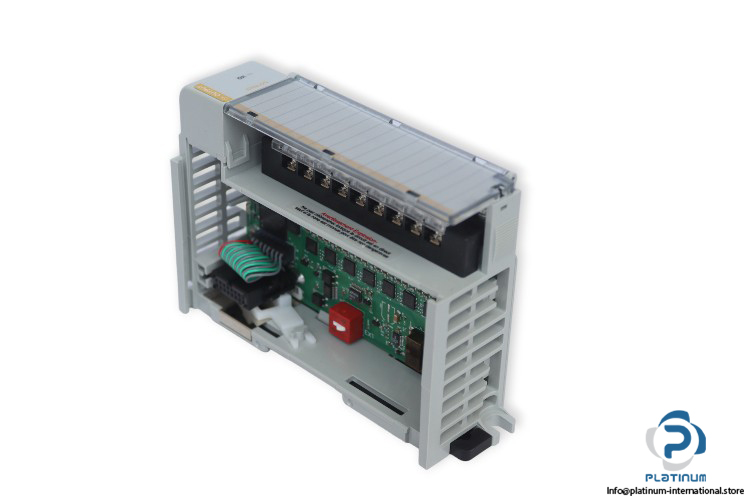

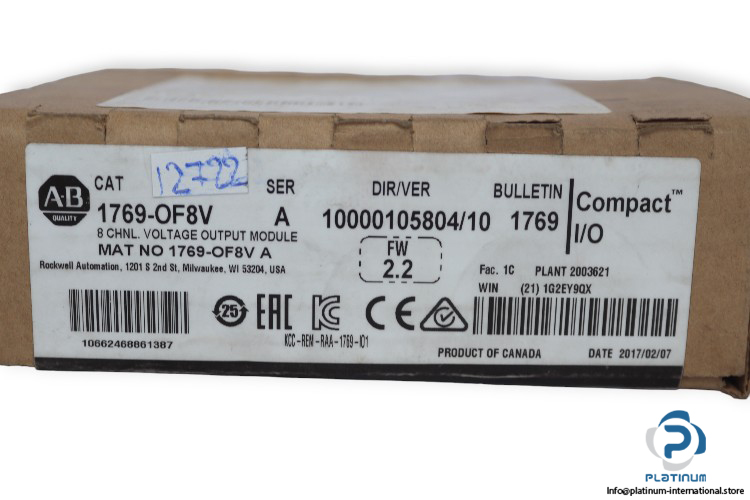

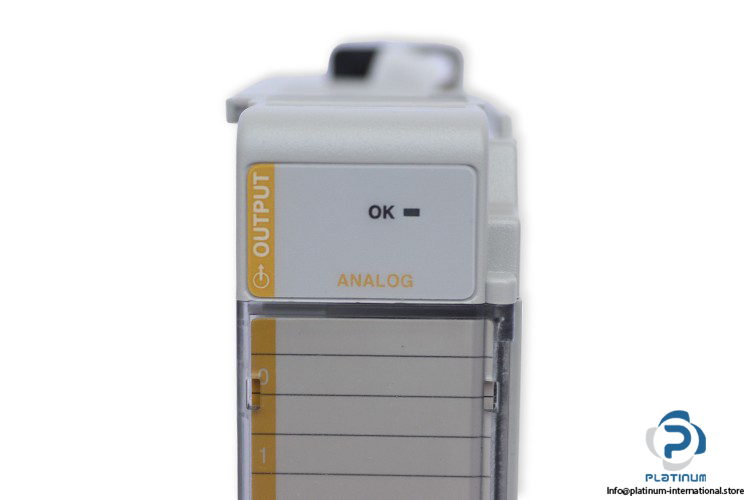

Allen Bradley 1769-OF8V Analog Output Module

In stock1 unitReady to ship
Manufacture:
Allen Bradley
Type:
Voltage output analog Module
Model:
1769OF8V
Part No:
10000105804/10
Series:
A
Manufacturer
ALLEN BRADLEY
SKU
1043975
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacture: Allen Bradley
Type:
Voltage output analog Module
Model: 1769OF8V
Part No:
10000105804/10
Series:
A

Rated working voltage: 30 V AC/DC
Optional voltage range: 20.4 … 26.4V DC
No. of Analog Outputs (AO):
8 single-ended
Output range:
±10V, 0…10V, 0…5V, 1…5V
Full-scale range:
±10.5V, -0.5…10.5V, -0.5…5.25V, 0.5…5.25V
Resolution:
16 bits plus sign (bipolar), ±10V DC: 15.89 bits, 330 µV/bit, 0…10V DC: 14.89 bits, 330 µV/bit, 0…5V DC: 13.89 bits, 330 µV/bit, 1…5V DC: 13.57 bits, 330 µV/bit
Bus current draw: 5V DC, 145 mA, 24V DC, 135 mA
Heat dissipation, max: 2.16 W
Conversion rate (all channels), max:
5 ms
Step response to 63%:
< 2.9 ms
Operating Temperature:
0 … 60 °C
Dimensions:
118 x 35 x 87 mm
