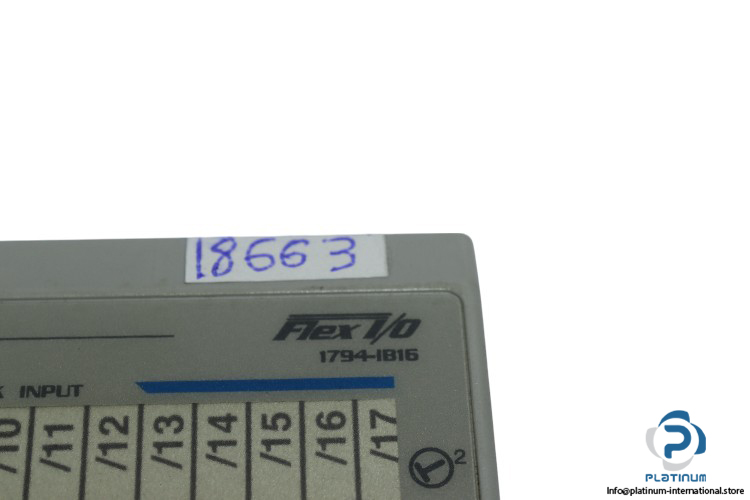

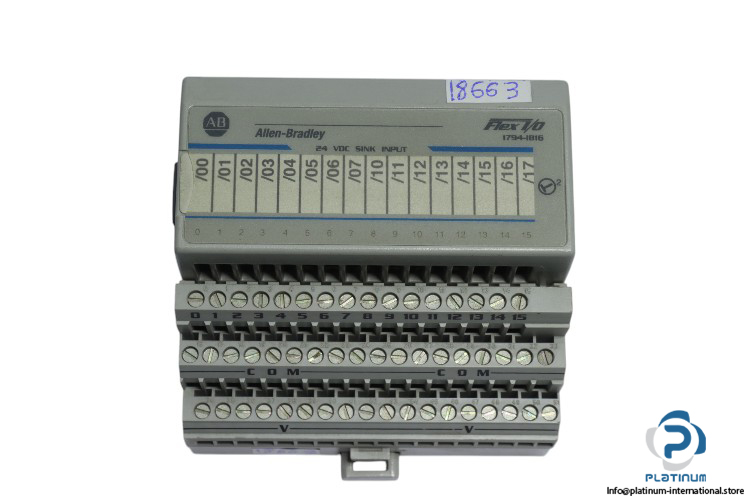

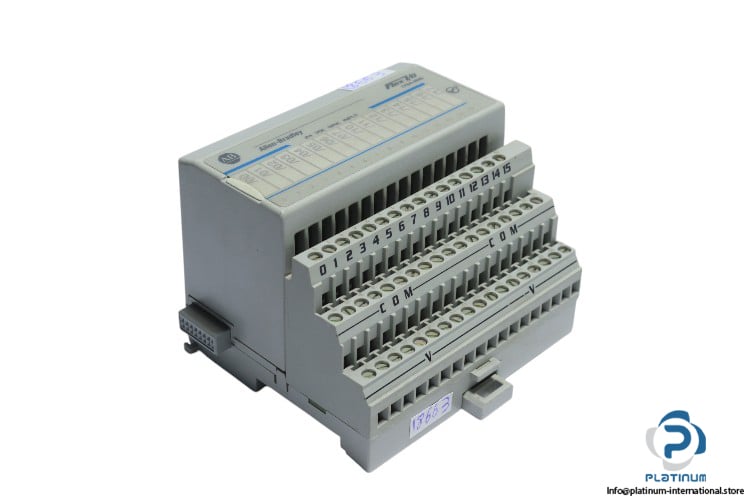

Allen-Bradley 1794-IB16 Digital Input Module

In stock1 unitReady to ship

49,99$

Digital Input Module

The Allen-Bradley 1794-IB16 Digital Input Module features 16 current-sinking inputs, 10-31.2V DC on-state voltage, 2-12.0 mA on-state current, and 50V isolation voltage. With a power dissipation of 6.1 W and an operating temperature range of -20°C to +55°C, it is perfect for high-speed data collection and processing in industrial control systems.

Manufacturer
ALLEN-BRADLEY
SKU
1059650
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Allen-Bradley 1794-IB16 Digital Input Module

The Allen-Bradley 1794-IB16 Digital Input Module is designed for use in industrial control systems requiring high-performance digital input capabilities. With 16 current-sinking inputs, this module supports reliable and precise input signal processing. It features an on-state voltage range of 10 to 31.2V DC and an on-state current range of 2 to 12.0 mA, providing flexibility in signal detection. The off-state voltage and current limits are 5.0V DC and 1.5 mA, respectively. This module also provides isolation voltage of 50V, ensuring protection from electrical surges and faults. It has a maximum power dissipation of 6.1 W at 31.2V DC, and is designed for use in environments with operating temperatures ranging from -20 to +55°C.

Manufacturer: Allen-Bradley

Type: Digital Input Module

Model: FLEX™ I/O 1794-IB16

This module is ideal for use in industrial control systems, providing reliable, high-speed digital inputs for a variety of applications requiring accurate data collection and processing.

Number of Inputs16, current sinking
On-state Voltage10 to 31.2V DC
On-state Current2 to 12.0 mA
Off-state Voltage Max.5.0V DC
Off-state Current Max.1.5 mA
Nominal Input Impedance4.6 kΩ
Isolation Voltage50V
Flexbus Current30 mA @ 5V DC
Power Dissipation Max.6.1 W @ 31.2V DC
Operating Temperature-20°C to +55°C
Dimensions (HxWxD)94 x 94 x 69 mm
