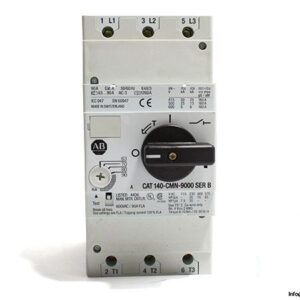

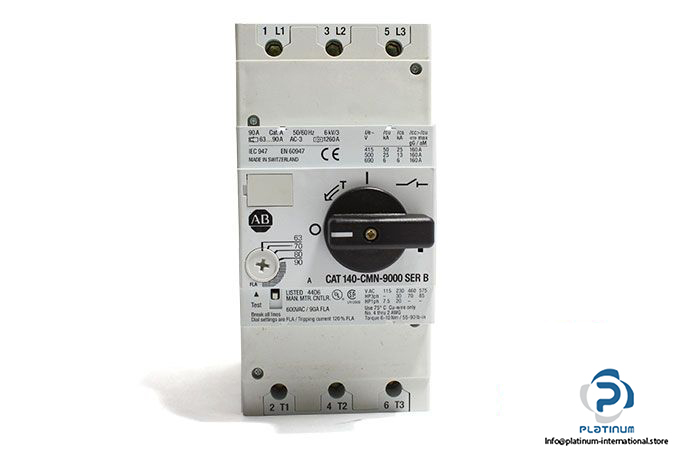

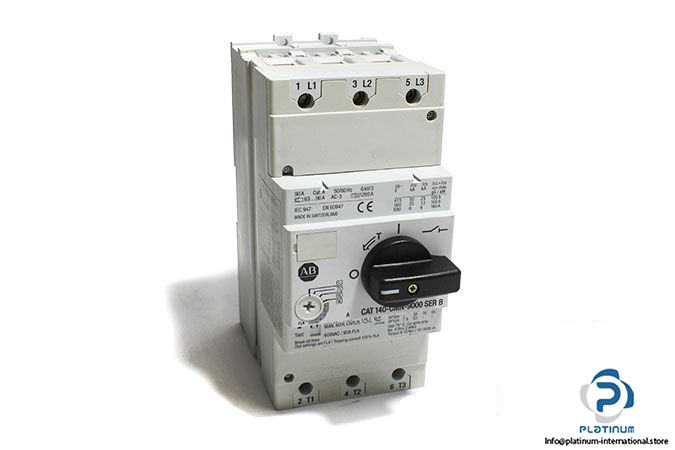

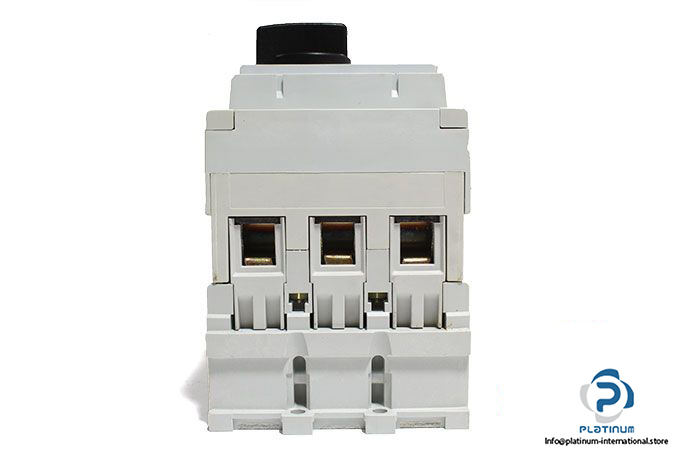

Allen-Bradley 140-CMN-9000 Motor Protection Circuit Breaker

Manufacturer: Allen-Bradley

Type: Motor Protection Circuit Breaker

Model: 140-CMN-9000 SER B

Number of Poles: 3

Rated Current (I_e): 90 A

Current Adjustment Range: 63 … 90 A

Magnetic Trip Current: 1260 A

Rated Power: 45 kW

Breaking Capacity (I_cu):

100 kA (230 / 240 V AC)

50 KA (400 / 415 V AC)

6 KA (690 V AC)

Rated Insulation Voltage (U_i): 600 V AC

Rated Impulse Voltage (U_imp): 6 kV

Rated Frequency: 50 / 60 Hz

Magnetic Release: Fixed

Dimensions ( W x D x H): 79.5 x 140.6 x 168 mm

Operating Temperature: -25 … 60 °C

Weight: 2.04 kg
