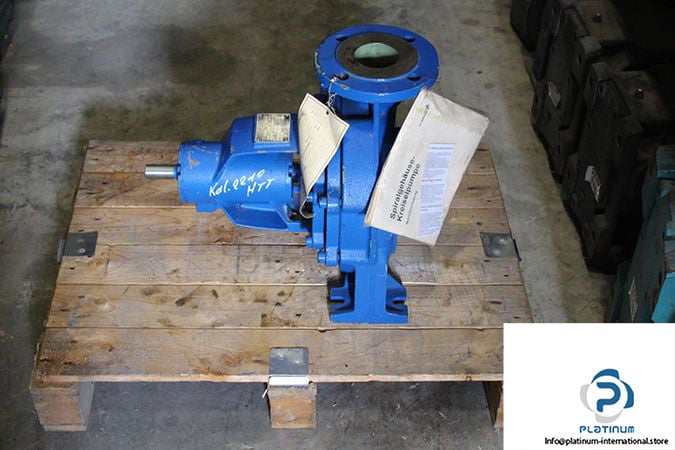

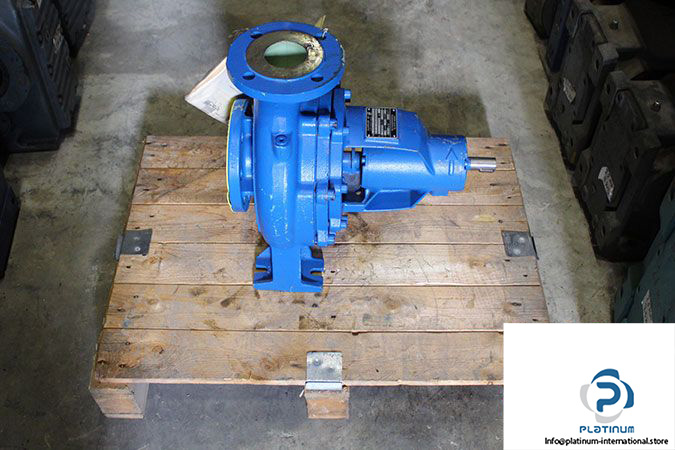

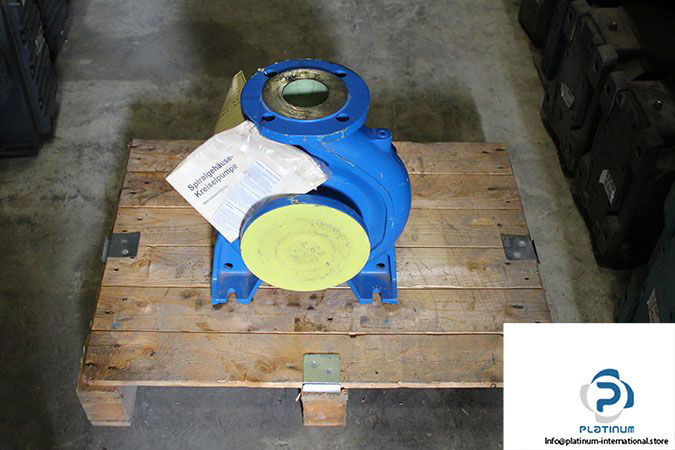

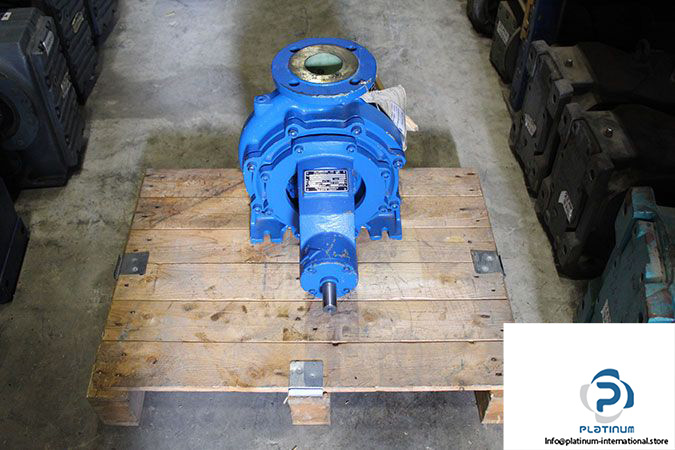

Allweiler AG NT 65-200/20 Centrifugal Pump

Manufacturer: Allweiler AG

Type: Centrifugal Pump

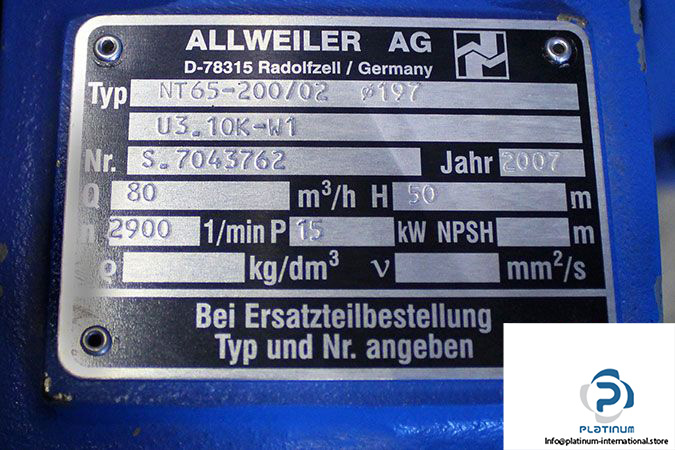

Model: NT65-200/20

Maximum Head [m]: 50

Flow Rate [m³/h]: 80

Rated Speed [rpm]: 2900

Rated Power [kW]: 15

Frequency [Hz]: 50

Viscosity [mm²/s]: 1,0

Density [kg/dm³]: 1,00

Delivery Branch Nominal Width[mm]: 65

Actual Impeller Diameter [mm]: 197

Rated Impeller Diameter [mm]: 200

Discharge Diameter [mm]: 66

Suction Diameter [mm]: 86

Ambient Temperature [°C]: 20

Weight [kg]: 54.2
