AMI Elektronik BDG 6360-2-10-30-W126-0400-65// Incremental Encoder
Used
Available on request
150,00$
PRECISION INDUSTRIAL ENCODER
AMI ELEKTRONIK BDG 6360-2-10-30-W126-0400-65// encoder offers 400 pulses, IP64 protection, and operates up to 10,000 rpm, ideal for precision motion systems.10“30V100004006360AMIAutomationBDGElektronikEncoderforHigh-SpeedIndustrialIP64MotionPrecisionPulseRotaryrpmshaft
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

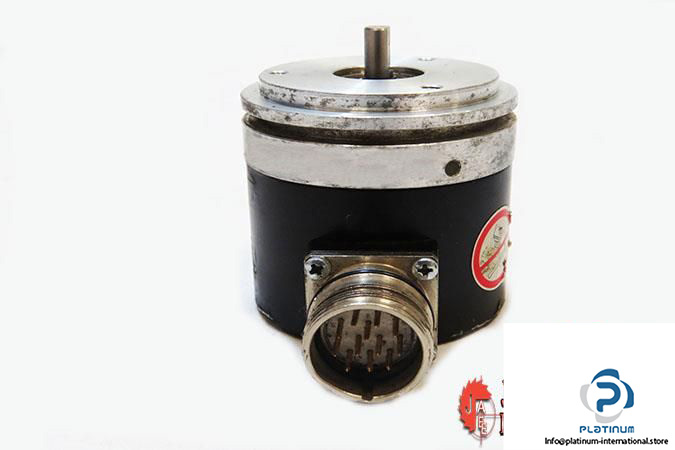

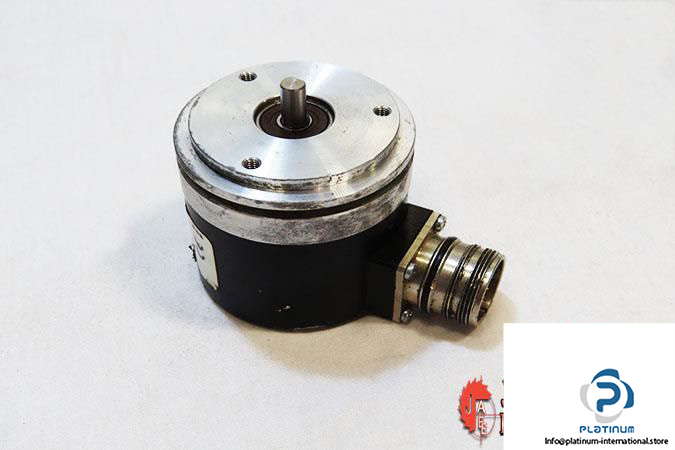

AMI ELEKTRONIK BDG 6360-2-10-30-W126-0400-65// ENCODER
The AMI ELEKTRONIK BDG 6360 encoder is engineered for precision and high-speed rotary motion detection in industrial automation systems. With a compact 58 mm housing and reliable impulse output, this encoder ensures accurate feedback and optimal performance in demanding environments.
Manufacturer: AMI ELEKTRONIK
Type: Encoder
Model: BDG 6360-2-10-30-W126-0400-65//
Article Number: 41100173-00400
Serial Number: 023511303
| Operating Voltage | 10 “ 30 V |
| Impulse | 400 |
| Scale | 58 mm |
| Shaft Diameter | 6 / 10 mm |
| Pulse Rate Range | up to 10000 ppr |
| Shaft Load | Axial 10 N, Radial 20 N |
| Max. Rotating Speed | 10,000 rpm |
| Working Temperature | 0°C to +80°C |
| Ingress Protection | IP 64 on shaft |
| Current Consumption (No Load) | Max. 100 mA |
| Scan Frequency | 300 kHz |
| Current Output | 20 mA |
