AMK DT10-127-20-RBF Convection-Cooled Servo Motor
Used
In stock1 unitReady to ship
SERVO MOTOR
AMK DT10-127-20-RBF is a convection-cooled servo motor offering 120 Nm standstill torque, 13.0 kW power, and IP65 protection. Designed for high-precision industrial applications.13kW24vAMKBrakeControlConvection-CooledDT10-127-20-RBFEncoderHighIndustrialIP65MotionmotorResolverServoTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

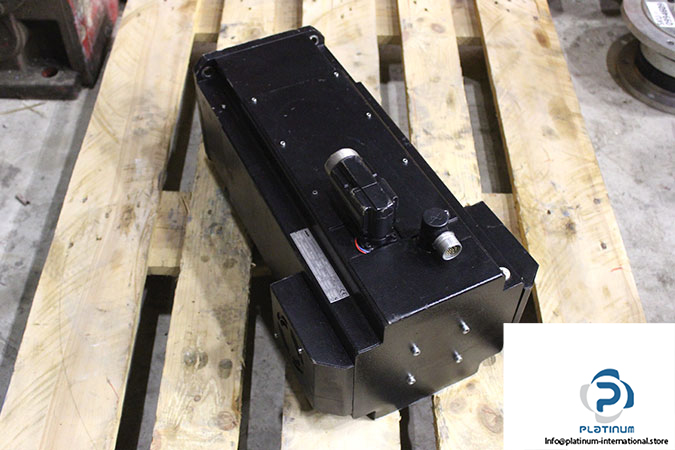

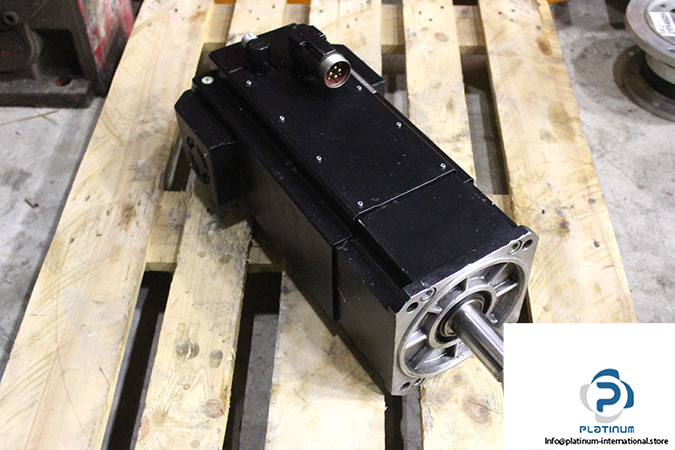

AMK DT10-127-20-RBF CONVECTION-COOLED SERVO MOTOR
The AMK DT10-127-20-RBF is a robust convection-cooled servo motor built for continuous duty in demanding industrial environments. With a high standstill torque and advanced resolver multi-turn encoder, it delivers reliable motion performance and high-precision control in automated systems.

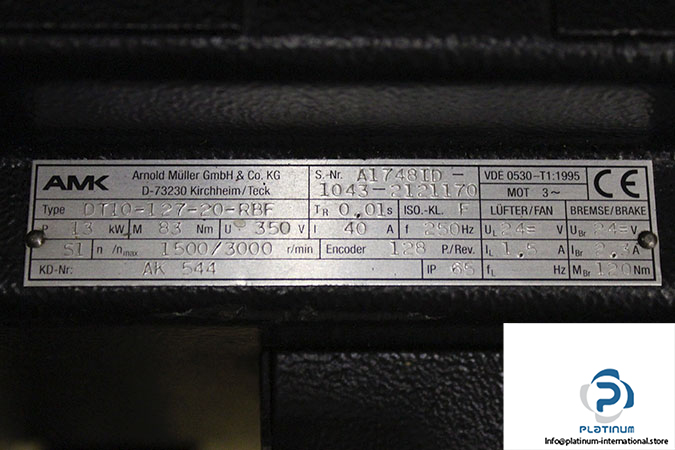

Manufacturer: AMK
Type: Convection-Cooled Servo Motor
Model: DT10-127-20-RBF
S. No: A1748ID-1043-2121170
Ref No.: AK 544
| Size | 10 |
| Continuous Standstill Torque | 120 Nm |
| Rated Torque | 83 Nm |
| Rated Current | 40 A |
| Rated Power | 13.0 kW |
| Supply Voltage | 350 V |
| Frequency | 250 Hz |
| Nominal Speed | 1500 rpm |
| Max. Speed | 3000 rpm |
| Encoder Type | Resolver, Multi-Turn |
| Number of Poles | 20 |
| Fan Voltage | 24 VDC |
| Fan Current | 1.5 A |
| Brake Voltage | 24 VDC |
| Brake Current | 2.3 A |
| Brake Torque | 120 Nm |
| Duty | S1 |
| Insulation Class | F |
| Protection Class | IP65 |
