AMT MSA30E Linear Guideway Block

Manufacturer: PMI AMT

Type: LINEAR GUIDEWAY BLOCK

Model: MSA 30 E-N

Size: 30 mm

Block Type: Flange

Load Type: Heavy Load

Accuracy Grade: N

Basic Load Ratings:

Dynamic C: 28.7 kN

Static C₀: 47 kN

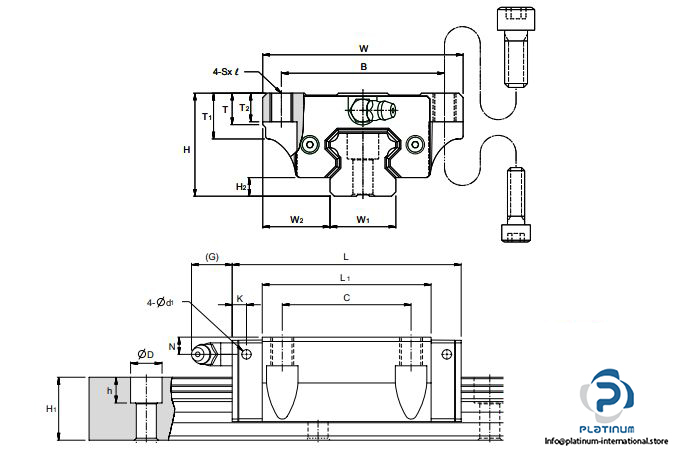

Dimensions:

Height system H: 42 mm

Width carriage W: 90 mm

Overall length carriage L: 97 mm

Weight: 1.11 kg
