Apex ATB170FH Bevel Gearbox
Used
In stock1 unitReady to ship
Spiral Bevel Gearbox
Apex ATB170FH high precision spiral bevel gearbox with 035:1 ratio, low backlash under 8 arcmin, 2-stage design, and 12 Nm torque capacity. Recommended for servo motor integration and precision automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

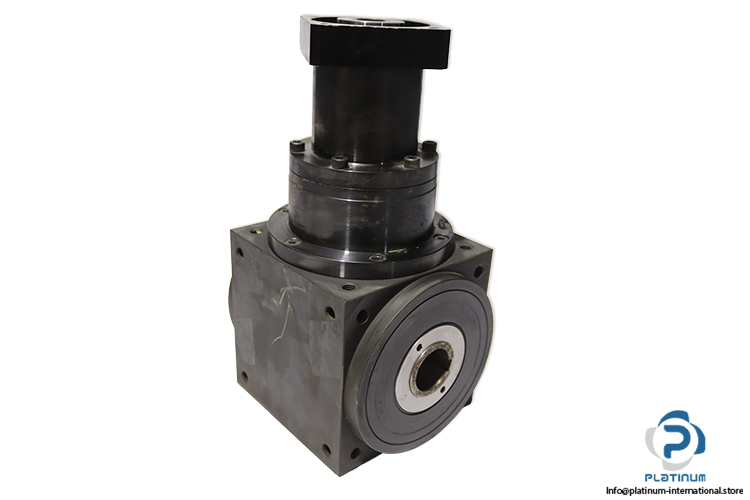

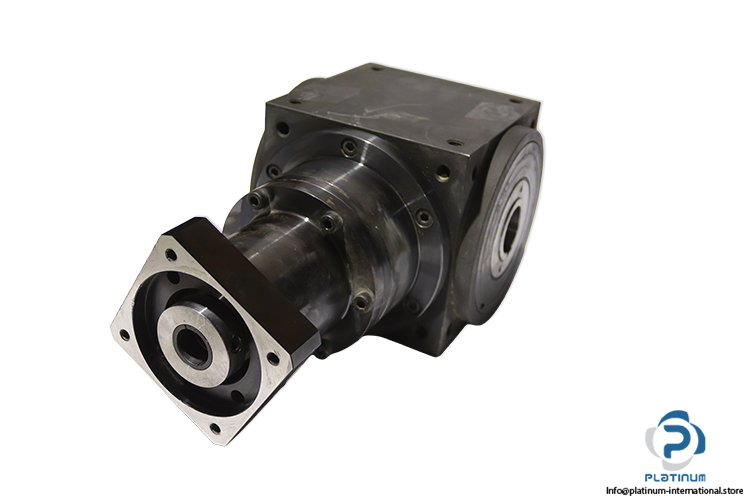

Apex ATB170FH High Precision Spiral Bevel Gearbox
The Apex ATB170FH is a high precision spiral bevel gearbox designed for accurate motion transmission, low backlash performance, and stable torque delivery in demanding industrial automation systems.

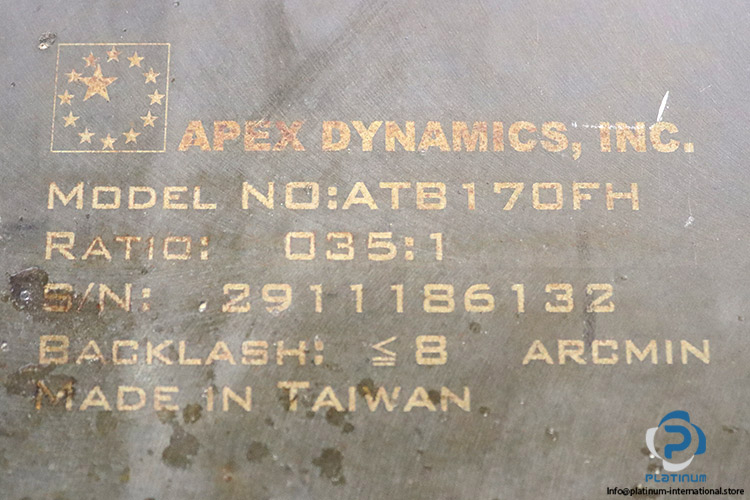

Manufacturer: Apex
Type: High Precision Spiral Bevel Gearbox
Model: ATB170FH
Serial No.: 2911186132
Suitable for precision servo motor applications, CNC machinery, robotics, and high-accuracy positioning systems.
Please contact us via Ask for assistance with any inquiries.
| Ratio [i] | 035:1 |
| Number of Stage | 2 |
| Shaft Diameter | 23 mm |
| Hollow Shaft | 39 mm |
| Flange Diameter | 105 mm |
| Backlash | Less than 8 arcmin |
| Screw | 8 x M6 |
| Moment of Inertia | 11.2 kg-cm² |
| Torque | 12 Nm |
| Housing Material | Carbon Steel |
