Armaturen DP34 Pneumatic Actuator
New
In stock1 unitReady to ship
Pneumatic Actuator
ARI-Armaturen DP 34 pneumatic actuator with diaphragm design, 65 mm stroke, extended stem fail-safe action, and 2-column mounting for industrial valve automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ARI-Armaturen DP 34 Pneumatic Actuator

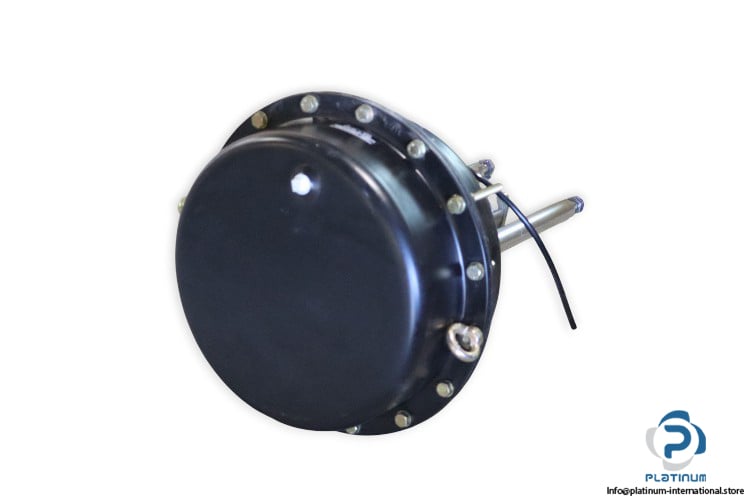

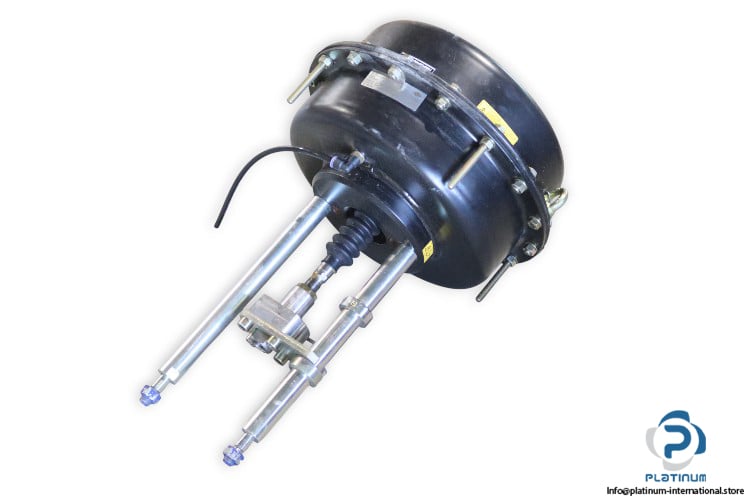

The ARI-Armaturen DP 34 is a pneumatic diaphragm actuator designed for precise and reliable valve actuation using compressed air. It features a robust DP-actuator design with extended stem on air failure and a stable two-column mounting configuration for industrial control applications.
Manufacturer: ARI-Armaturen
Type: Pneumatic Actuator
Model: DP 34

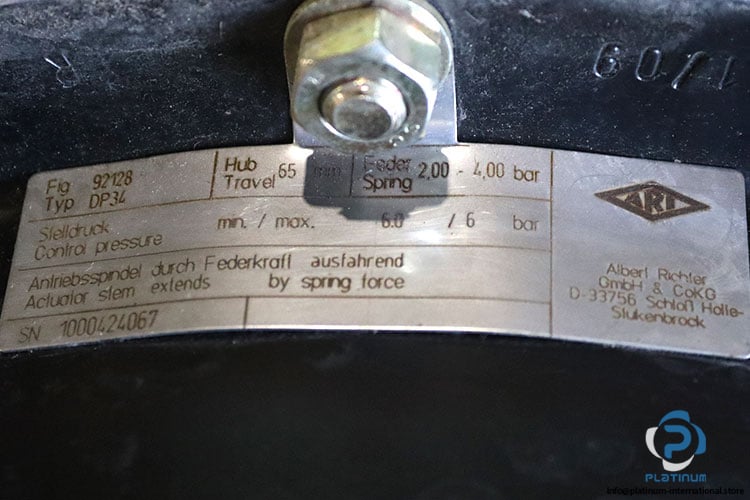

Code: 92128
Serial No.: 1000424067
| Fluid | Air |
| Actuator Type | DP-Actuator |
| Fail-Safe Action | Extended Stem On Air Failure |
| Mounting | 2-Column Mounting |
| Stroke (Hub / Travel) | 65 mm |
| Outer Diameter | 397 mm |
| Height | 458 mm |
| Effective Diaphragm Area | 800 cm² |
| Spring Range | 2.00 “ 4.00 bar |
| Air Supply Pressure | Maximum 6 bar |
| Feedback Box | Open / Closed Indication |
| Connection | 3/8 in |
