Asahi Ucfk 202 Three-Bolt Flange Housing Unit
New
In stock5 unitsReady to ship
Three-Bolt Flange Housing Unit
The Asahi UCFK202 Three-Bolt Flange Housing Unit is designed for industrial systems requiring precision and durability. Featuring the FK 202 housing and UC 202 bearing, it delivers consistent performance and stability.15202AsahibearingboreComponentdiameterdurableFKFlangeHousingIndustriallockingmmPrecisionscrewSetThree-BoltUCUCFK202Unit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

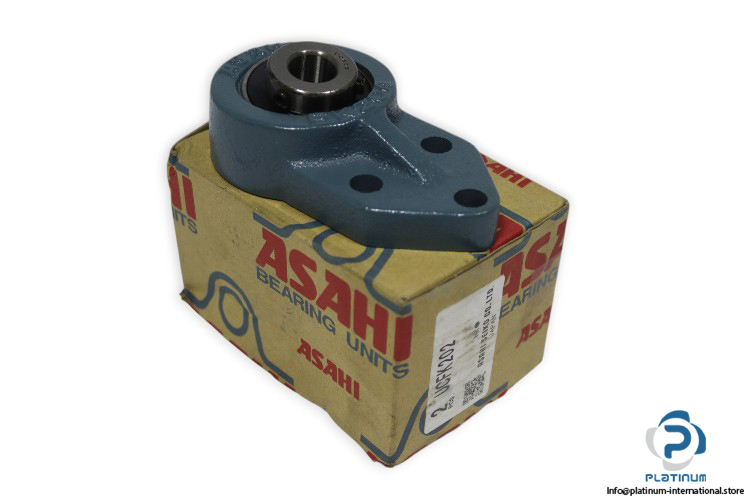

Asahi UCFK202 Three-Bolt Flange Housing Unit
The Asahi UCFK202 Three-Bolt Flange Housing Unit is a reliable and precision-engineered solution designed for industrial applications. Built with the FK 202 housing and UC 202 bearing, this unit ensures stability and consistent performance in demanding environments.
Engineered for precision and durability, the Asahi UCFK202 Three-Bolt Flange Housing Unit is ideal for industrial systems requiring reliable performance and alignment.

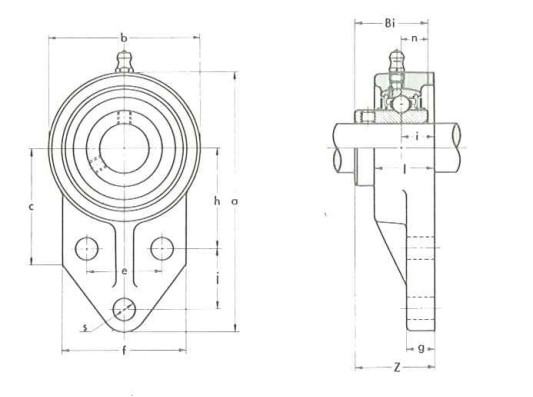

| Bearing No. | UC 202 |

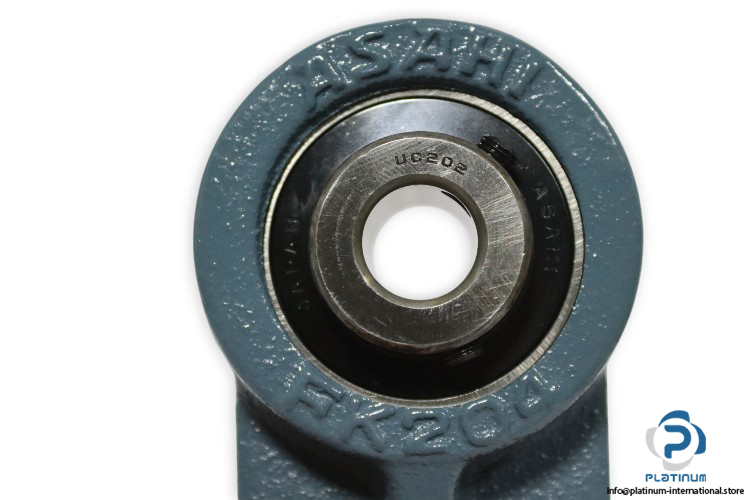

| Housing No. | FK 202 |
| Bore Diameter | 15 mm |
| Overall Length | 62 mm |
| Overall Height | 110 mm |
| Width of Inner Ring | 31 mm |
| h | 42 mm |
| e | 32 mm |
| i | 27 mm |
| c | 52 mm |
| Overall Unit Width | 33.3 mm |
| Locking Device | Set Screw |
| Item Per Set | 2 |
