Asco 437512790270 Pneumatic Cylinder
New
In stock1 unitReady to ship
Pneumatic Cylinder
The ASCO 437512790270 Pneumatic Cylinder features a 125 mm bore and 270 mm stroke, double-acting operation, and 10 bar pressure capacity for reliable motion in industrial automation systems.10125x270437512790270ActingActuatorAirAscoAutomationbarCylinderDoubleg1/2IndustrialLinearMotionPneumatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

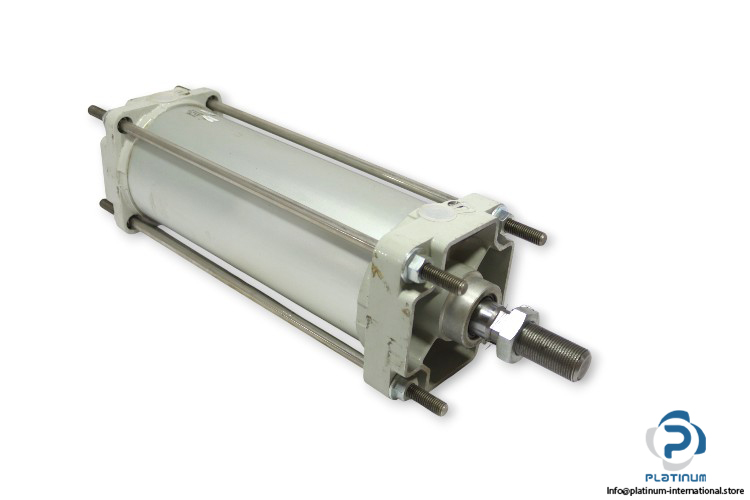

ASCO 437512790270 Pneumatic Cylinder
The ASCO 437512790270 Pneumatic Cylinder is built for reliable performance in industrial automation systems. It provides precise linear motion with a 125 mm bore and 270 mm stroke, designed for efficient operation and durability under high pressure.
Manufacturer: ASCO
Type: Pneumatic Cylinder
Model: 437512790270
RER Code: 3E1W
| Media | Compressed Air |
| Bore Diameter | 125 mm |
| Stroke | 270 mm |
| Bore x Stroke | 125 x 270 mm |
| Rod Diameter | 30 mm |
| Frame Dimensions | 135 x 450 mm |
| Pneumatic Connection | G 1/2 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Temperature Range | -10 to 70 °C |
