Asco EGE290A038 Pneumatically Operated Angle Seat Valve
New
In stock1 unitReady to ship
Pneumatically Operated Angle Seat Valve
The ASCO JOUCOMATIC EGE290A038 is a 25 millimeter angle seat valve with pneumatic pilot actuator, normally closed spring return design, and pressure range up to 10 bar for reliable flow control.10290ActuatorAngleAscobarClosedconnectionControlEGE290A038flowG1IndustrialJoucomaticNormallyPilotPneumaticSeatSeriesSM2Valve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

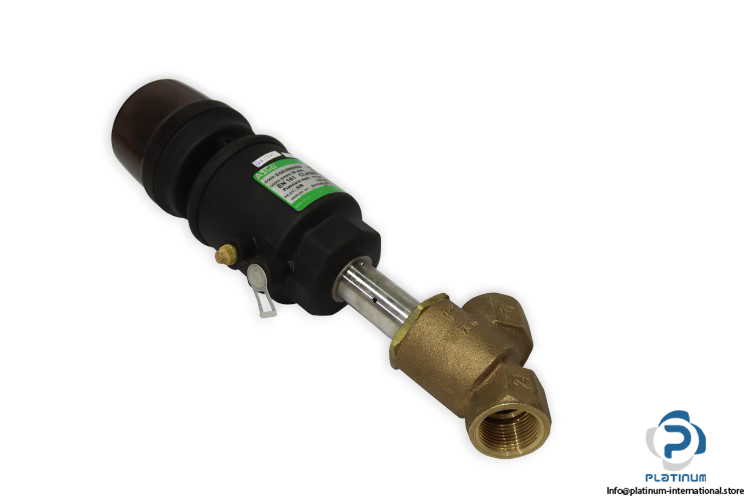

ASCO JOUCOMATIC EGE290A038 Pneumatically Operated Angle Seat Valve
The ASCO JOUCOMATIC EGE290A038 Pneumatically Operated Angle Seat Valve is designed for efficient flow control in industrial systems. Featuring a robust construction and spring return design, it ensures reliable operation, long service life, and consistent performance under demanding conditions.

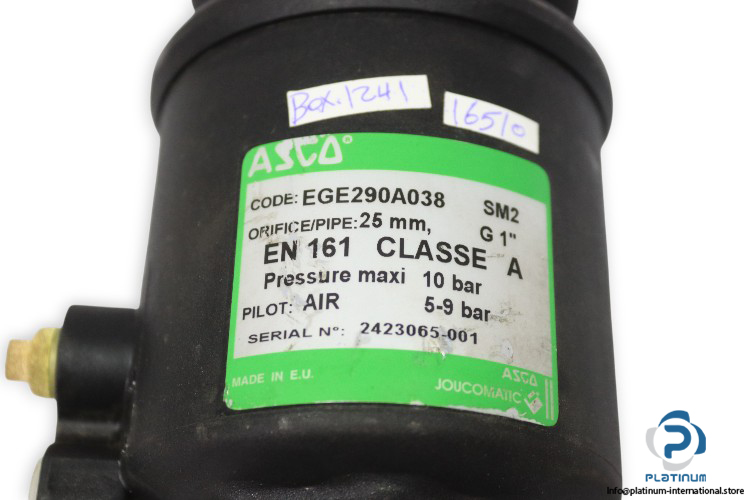

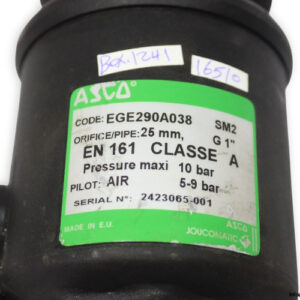

Manufacturer: ASCO JOUCOMATIC
Type: Pneumatically Operated Angle Seat Valve
Model: EGE290A038
Serial Number: 2423065-001
Series: 290, SM2
| Signaling Box | SM2 with mechanical contacts |
| Valve Type | Angle seat valve, normally closed (spring return) |
| Operation | Pneumatic pilot actuator |
| Body Material | Bronze or stainless steel |
| Pilot Port Insert | Brass |
| Orifice | 25 millimeters |
| Pipe Size | G 1 |
| EN Classification | EN 161 Class A |
| Pressure Maximum | 10 bar |
| Pilot Pressure Range | 5 to 9 bar (air) |
| Pilot Medium | Air |
| Temperature Range | minus 10 to plus 60 degree Celsius |
