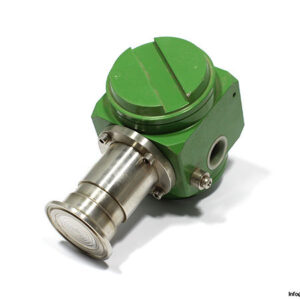

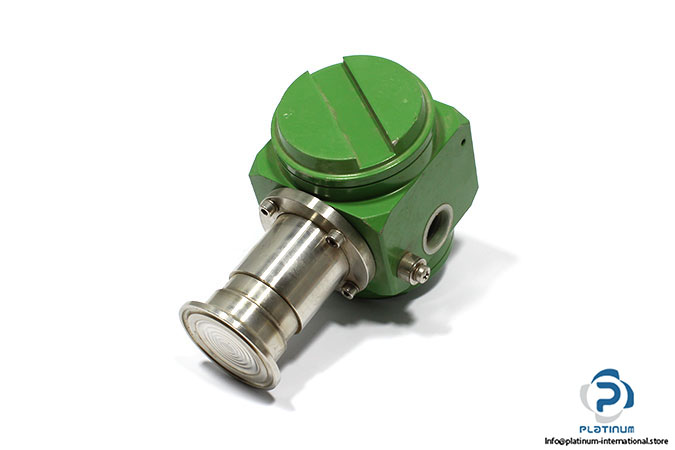

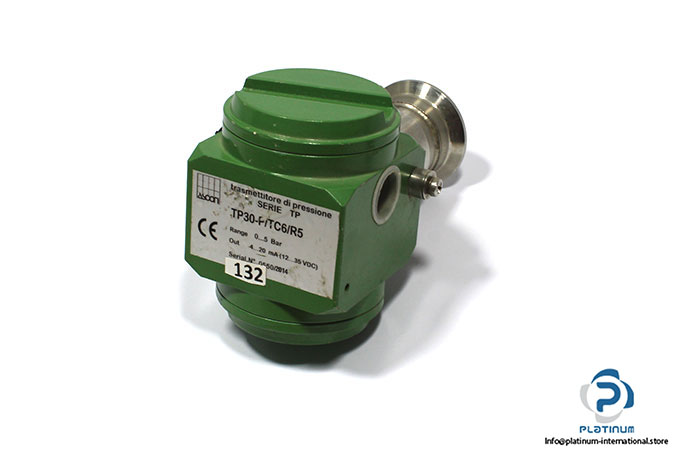

Ascon TP30-P/TC6/R5 Pressure Transmitter

Manufacturer: Ascon

Type: Pressure Transmitter

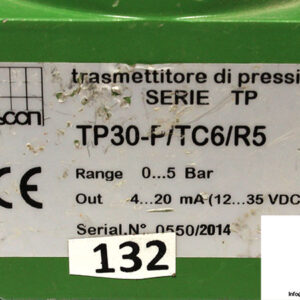

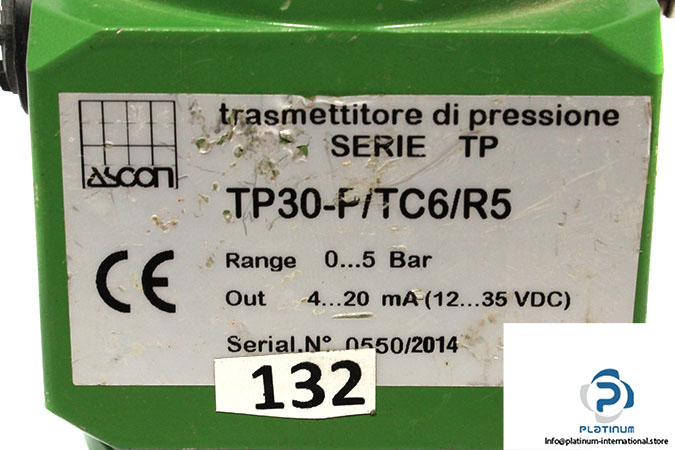

Model: TP30-P/TC6/R5

The TP series transmitters use a piezoresistive or ceramic type strain gauge sensor. The measuring principle involves 4 strain gauges (diffused on a silicon chip or deposited on a ceramic membrane) which form the sides of a Wheatstone bridge. Each pressure variation is detected by the deformation of the sensor and results in an output voltage from the bridge proportional to the applied pressure. A built-in electronic amplifying circuit converts the voltage into a standard 4…20 mA signal. The piezoresistive transmitters have an AISI 316 membrane in contact with the process fluid; between the membrane

Measuring Range: 0 … 5 bar

Power Supply: 12 … 35 VDC

Output: 4 … 20 mA
