ASEPTIC TECHNOLOGIES CVF005-LEU L1 ROBOT LINE

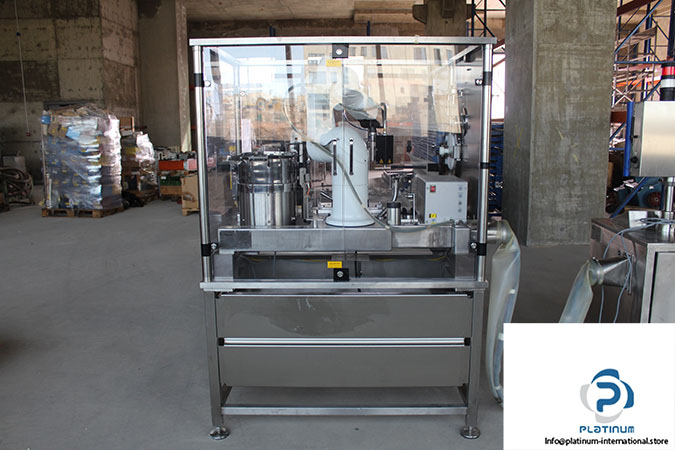

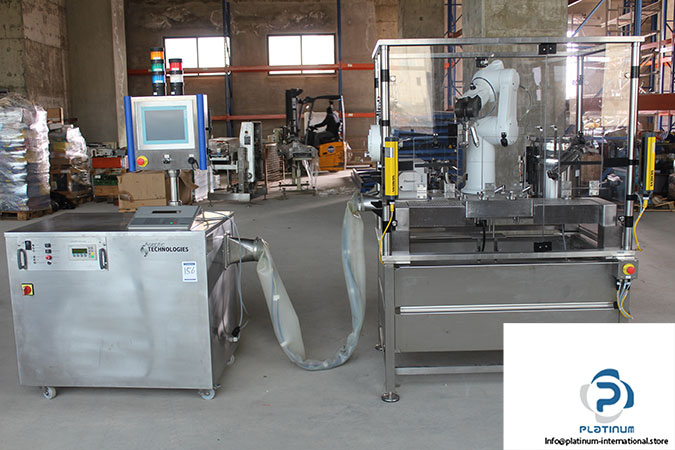

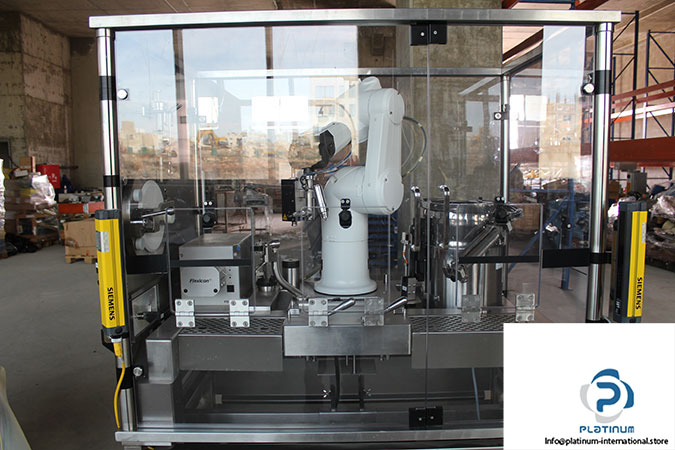

The CVF005-LEU L1 from Aseptic Technologies is an advanced robotic vial filling system engineered for high-precision aseptic environments. Integrated with industry-grade components, it ensures high throughput, exceptional reliability, and seamless compatibility with RABS, Isolators, and AT-Box„¢ installations.

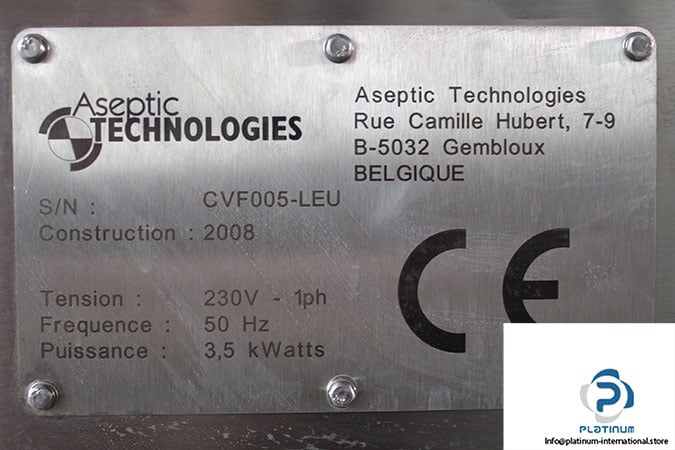

Manufacturer: Aseptic Technologies
Type: L1 Robot Line
Model: CVF005-LEU L1
Integrated Components
Weigh Cell

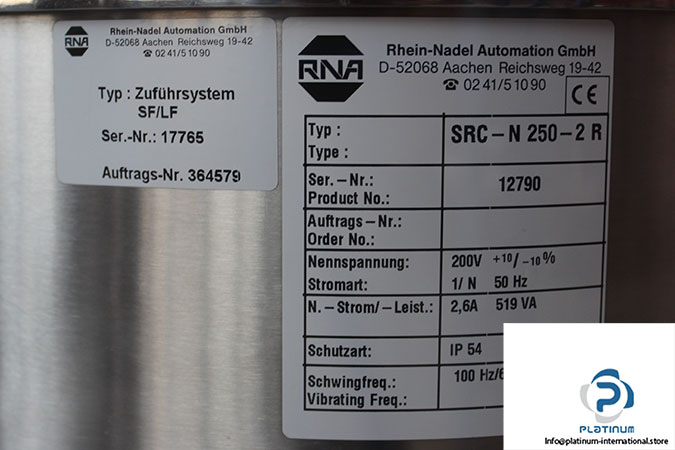

Vibratory Feeders

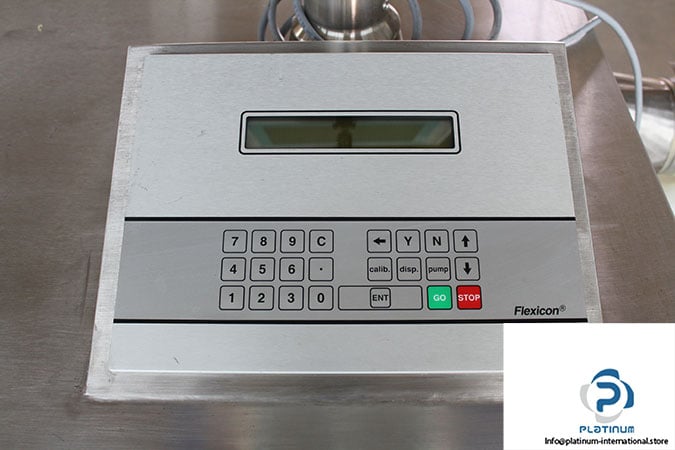

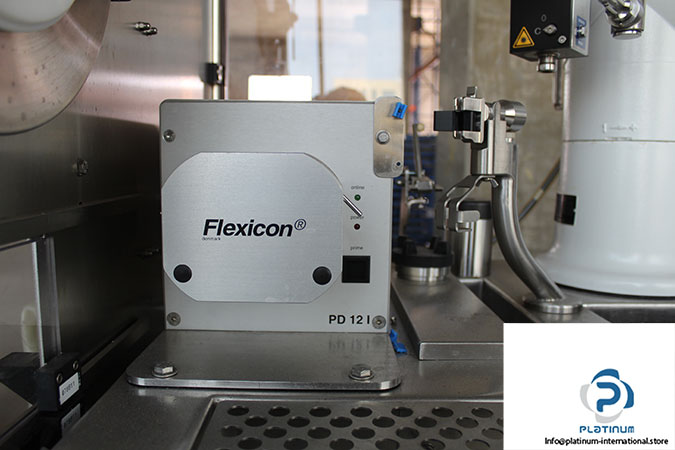

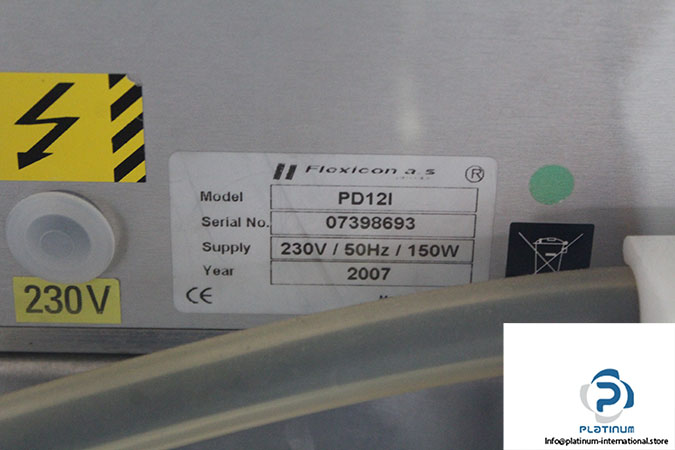

Pump

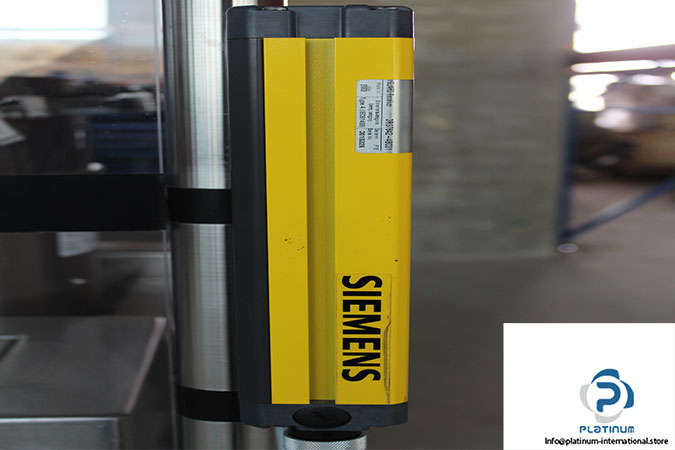

Safety Light Curtains

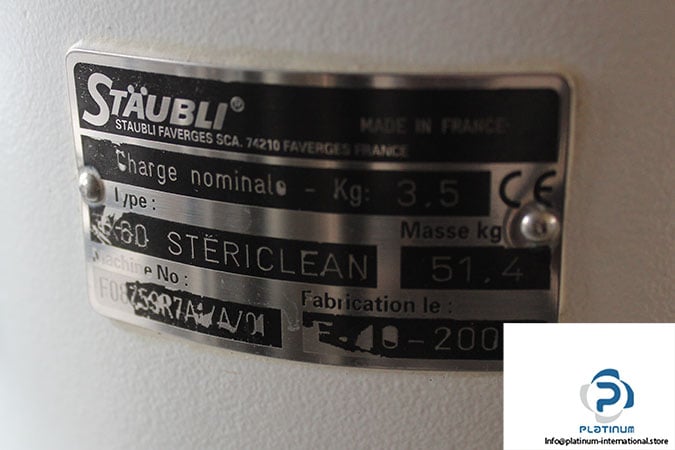

Robot Arm

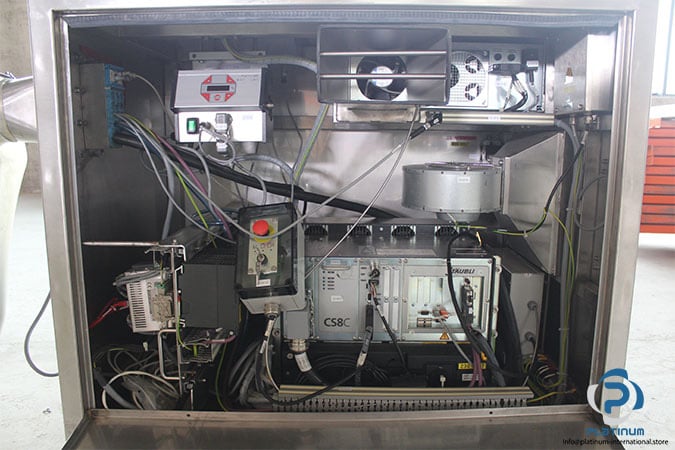

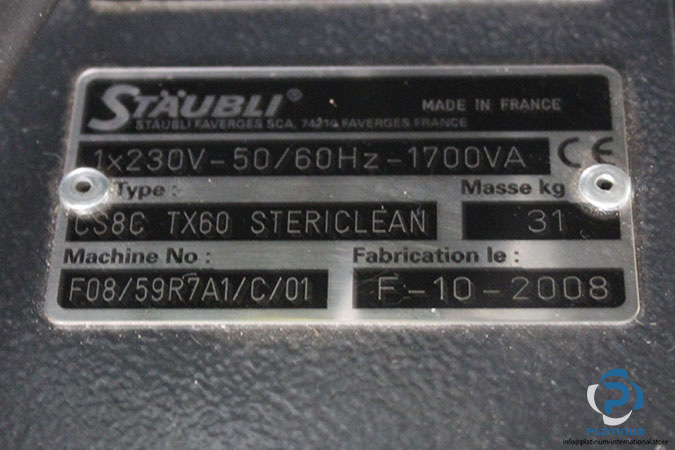

Robot Controller

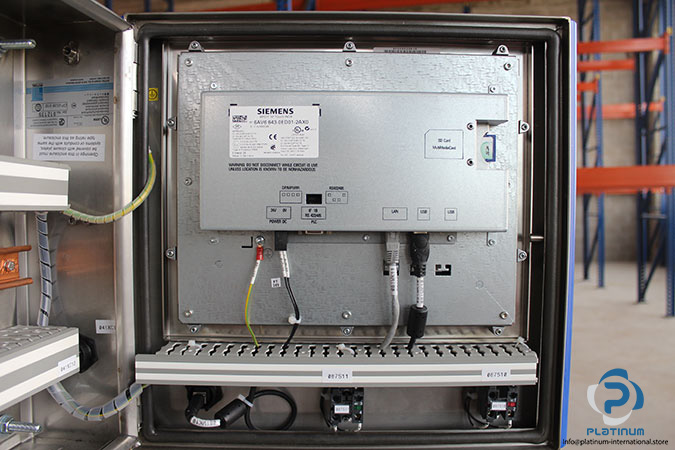

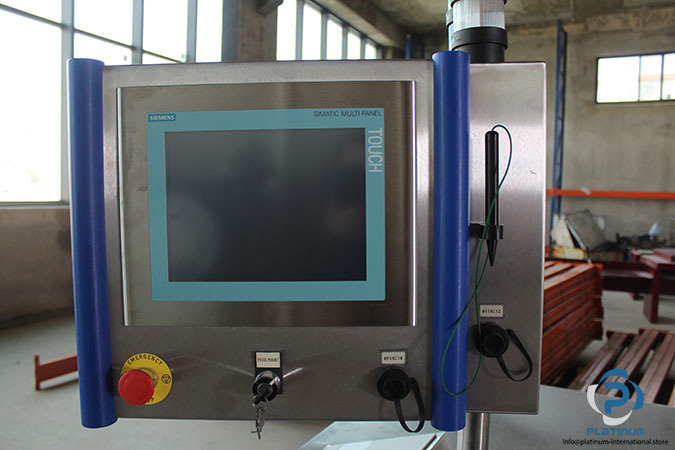

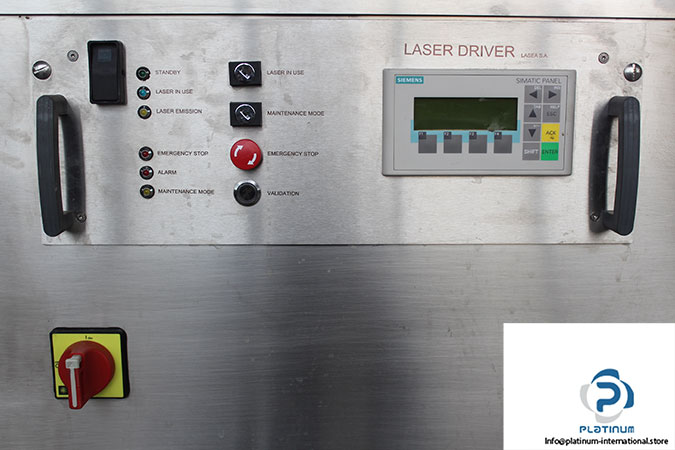

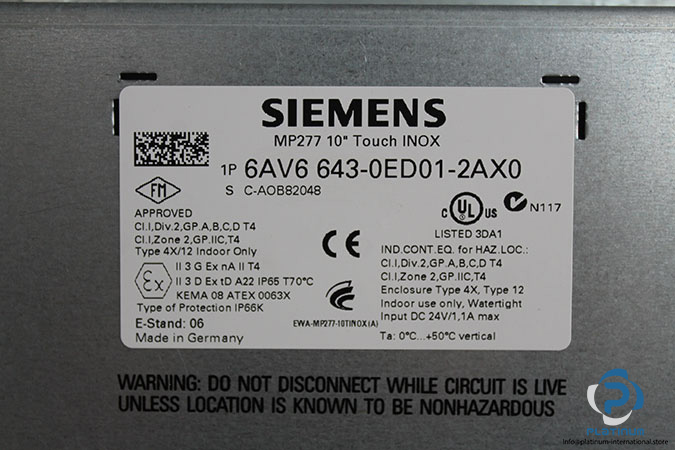

HMI Panel

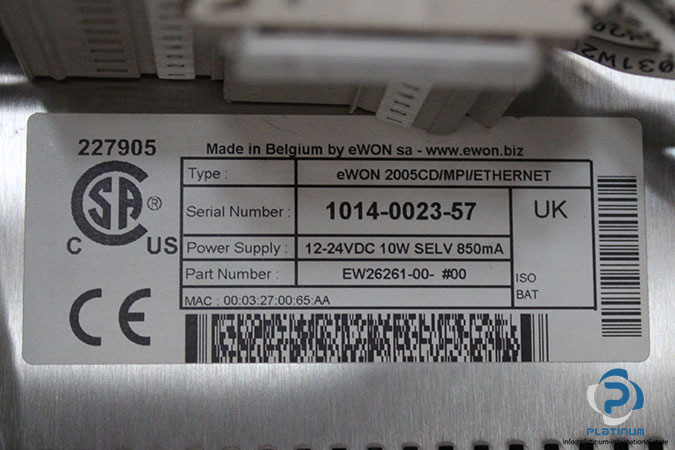

Industrial Gateway
Feeding System
| Capacity | Up to 600 Vials/Hour |
| Vial Format | All AT-Closed® Vial |

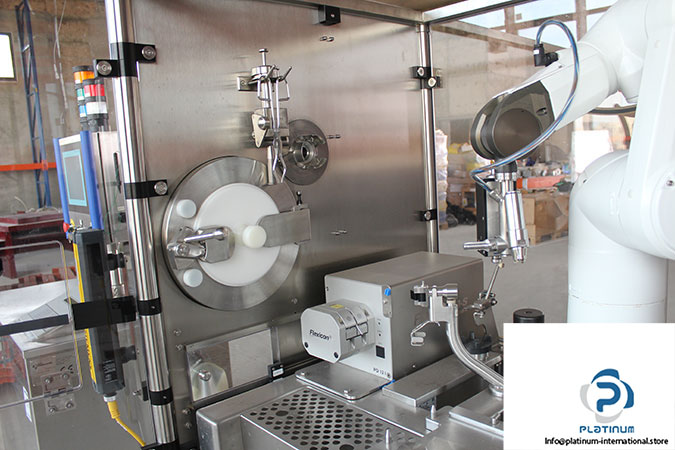

| Pump | Peristaltic |
| Installation | RABS, Isolator, AT-Box„¢ |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Power | 3.5 kW |

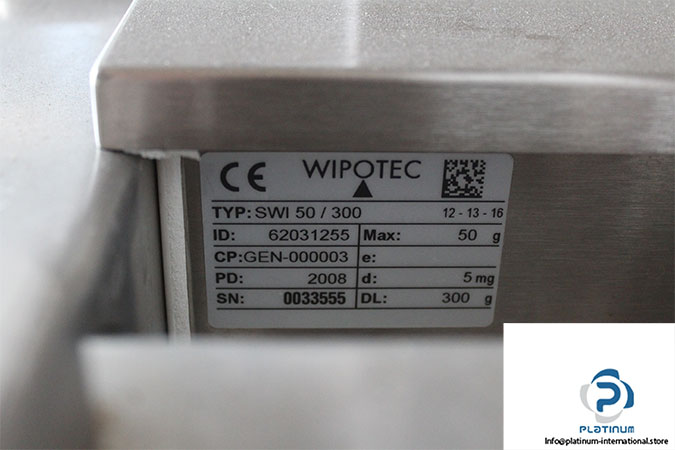

| Part No. | 62031255 |
| Max Weigh | 50 g |
| D | 5 mg | DL: 300 g |
| Magnet Type | WZAW 060 |
| Dimensions (Dia x H) | 290 x 215 mm |
| Protection | IP54 |
| Power Input | 519 VA |
| Current | 2.6 A |
| Supply Voltage | 230 V |
| Power | 150 W |

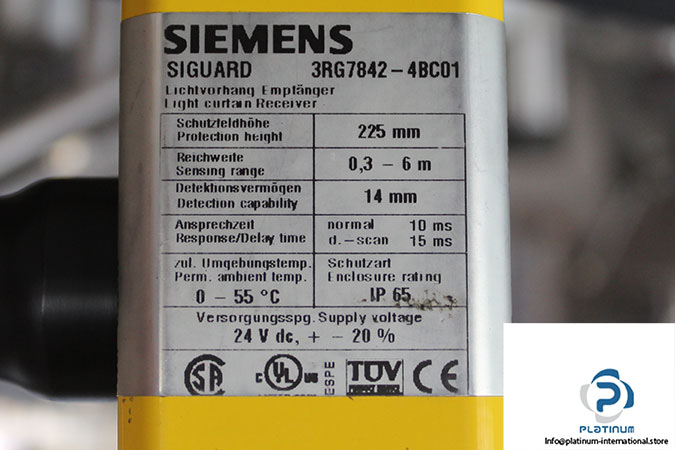

| Sensing Range | 0.3 “ 6.0 m |
| Detection | 14 mm |
| Protection | IP65 |

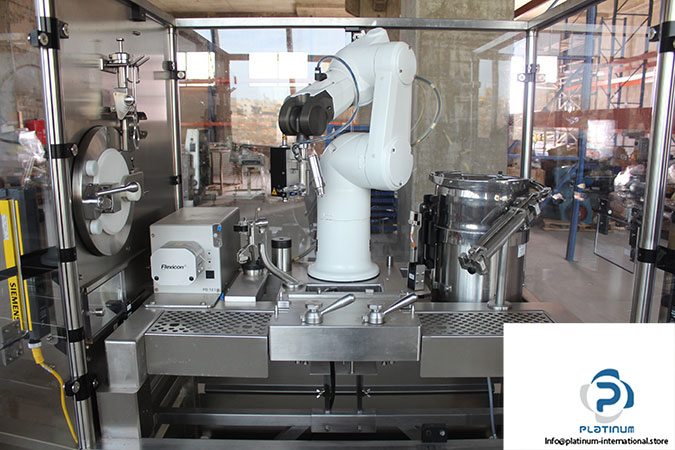

| Payload | 9 Kg |
| Reach | 670 mm |
| Repeatability | ±0.02 mm |
| Voltage | 230 V |
| Programming | VAL 3, PLC-IEC 61131-3 |

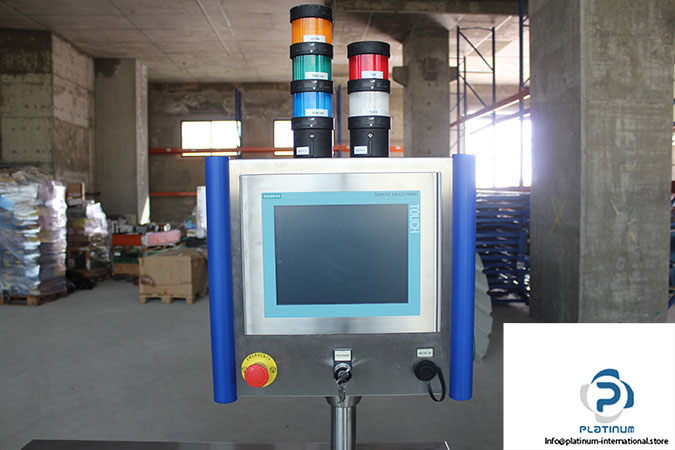

| Screen | 10.4" TFT, 65,536 colors |
| Power Supply | 12“24 VDC |
