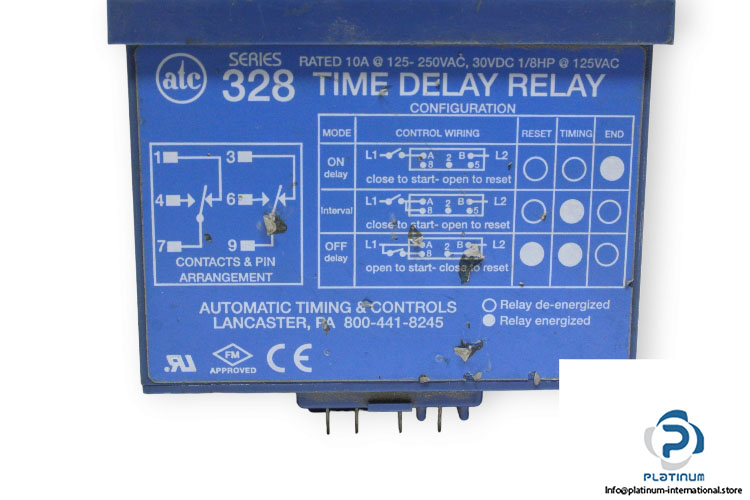

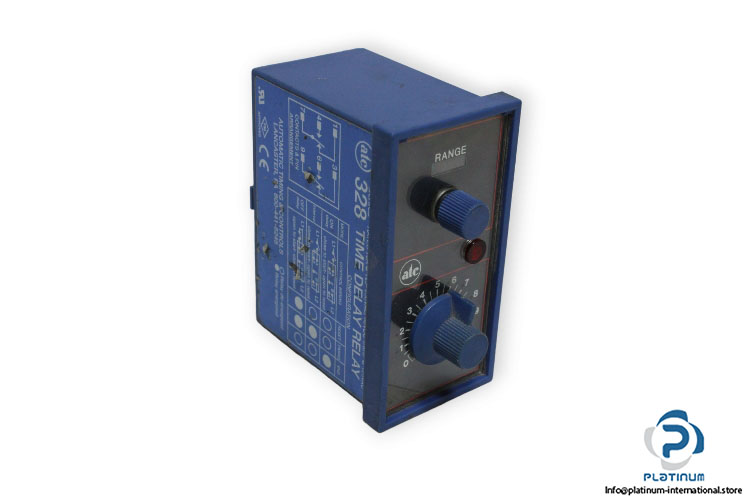

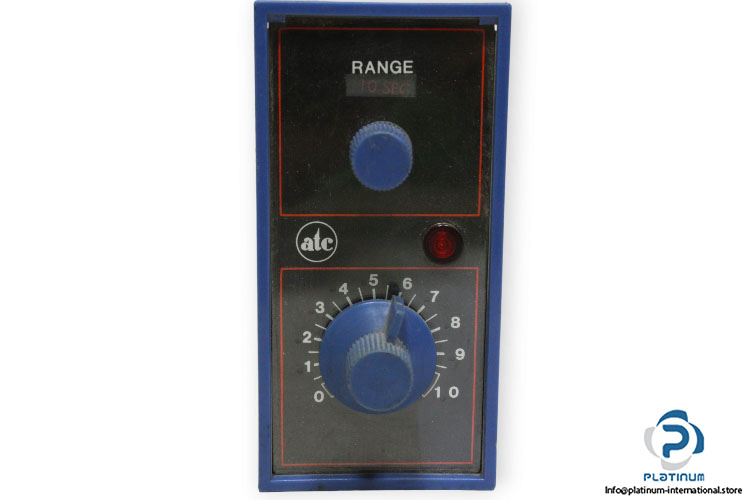

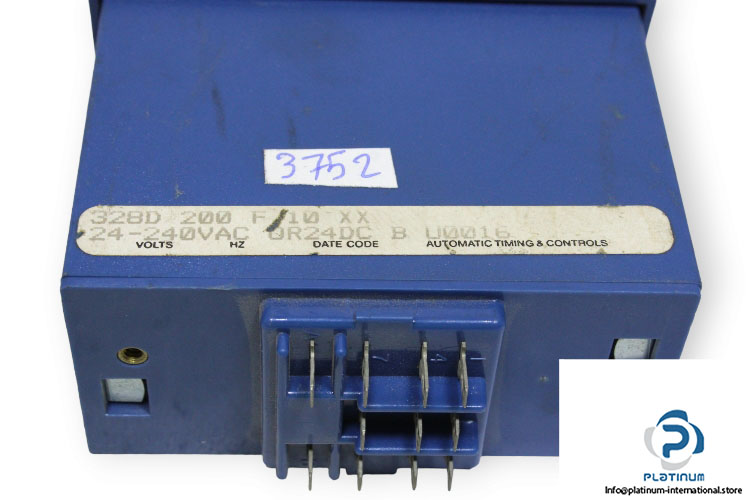

ATC 328D 200 F 10 XX U0016 Time Delay Relay

Manufacturer: Atc
Type: Time Delay Relay
Model: 328D200F10XX
Part No.: U0016
Series: 328D

Supply voltage: 24 … 240 V AC (50/60 Hz)/24 V DC
Output: 2 DPDT, Contact Rating: 10 A, 125 … 250 V AC/ 10 A ,30 V DC (Reset on power failure)
Indicator Timing: LED
Timing Modes: Off-Delay/Interval
Time range: 0 … 10s
Temperature range: -18 … 60°C
Housing: Plug-in design
Dimensions: 96.01 x 111 x 48.01 mm
